Chapter 7 Device Configuring Using EMS
7.3.3

Transport Stream Port Route Properties dialog

The Transport Stream Port Route Properties dialog displays the current status of a transport
stream routed to an output port.
To display the Transport Stream Port Route Properties dialog:
1. Select the TS port route icon in the Multiplex & Decoding Output box on the Device
Explorer tab.
2. Click Properties on the EMS toolbar.
The information provided by the Transport Stream Port Route Properties dialog includes the
following:
Enabled – Enables (Yes/No) the output port operation.
■
Input Port – Displays the multiplex input port name.
■
Transport Stream ID – Displays the transport stream ID number.
■
Output Port – Displays the stream output port name.
■
© 2012 Harmonic Inc.

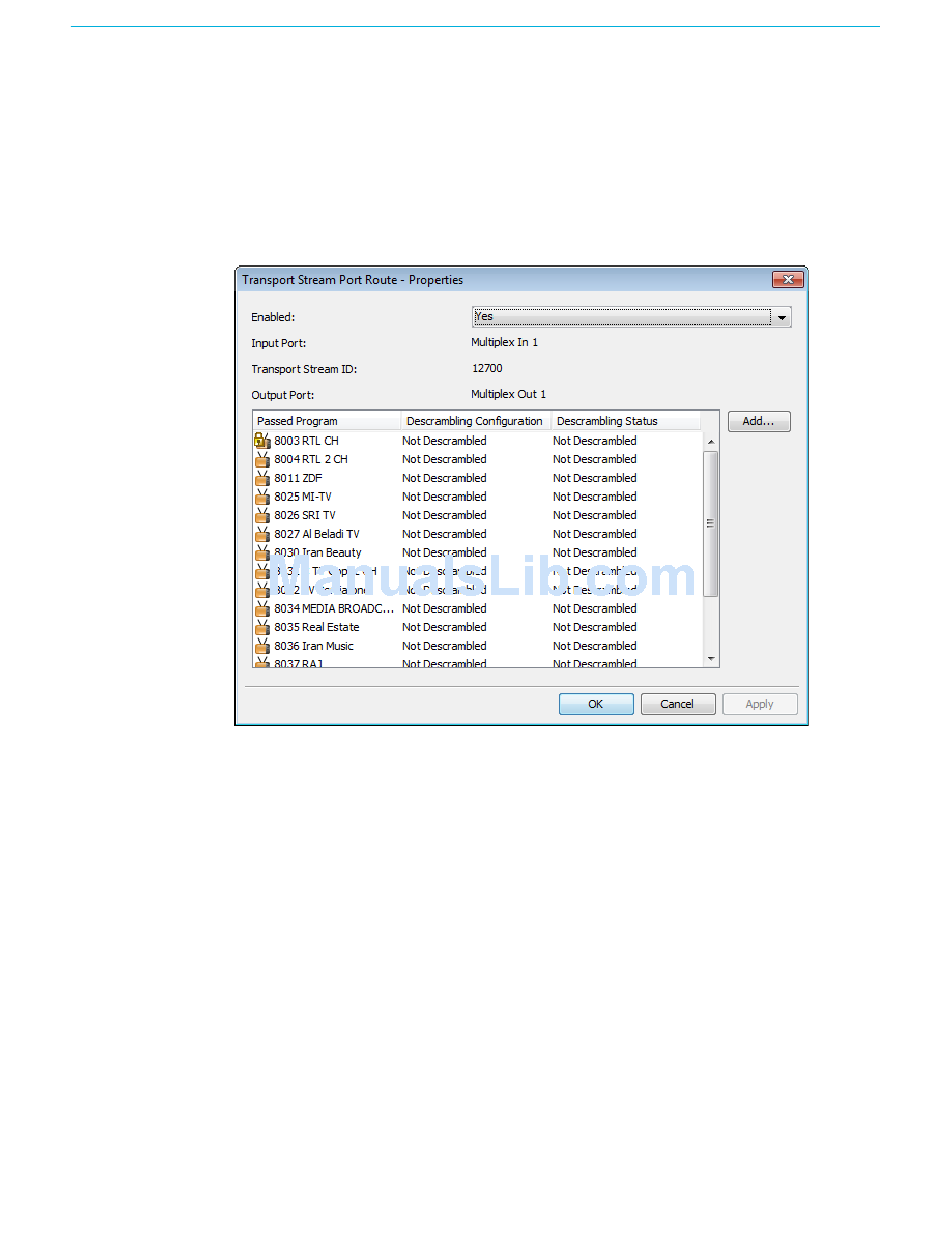

Figure 7–11: Transport Stream Port Route Properties dialog
106
Multiplex & Decoding Outputs
ProView 7000 v.2.6, Rev. E
