Chapter 7 Device Configuring Using EMS
Table 7–3: TS Port Output Port Context Menu
Command
Disable/
Remove Selected
Remove All
Refresh Transport Stream
Port Route
Properties
7.3.2

Multiplex Output Properties

The Multiplex Output Port Properties dialog displays the current status of the multiplex
output stream features and enables setting up the editable ones.
To display the Multiplex Output Stream Properties dialog:
1. Select the Multiplex Output icon from the Multiplex & Decoding Output box on the Device

Explorer tab.

2. Click Properties on the EMS toolbar.

The information provided by the Multiplex Output Properties dialog includes the following:
Enabled – Enables (Yes/No) the multiplex output operation.
■
Transport Stream ID – Displays the transport-stream's ID number.
■
Table Extraction – Select PSI/SI for DVB or PSI for MPEG. The default is PSI/SI.
■
Configured Bitrate – Displays the calculated bitrate of the output stream (in bps).
■
Actual Bitrate – Displays the actual bitrate of the output stream (in bps), not including
■
NULL stuffing.
© 2012 Harmonic Inc.
A dynamic command, changing according to the operational status of the
Enable
TS Output Port.
Removes the selected element.
Displays the following sub-menu items:
Remove All Output Programs on Port
■
Remove All Output Programs on Device
■
Remove All Output Unreferenced PIDs on Port
■
Updates the Transport Stream Port Route.
Displays the marked element properties dialog. For details, see
7.3 Multiplex & Decoding

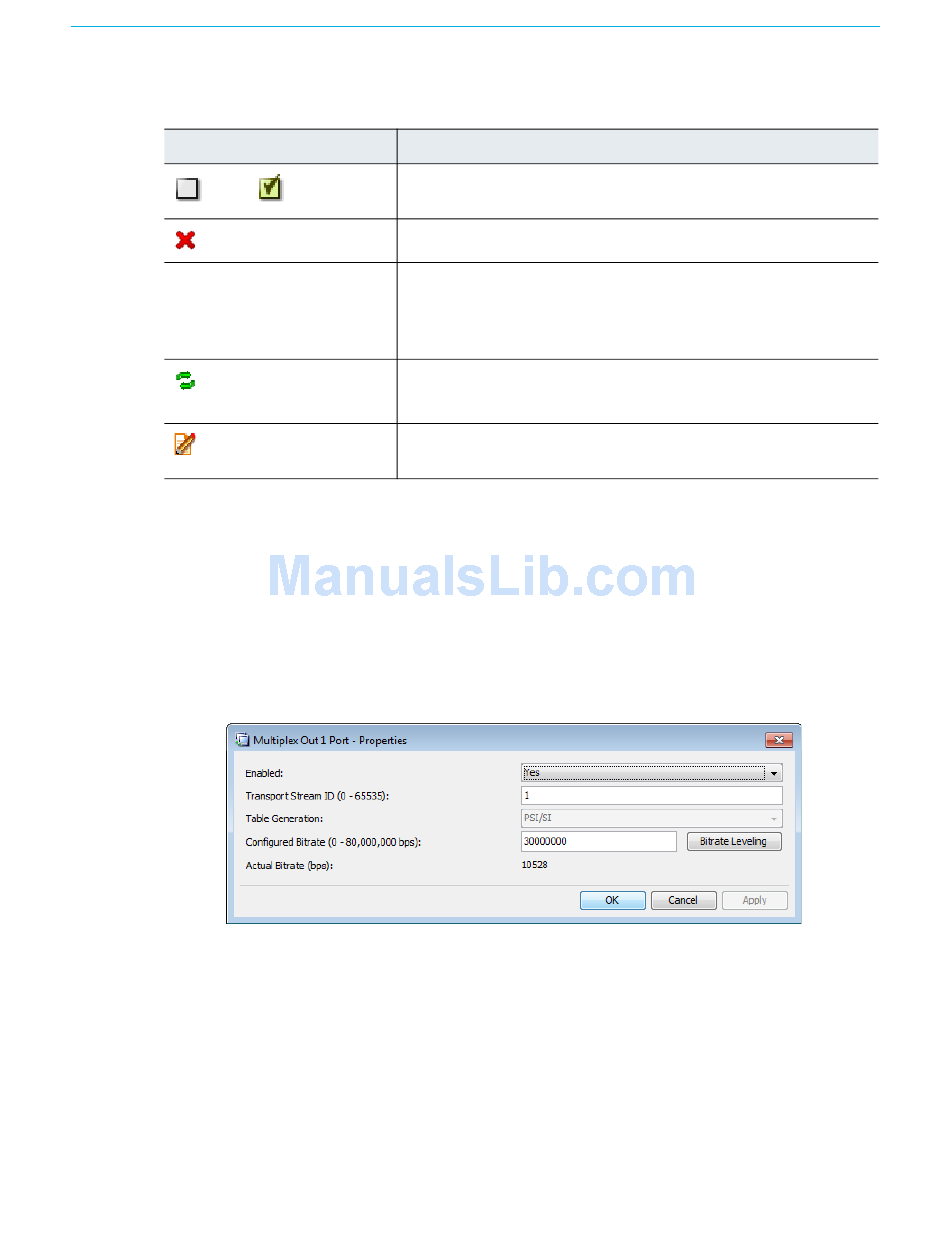

Figure 7–10: Multiplex Out 1 Port - Properties dialog
105
Multiplex & Decoding Outputs
Description
Outputs.
