Chapter 7 Device Configuring Using EMS
7.6.1.1 Transport Stream Cross Connect (Stream Pass Through)
You can cross connect transport streams between different multiplex inputs and outputs and
optionally remap selected PIDs.
To create a transport stream cross connection:
1. Drag a multiplex from the Multiplex Input box and drop it onto a multiplex out or a
decoder in the Multiplex & Decoding Output box.
A Cross-Connect editor dialog displays, allowing setting up the parameters for the routed
element.
2. Click Create to create the stream cross-connect.
Remapping PIDs
Prerequisites:
DSR license
■
Transport stream cross connection
■
To remap PIDs:
1. Right-click Transport Stream Port Route in the Multiplex & Decoding Output box.
2. Select Properties.
3. Select the PID Remapping tab.
4. Enter the Input PID and the output PID.
5. Click Submit.
© 2012 Harmonic Inc.

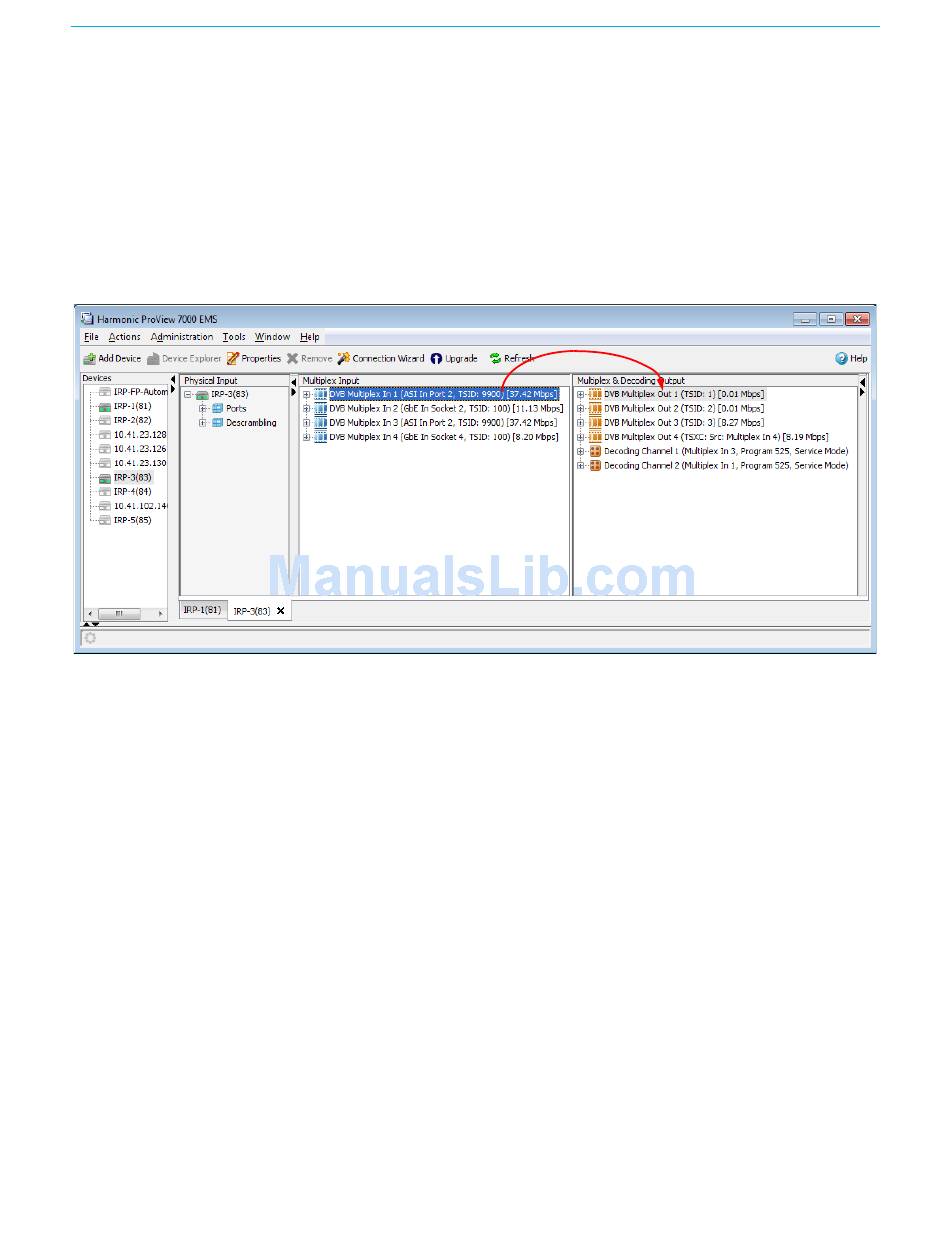

Figure 7–26: TS Cross Connect
130
Cross Connections
