7.1.4.2 CAM Slot Properties
Use the CAM Slot properties dialog to monitor and manage individual CAM slots.
To display the properties dialog for a CAM slot:
1. Select a CAM slot in the Physical Input box on the Device Explorer tab.
2. Click Properties on the EMS toolbar.
The CAM Slot Properties dialog includes the following:
Mapped to Input Multiplex Port – Displays the current association status of the CAM slot
■
and enables you to re-associate the CAM slot to an available multiplex input. You can only
re-associate the CAM when no services are configured for the CAM.
CAM Vendor Card – Provides the following information for the CAM card in the slot:
■
Vendor name
❑
Number of descrambled programs
❑
Number of descrambled elementary streams
❑
Descrambled Programs – Displays the program PIDs descrambled by the CAM.
■
CAM Automatic Recovery Policy – You can configure the ProView 7000™ to reset the CAM
■
when one of the following alarms is raised:
CAM Descrambling Failure – Enabled by default.
❑
CAM Processing Failure – Enabled by default.
❑
Packet Loss after CAM – Disabled by default.
❑
Advanced
■
CAM De-Jittering – Enable or disable.
❑
© 2012 Harmonic Inc.

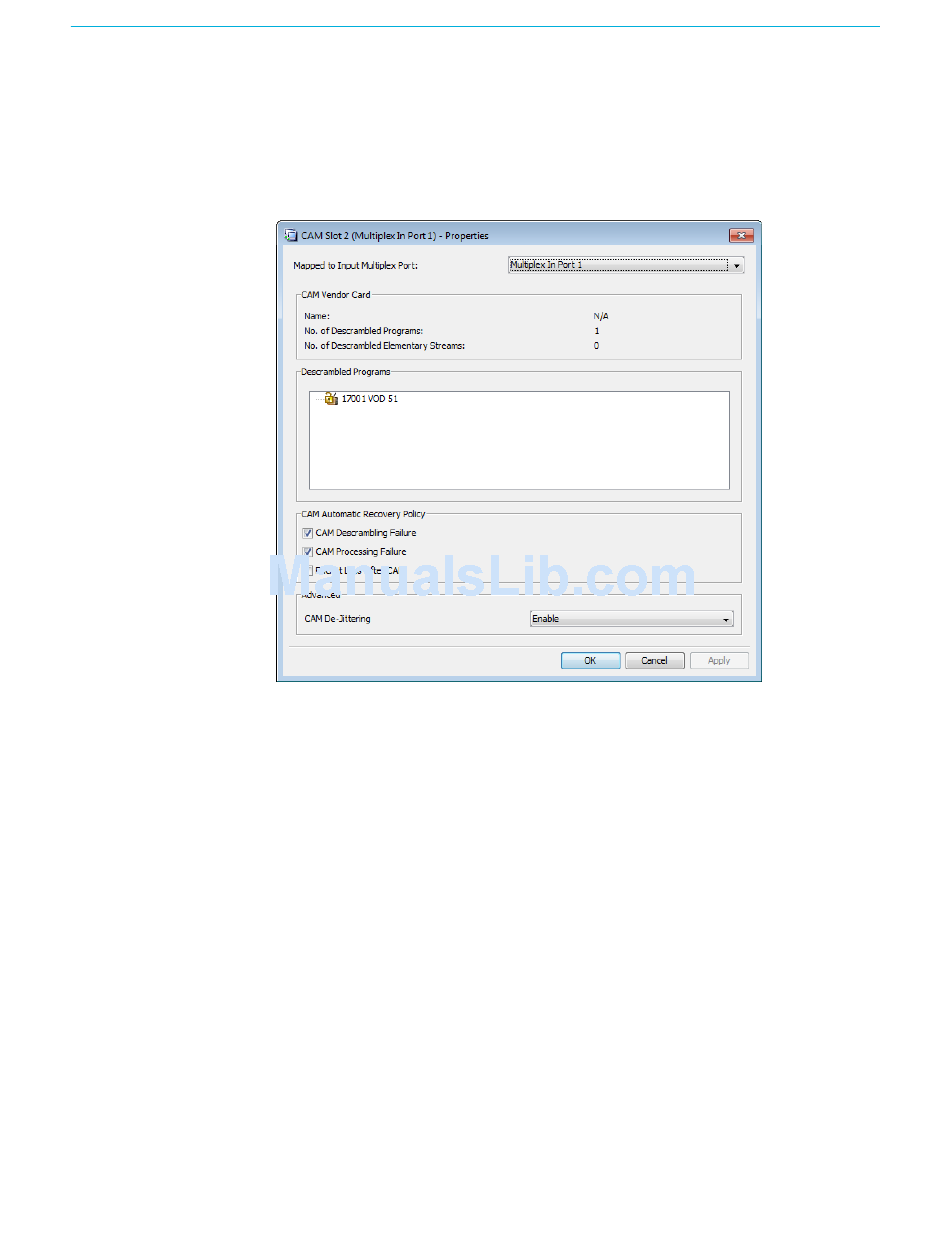

Figure 7–7: CAM Slot Properties dialog
