CHASSIS & HOOD

SEAT AND FUEL TANK

IQ Fuel Tank Removal

1. Remove the seat and seat base.
2. Drain any fuel from the fuel tank.
3. Remove the console.
4. Bleed the pressure from the fuel rail if applicable. See "Fuel
Rail Bleeding" on page 4.20.

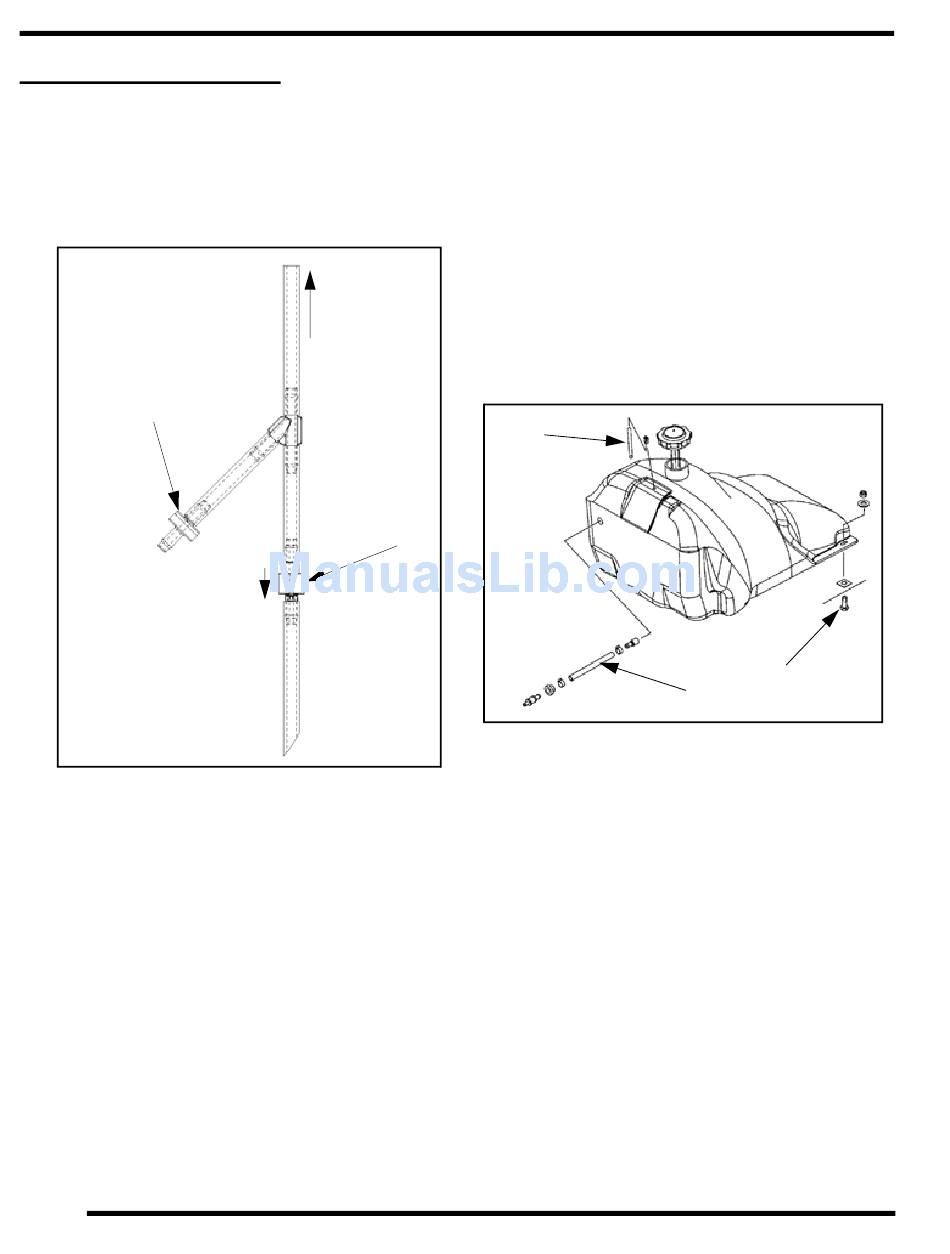

Words "VAC" should appear on side
of valve facing the "Y" fitting
5. Remove the fuel lines from the ridged fuel lines using the
fuel line removal tool (PS-47152).
6. Remove the two fasteners (E) that hold the fuel tank (F)
onto the chassis.
7. Carefully lift the rear of the fuel tank and slide the fuel tank
back so that you can reach the fuel pump harness, and
disconnect the harness.
8. Disconnect the fuel tank vent line (J) at the fitting located
at the top of the tank.
9. Remove the fuel tank from the chassis.
10.6

IQ Fuel Tank Installation

1.
2.
3.
4.
5.
To vent fitting on top
6.
left of fuel tank
7.
8.

Edge Fuel Tank Removal/Installation

Arrow should be facing
outward in the orientation
shown
1.
2.
3.
4.
5.
6.
7.
Replace the vent line (J) at the fitting located at the top of
the tank.
Lift the rear of the fuel tank and carefully slide the tank far
enough forward to assemble the fuel lines to the fuel pump.
Make sure that the fuel tank vent assembly will not be
pinched.
Slide the fuel tank into place and place the washers and
fasteners (E) on that hold the fuel tank (F) to the chassis.
Replace the console.
Connect the tail light if applicable.
Place seat into position.
Replace seat fasteners.
2
Remove any fuel that may be in the fuel tank.
Remove the seat.
Remove the fuel tank fasteners (1) at the rear of the fuel
tank.
Disconnect the fuel tank vent line (2).
Disconnect the fuel supply line (3).
Remove the fuel tank.
Install in reverse order.
1
3
