HOOD ASSEMBLY

Edge

Hood Removal/Installation

WARNING
Exhaust system temperatures can exceed 900_ F
(500_C). Serious burns may occur if this inspections
performed without allowing adequate time for the ex-
haust system to cool. Never perform this procedure
with the engine running.
1. Disconnect the items that are connected to the
speedometer.
2. Unplug the hood wiring harness connections.
3. Remove the hood retention cable(s) from hood.
4. Remove the hinge bolts.
5. Remove the hood.
6. Install in reverse order of removal.
3
2
1

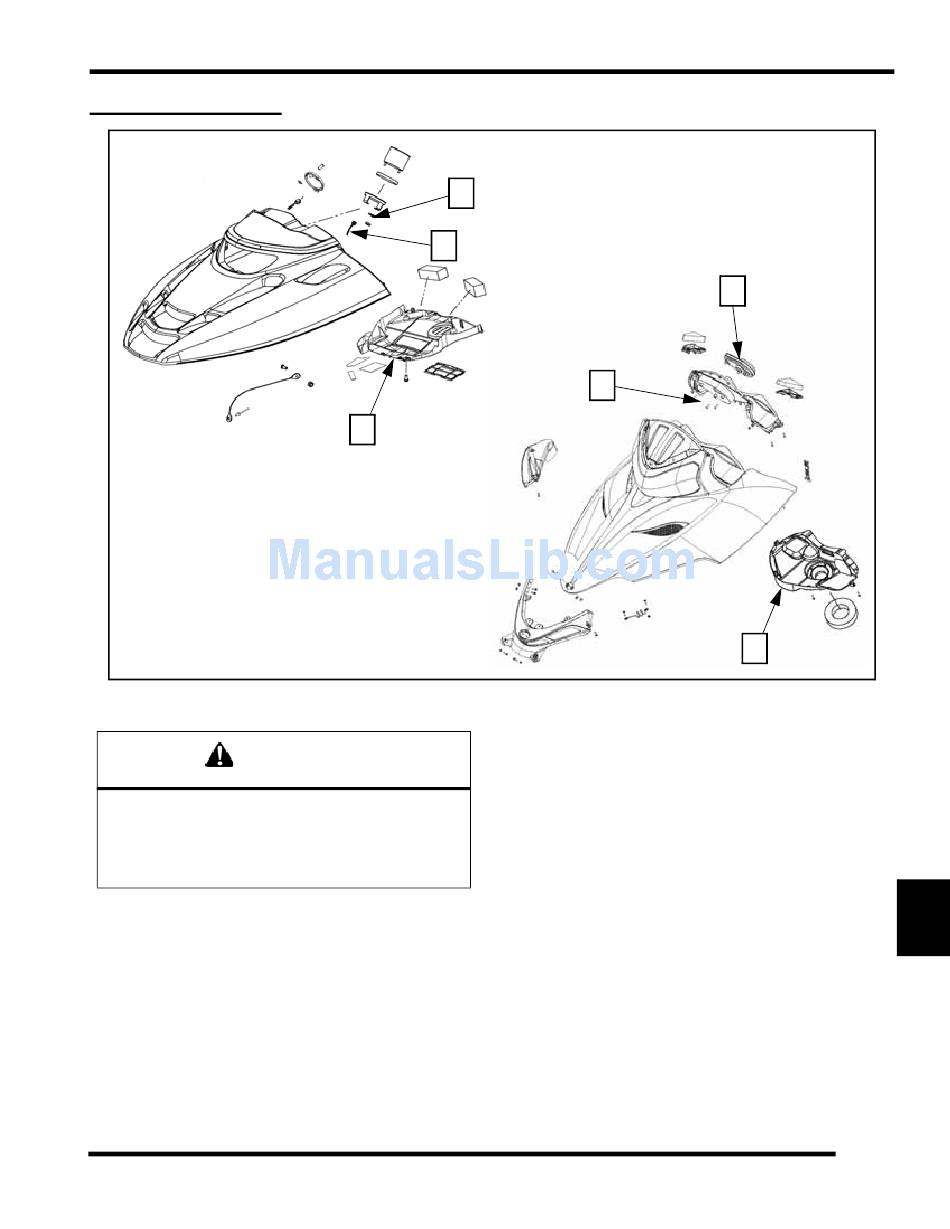

Edge Instrument Removal/Installation

1. Remove the plenum (1).
2. Disconnect the cable or connection (2) from the instrument.
3. Remove the bracket nuts (3).
4. Remove the instrument(s) from the hood.
5. Installation is the reverse of removal.

IQ MFD Removal/Installation

1. Remove the headlight cover assembly (1).
2. Remove the fasteners (2) that hold the MFD (3) into the
instrument pod and remove the MFD.
3. Assembly is reverse of installation.
CHASSIS & HOOD
3
2
1
IQ
10
10.3
