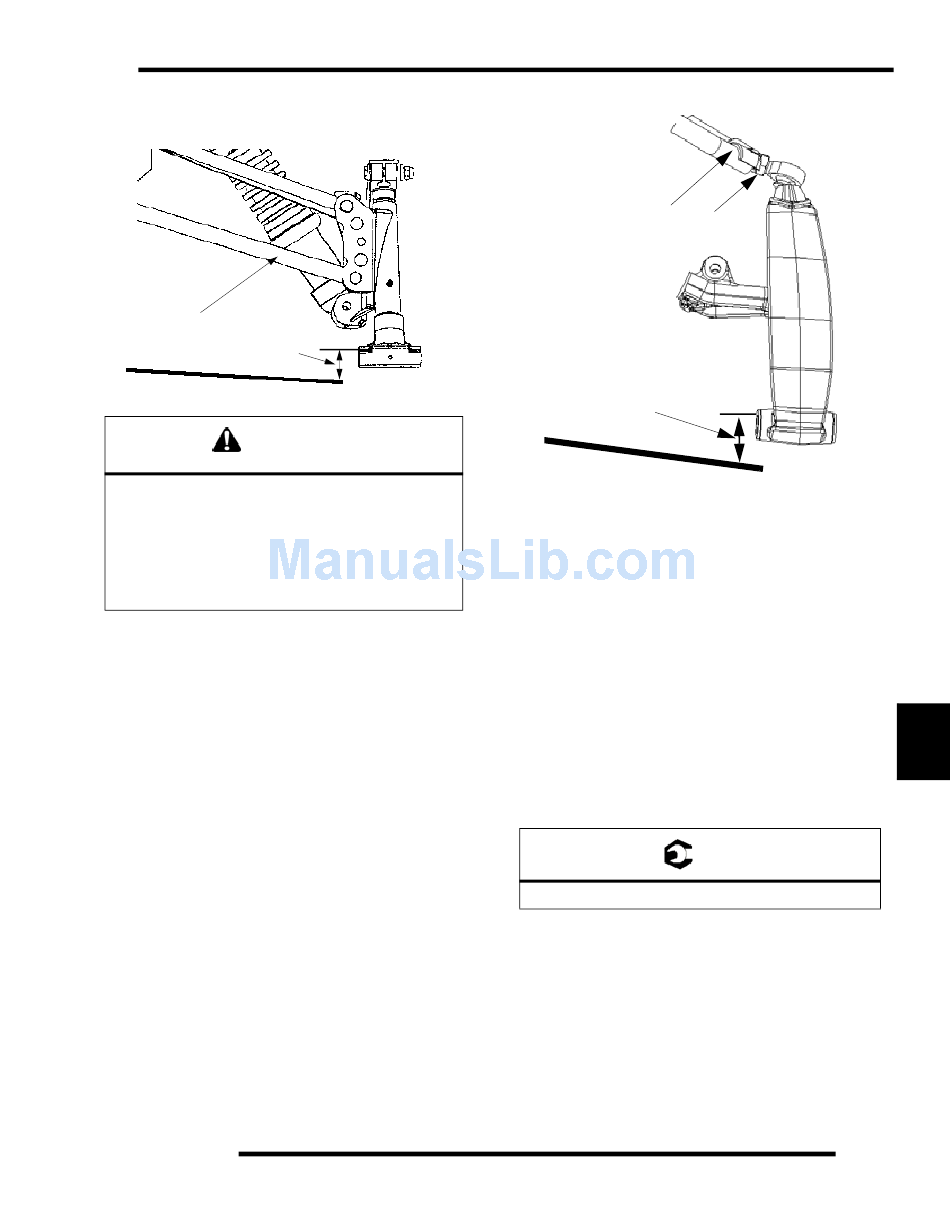

Edge/Edge LX/Edge RMK Camber
Adjustment
1
WARNING
After camber adjustment is complete, be sure to
measure set up width outlined in this chapter and
compare to model specifications listed. Do not
attempt to set suspension wider than the specified
maximum set up width. If set up width exceeds
maximum, adjust upper and lower radius rods
equally to maintain camber adjustment.
1. Raise the front of the machine so that the skis are off the
floor 3" (7.62cm). The shocks should be at full extension.
2. Remove the skis.
3. Determine which spindle requires the greatest amount of
correction by installing the alignment bar through one
spindle to the other spindle. Measure the distance (2) from
the top of the alignment bar to the top of the ski mount hole
with the bushing(s) removed. Record measurement.
4. Remove the alignment bar and install it to the opposite side.
Measure the distance (2) from the top of the alignment bar
to the top of the ski mount hole with the bushing(s)
removed. Record measurement
5. To adjust the camber, change the lower radius rod (1) length
until alignment bar measurement is within the specified
range for each spindle.
6. Once the specification is achieved, tighten all jam nut(s)
and torque them to 8-14 ft-lb (11-19 N-m).
7. Re-check the set up width and compare to specification.
2
FRONT SUSPENSION & STEERING

IQ/IQ LX/Switchback Camber Adjustment

3
1
1. Raise the front of the machine so that the skis are off the
floor 3" (7.62cm). The shocks should be at full extension
2. Remove the skis.
3. Determine which spindle requires the greatest amount of
correction by installing the alignment bar through one
spindle to the other spindle. Measure the distance (1) from
the top of the alignment bar to the top of the ski mount hole
with the bushing(s) removed. Record measurement.
4. Remove the alignment bar and install it to measure the
opposite side. Measure the distance (1) from the top of the
alignment bar to the top of the ski mount hole with the
bushing(s) removed. Record measurement
5. To adjust the camber, unlock the jam nut (2) and adjust the
camber with the adjuster nut (3) until alignment bar
measurement is within the specified range for each spindle.
6. Once the specification is achieved, torque the upper rod end
jam nut (2) to specification.
Rod End Jam Nut Torque: 45 ft-lb (61 N-m)
7. Re-check the toe alignment after changing the camber
settings.
2
= T
8.17
