BATTERY & ELECTRICAL SYSTEMS

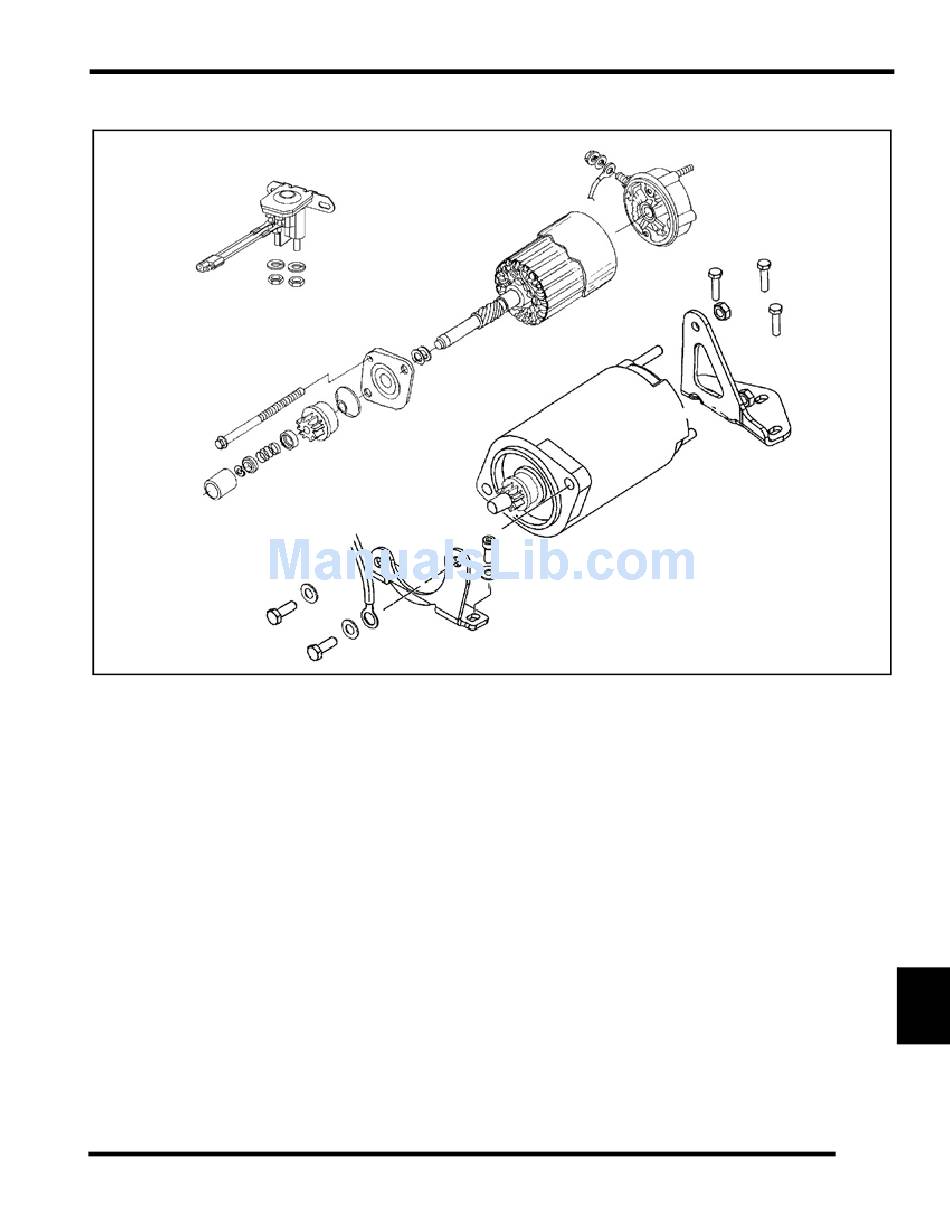

Starter Motor Assembly (Typical)

COMMUTATOR CAP
STARTER SOLENOID
ARMATURE
9 Ft.Lbs. (12 Nm)
SCREW
DRIVE CAP
PINION
MOTOR BRACKET
RETURN SPRING ASM
STARTER MOTOR
GROUND CABLE
14 - 16 Ft.Lbs. (19 - 21 Nm)
19 - 26 Ft.Lbs. (25 - 35 Nm)
MOTOR BRACKET
11
