BATTERY & ELECTRICAL SYSTEMS
T C
ROUBLE ODE
5 Tooth CPS Signal Intermittent
5 VDC Sensor Supply Voltage Low
Chassis Voltage High
Chassis Voltage Low
Ignition Voltage Circuit Malfunction
2 Tooth CPS Signal Missing
Chassis Relay Coil Open Circuit

MFD Blink Codes

The check engine LED will display a blink code whenever the
ECU determines there is a problem with one or more of the
sensors. Use Digital Wrench to troubleshoot, fix and clear the
codes.
When a blink code is displayed, the CHECK ENGINE light will
illuminate for 1/2 second "on" and 1/2 second "off" with a 1
second "off" interval between close.

DTC Troubleshooting

Always use the Digital Wrench diagnostic software program to
troubleshoot DTCs, MFD blink codes, and overall performance
problems.
Digital Wrench can be used to display trouble codes and offers
guided diagnostics. Guided diagnostics allows the technician to
perform diagnostic checks in an attempt to isolate the root
problem.
1. To access trouble codes, click on the "!" button. If any
codes are listed, select a code to proceed.
11.22
2007 CFI Diagnostic Trouble Codes
MFD B
P-C
ODE
C
P0336
P0643
P0563
P0562
Steady LED
P0350
P0385
P1611
LINK
ODE
Engine is running, but the pulses from the 5 tooth CPS are incorrect.
Can be caused by a faulty stator, wiring harness or ECU.
Sensor supply voltage is below an acceptable limit. Can be caused
by faulty wiring or ECU.
System voltage is too high. Can be caused by faulty wiring or
regulator / rectifier.
System voltage is too low. Can be caused by a faulty wiring or
regulator rectifier.
Engine is running but a problem is found with the ignition coil power
circuit. Can be caused by faulty wiring or ECU.
Engine is running and there is a signal from the 5 tooth CPS, but not
the 2 tooth CPS sensor. Can be caused by faulty wiring, stator or
ECU.
The chassis relay control circuit is open. Can be caused by faulty
wiring or a faulty relay.

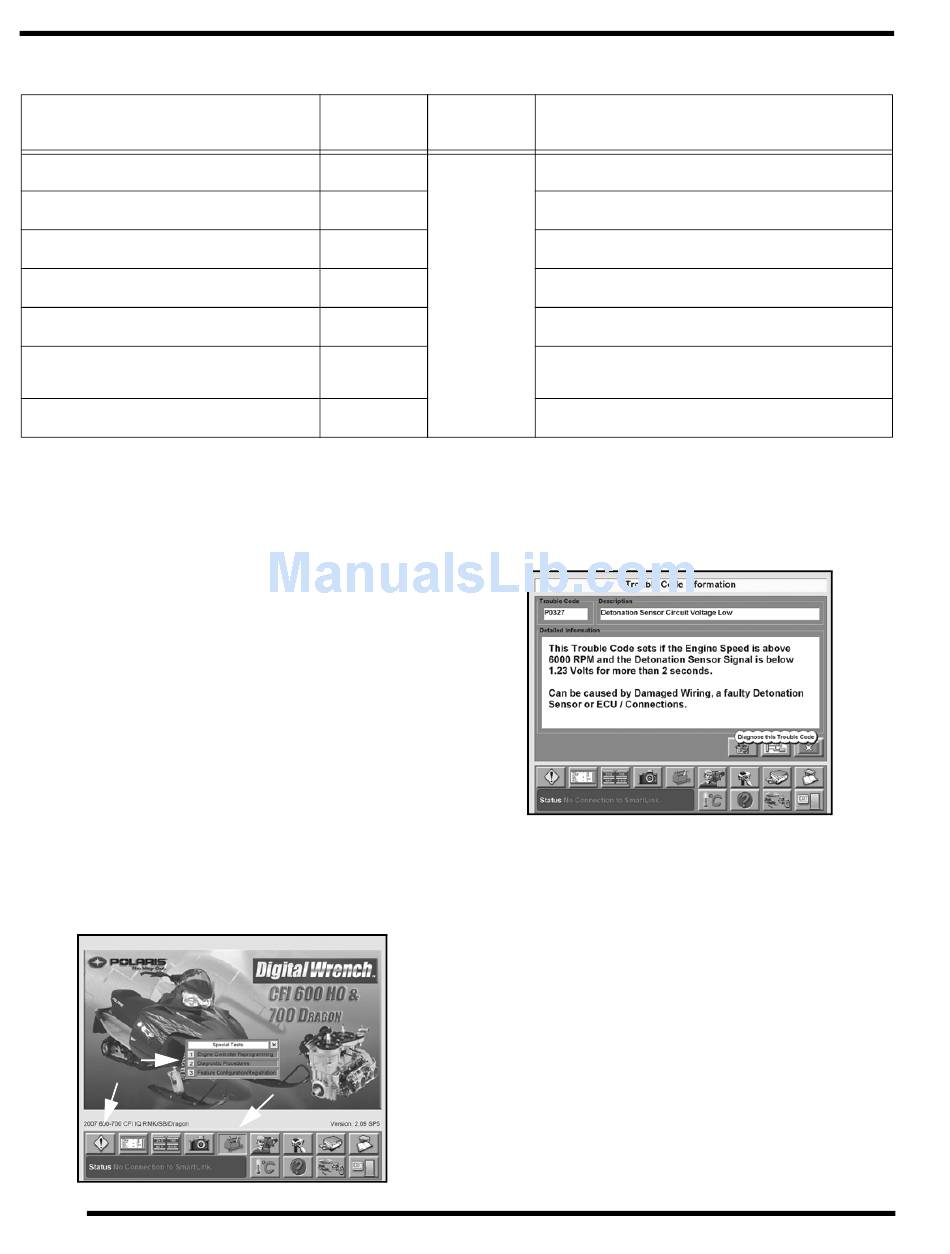

2. To access guided diagnostics, click on the "SPECIAL
TESTS" (toolbox) button. Then click "DIAGNOSTIC
PROCEDURES".
3. Select a code or system in the 'SYSTEM CHARTS" menu.
A description of the DTC or system will be displayed.
4. Click on (A) to activate guided diagnostics.
5. Click on (B) to view a wiring schematic of the component
or system.
6. Click on "X" to exit the current screen.
D
ESCRIPTION
(A) (B)
