REAR SUSPENSION

REAR SHOCK SPECIFICATIONS

Walker Evans FTS 7043204

ITEM
Extended Length
Collapsed Length
Stroke
Shock Rod
IFP Depth
Shaft PN
PSI
Spring
Spring Ratio
Free Length
Hose length
Fluid
Factory setting

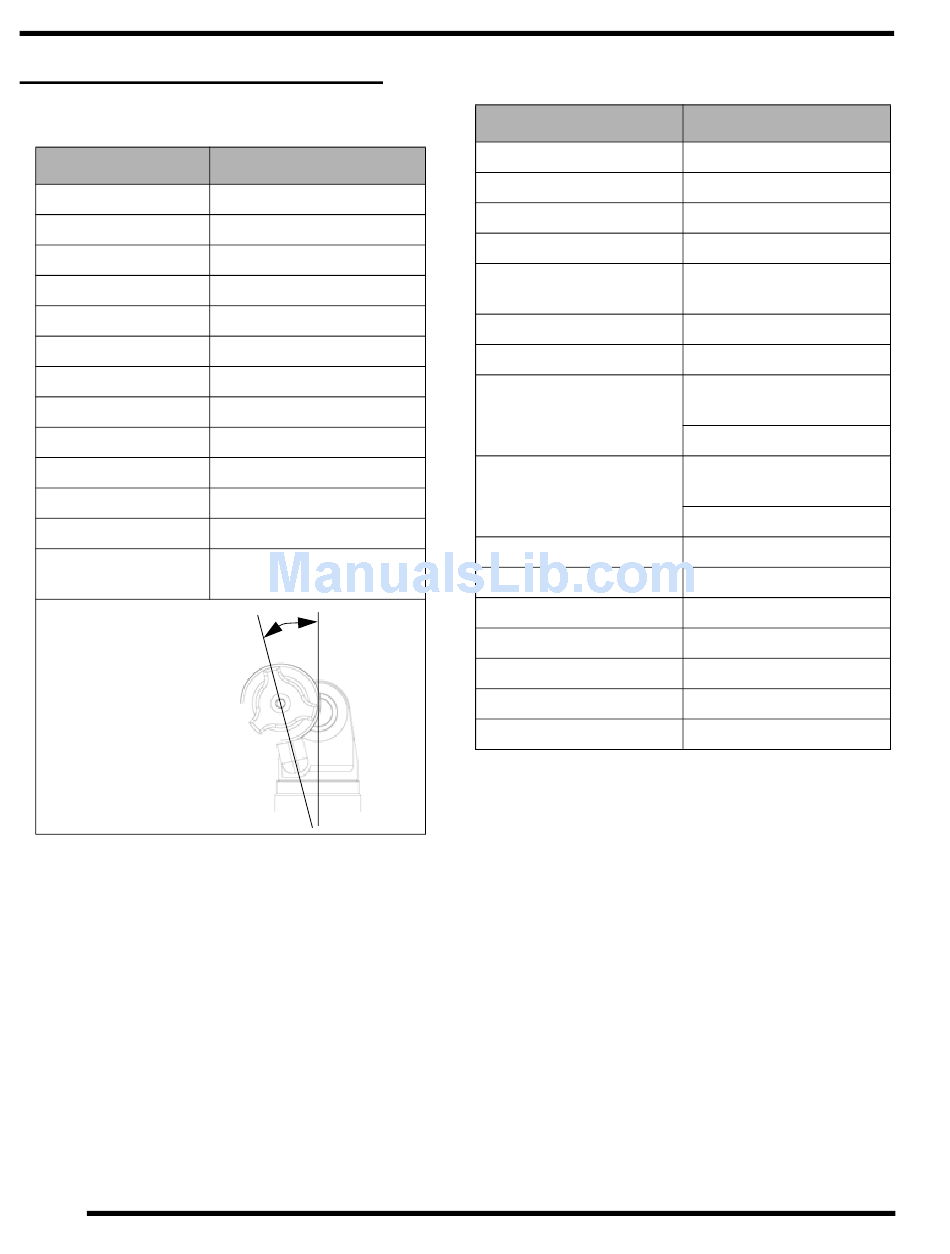

Reservoir fitting angle 15°
±10° from the center line
of the shock
9.26
NOTE
12.10" (30.7 cm)
8.60" (21.8 cm)
3.50" (8.9 cm)
.625" (1.6 cm)
2.25" (5.7 cm)
1800316
200
7043147
130/270
8.22" (20.9 cm)
9.13" ±.13" (23.2 cm ±3.3mm)
5w
Adjuster at 4 clicks (±1) from
full counterclockwise position

Fox FTS 7043267

ITEM
Extended Length
Collapsed Length
Stroke
Shock Rod
IFP Depth measured from the
bottom of the shock body.
Shaft PN
PSI
Eyelet
Lower Body Cap
Lock Ring Torque
Bearing Cap Torque
Spring
Spring Ratio
Free Length
Spring Installed length
Stock Clicker Setting
NOTE
12.07" (30.7 cm)
8.63" (21.9 cm)
3.44" (8.7 cm)
.50" (1.27 cm)
1.8" (4.57 cm)
1500715
200
Apply Primer N and red
Loctite® 271
Torque 30 ft-lb (41 N-m)
Apply Primer N and Green
Loctite® 638
Torque 75 ft-lb (102 N-m)
10 ft-lb (14 N-m)
30 ft-lb (41 N-m)
7043147
130/270 lb/in
8.22" (20.9 cm)
7.84" (19.9 cm)
8 ± 1
