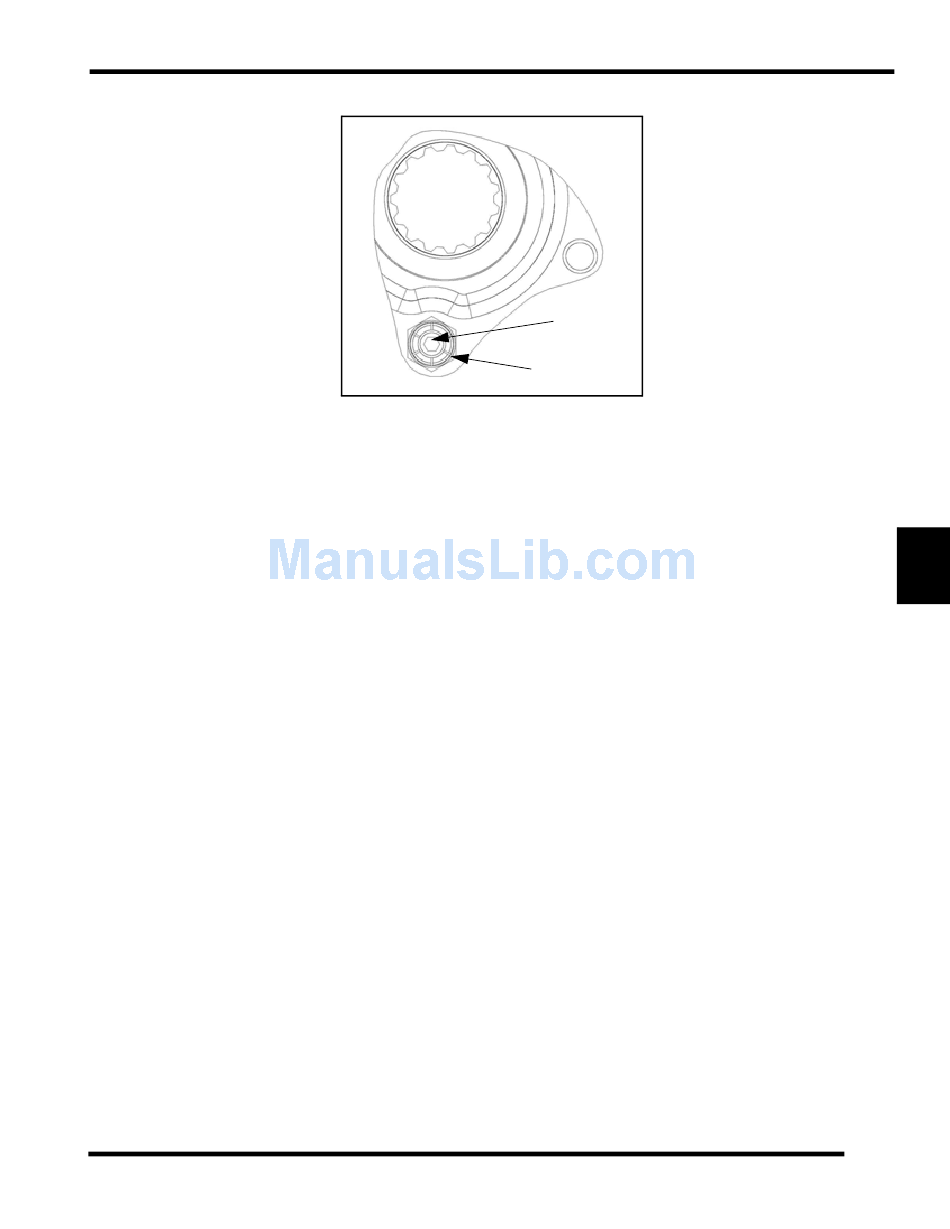

Adjusting Belt Deflection

1. Loosen the jam nut (E).
2. Using an 1/8" Allen head wrench, turn the stud (F) counter-clockwise to decrease belt deflection and clockwise to increase belt
deflection.
3. When the proper belt deflection is achieved torque the lock nut (E) to 90-110 in-lb. (10-12Nm).
F
E
