BATTERY & ELECTRICAL SYSTEMS

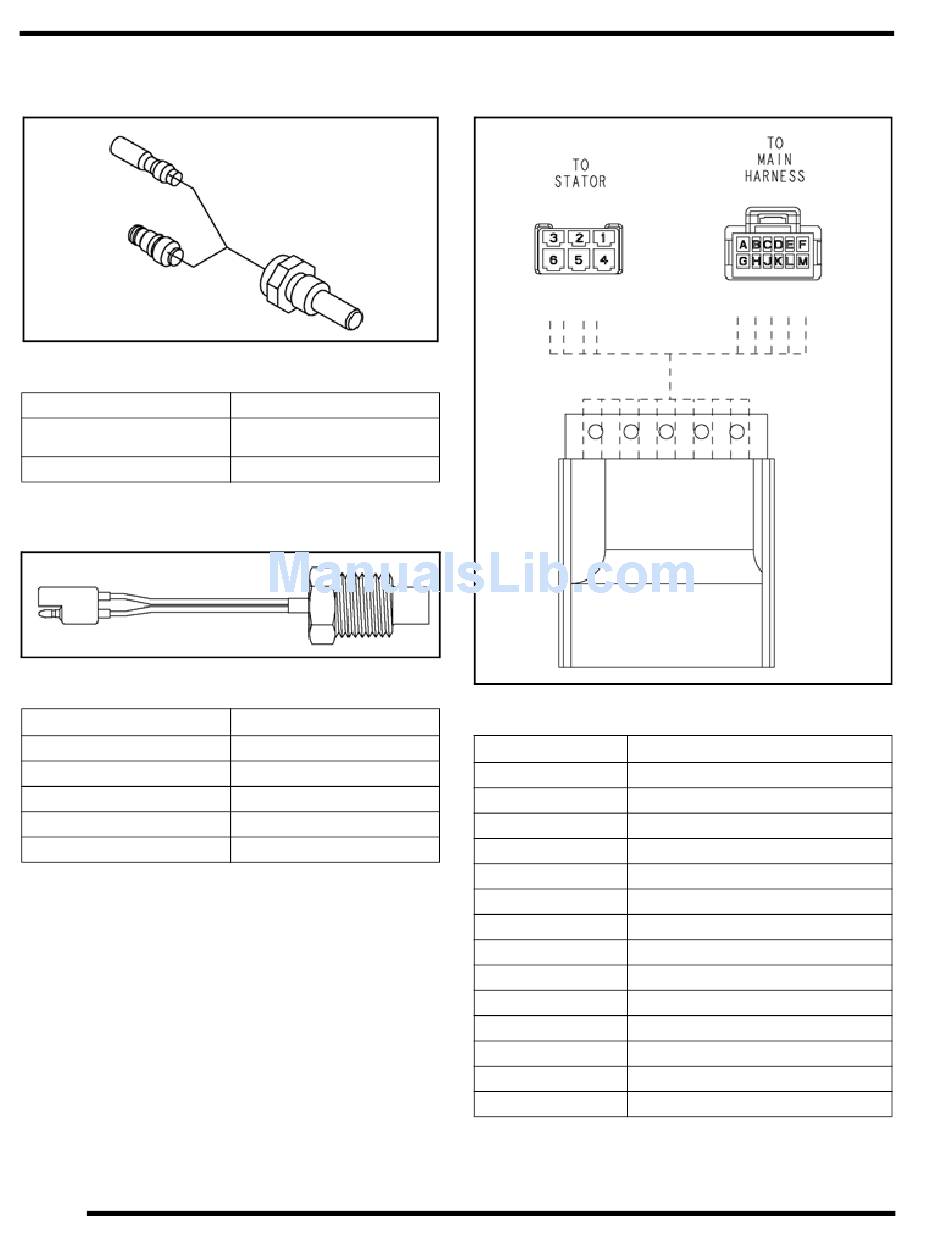

600HO Coolant Temperature Sensor

Sensor Specifications
Operating Temperature Range
Resistance
Installation Torque

500 EV Coolant Temperature Sensor

Sensor Specifications
Temperature (F / C)
-22_F / -30_C
32_F / 0_C
68_F / 20_C
149_F / 6_C
221_F / 105_C

Oil Level Sender

To test the oil level sender, position the sender as it would be in
the oil tank. Allow the float to drop in the direction it would if
the oil tank were empty. Continuity should be present when
using a multimeter to test the sender with the float in the "empty"
position.
No continuity should be present when the float is moved away
from the "empty" position.
11.48
-22_F - +248 _F (-30_C - 120_C)
2.4 - 2.6KΩ@ 68_F (20_C)
(Measure in stirred water)
29 ft.lbs. (39.2Nm)
Resistance (OHMS)
22914 - 28006Ω
5085 - 6215Ω
2189 - 2675Ω
455 - 556.2Ω
152.8 - 186.8Ω

600 HO Regulator / Rectifier

Circuit Specifications
PLUG / PIN / COLOR FUNCTION
STATOR / 2 / BROWN GROUND
STATOR / 3 / YELLOW AC POWER INPUT
STATOR / 4 / BROWN GROUND
STATOR / 6 / YELLOW AC POWER INPUT
HARNESS / A / YELLOW REGULATED AC POWER
HARNESS / B / ORG/BLK DC BRAKE LAMP GROUND
HARNESS / C / ORANGE AC BRAKE SIGNAL INPUT
HARNESS / D / BRN/WHT DC GROUND
HARNESS / F / BROWN AC GROUND
HARNESS / G / YELLOW REGULATED AC POWER
HARNESS / J / RED/WHT REGULATED DC MFD POWER
HARNESS / K / RED REGULATED DC BATTERY POWER
HARNESS / M / BROWN AC GROUND
METAL TAB GROUND PLATE
