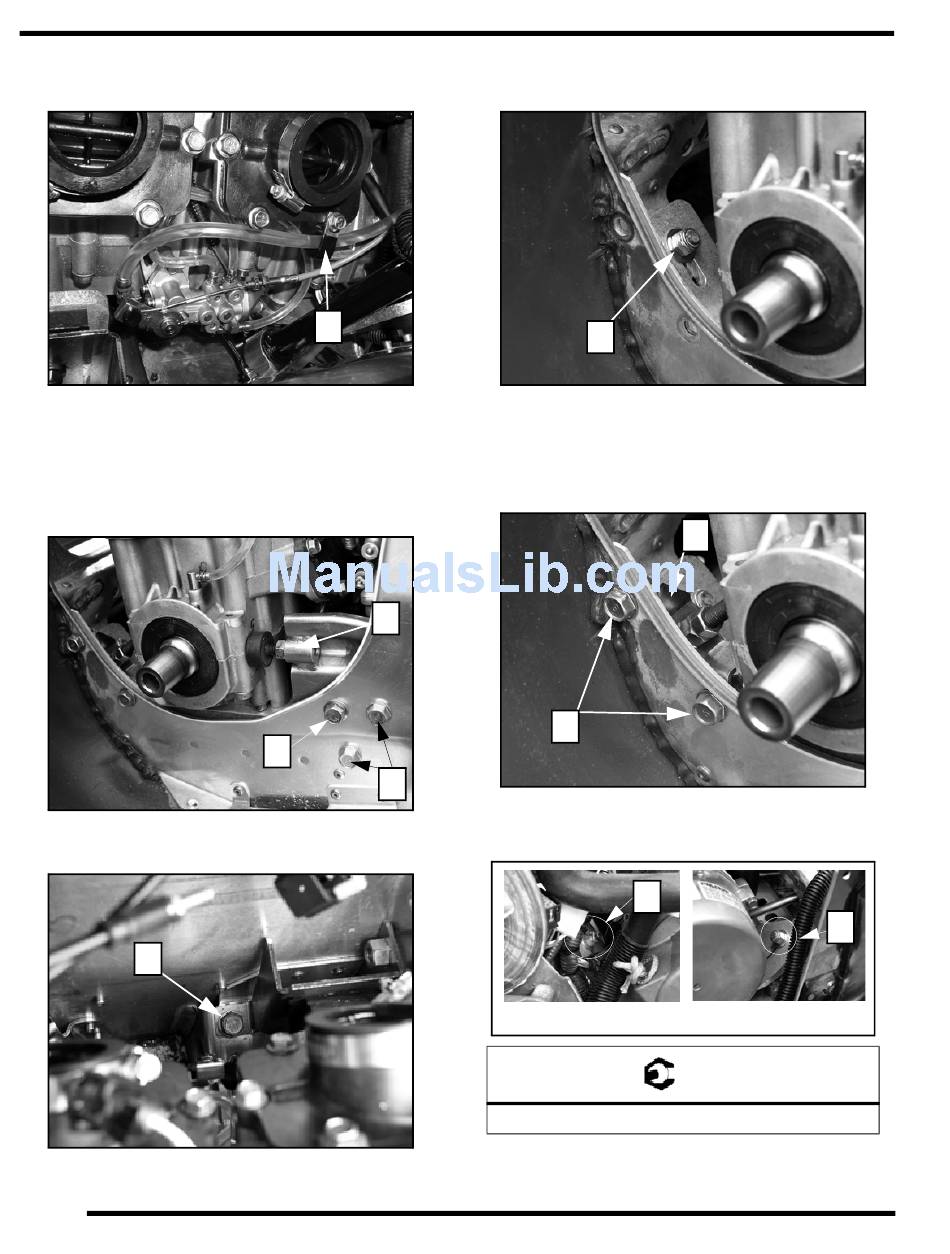

4. Install the oil supply line through the guide (2) on the MAG
intake.
5. Place the engine into the bulk head and make sure that it is
lined up with the motor mounts.
6. Insert the LH rear torque stop plate (3) between the motor
mount and the bulk head.
7. Apply blue Loctite to the fastener (4) and torque all the
outside fasteners (4,5) to 28 ft-lb(38 N-m).
8. Install the LH rear motor mount fastener (6) and torque to
28 ft-lb (38 N-m).
6
5.26
2
3
4
5
9. Insert the front engine strap washer and Nyloc nut (7) onto
the motor mount stud and torque to 28 ft-lb (38 N-m).
7
10. Adjust the front torque stop so that the bumper is bottomed
out on the plate, and lock the lock nut.
11. Insert the front isolator limiter assembly (8) and torque the
fasteners (9) to 28 ft-lb (38 N-m). See "Engine Isolator
Limiter Setting" on page 3.22.
9
12. Install the RH rear (10) and RH front (11) motor mount
washers and Nyloc nuts onto the motor mount studs.
Torque to 28 ft-lb (38 N-m).
10
RH Rear
Motor Mount Nut: 28 ft-lb (38 N-m)
8
11
RH Front
= T
