FINAL DRIVE/BRAKES

DRIVE TRAIN

M
L
N
S

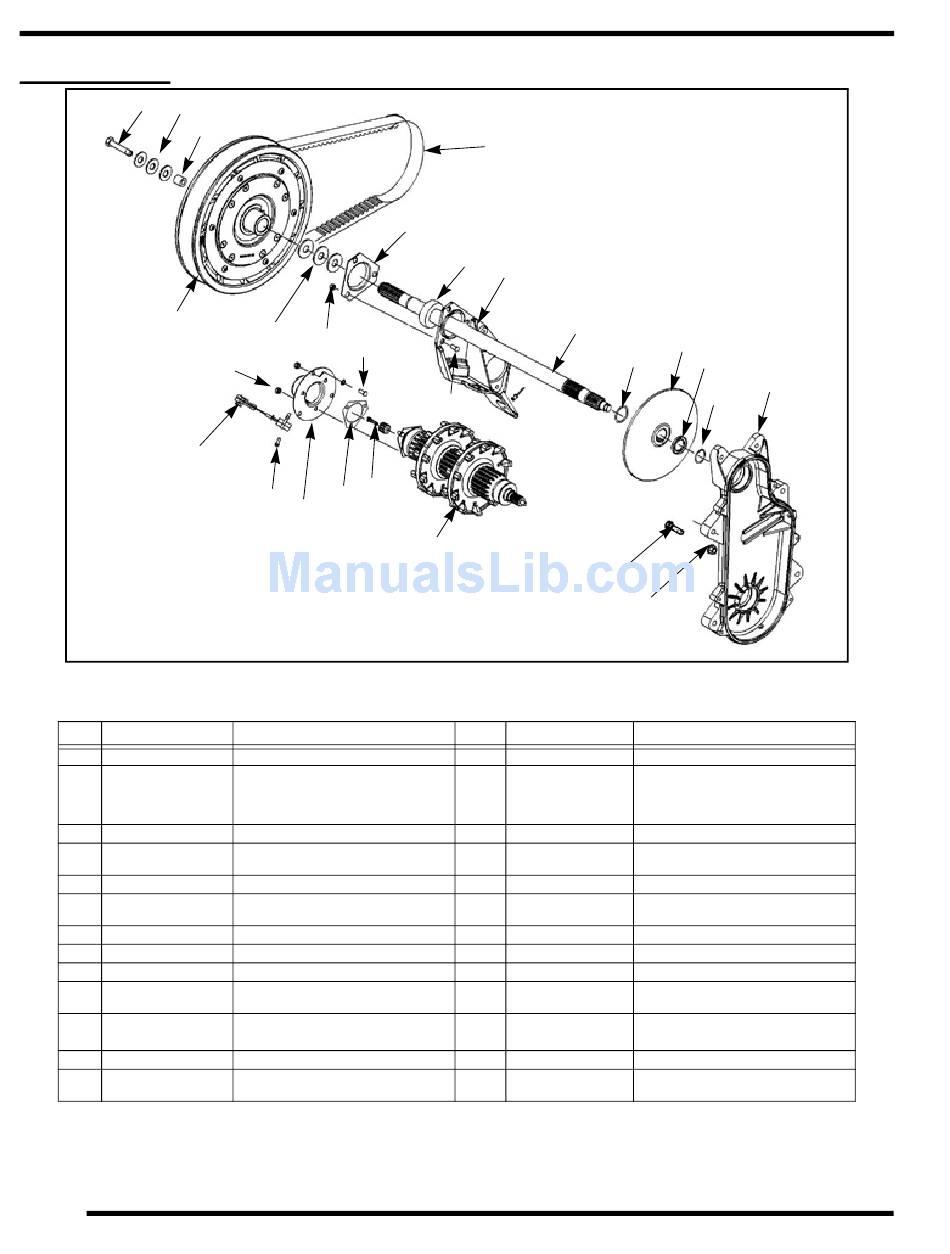

Jackshaft Exploded View

ITEM DESCRIPTION
A Chaincase
B O-ring
C Seal
D Brake Disk
E Retaining Ring
F Jackshaft
G Bulkhead area
H Bearing
I Flangette
J Belt
K Spacer
L Washers
Driven clutch retaining
M
bolt
7.10
K
O
P
Q
R
W
T
V
U
TORQUE SPECIFICATION / NOTES
7.92, 8.37, 8.47
8.37 chaincase - install seal sleeve (C) first,
then o-ring (B) on jackshaft
7.92 chaincase - install seal sleeve (C) first,
then o-ring (B) on jackshaft
Minimum thickness = .193" (4.9mm)
included on jackshaft
17 ft-lb (23 N-m)
J
I
H
G
F
AA
X
ITEM DESCRIPTION
N Driven Clutch
O Washers
P Flangette Nuts
Driveshaft Flangette
Q
Carriage Bolts
R Nylock Nut
Speedo Pick Up (Speed
S
Sensor)
T Speed Sensor Bolt
U Speedo Pick Up Housing
V Speedo Pick Up Gasket
Speedo Wheel Pick Up
W
and bolt
X Drive Shaft
Y Chaincase Carriage Bolt
Z Nylock Nut
D
C
E
A
B
Y
Z
TORQUE SPECIFICATION / NOTES
Note the placement
11 ft-lb (15 N-m)
11 ft-lb (15 N-m)
5 ft-lb (7 N-m)
12-15 ft-lb (8.8-11 N-m)
7.92 chaincase - install o-ring (B) first then
seal sleeve (C) on driveshaft.
20 ft-lb (27 N-m)
