5.13

Replacing the Power Supply

This section describes removing and installing the power supply.
5.13.1

Removing the Power Supply

Perform this procedure to remove the power supply.
1. Follow the steps in
Side Access Panel" on page
2. Unplug the AC power cord from the system.
3. Gently lay the system on its right side on a stable, nonslip surface.
4. Locate the power supply (see
FIGURE 5-25
5-38 Sun Ultra 20 M2 Workstation Service Manual • January 2007
Section 5.2.2, "Powering Off the System and Removing the Left
5-3.

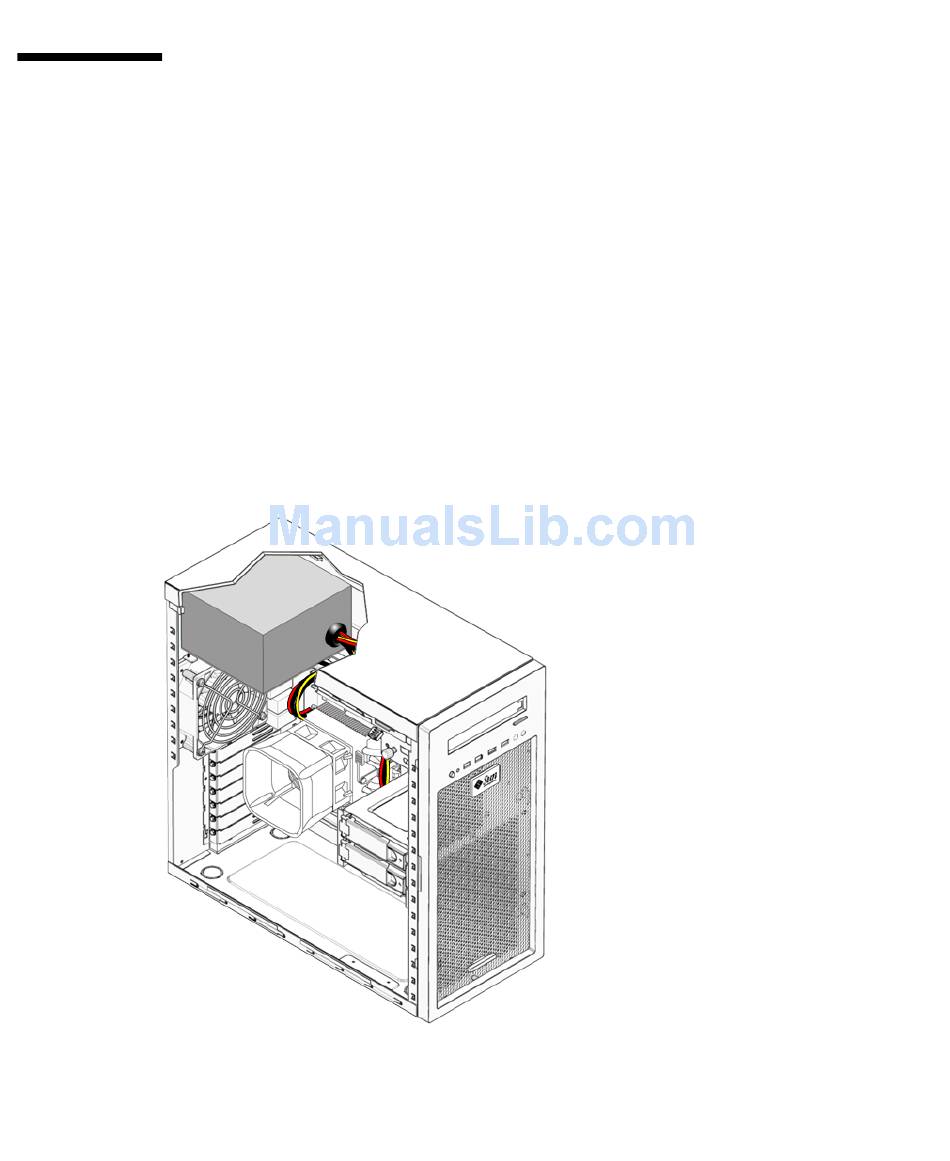

FIGURE 5-25
Location of the Power Supply
).
