5. Using a No. 2 Phillips screwdriver, remove the chassis filler panel from the PCI
card slot.
See . Save the screw for the next step.
FIGURE 5-19
6. Insert the SAS card into the PCIe card slot and secure the card with a screw.
See .
FIGURE 5-7
7. To keep the cables out of the air stream, carefully resecure them in the tie-downs.

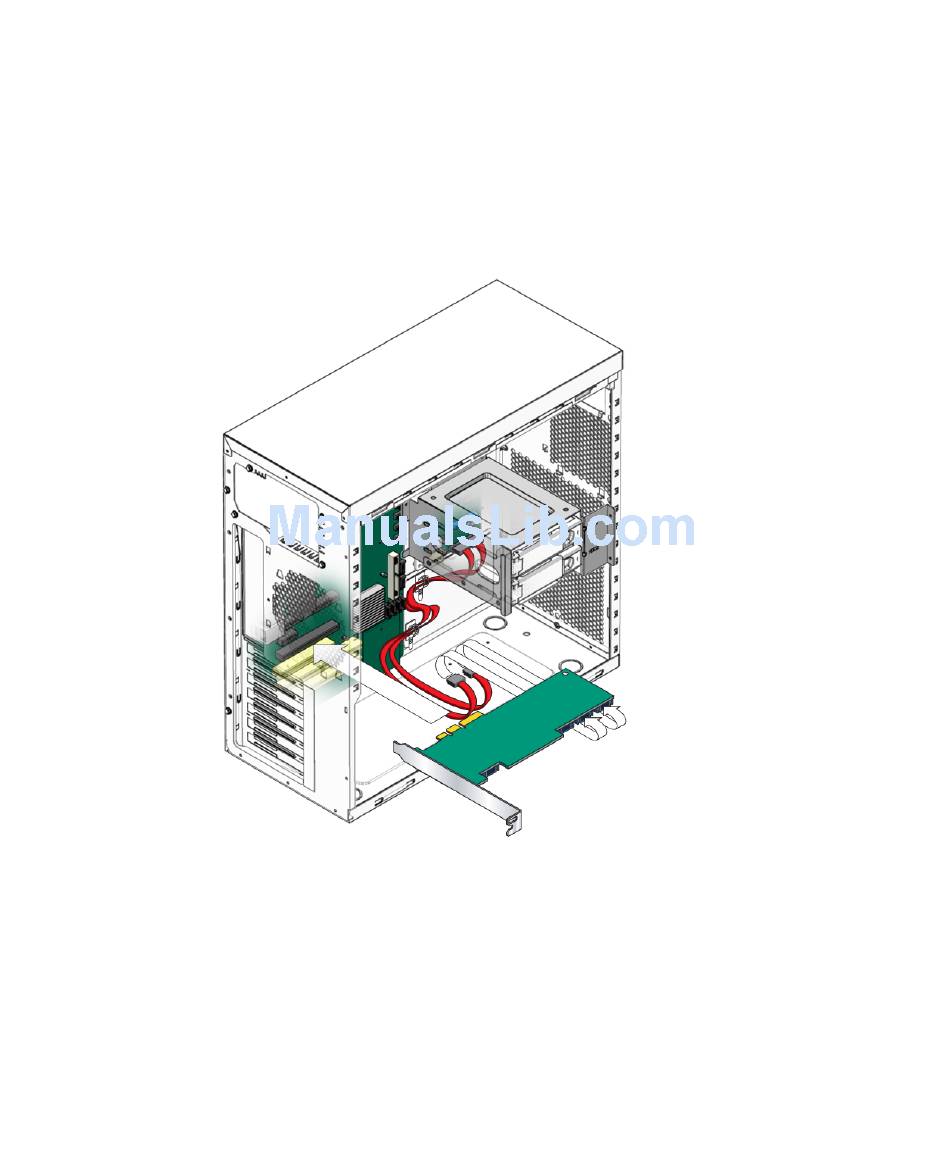

Installing a SAS Card
FIGURE 5-7
8. Install the SAS drives.
See Section 5.4.2, "Installing a Hard Disk Drive" on page
9. If you are finished working, reinstall the access panel, power on the system, and
verify the installation.
Refer to Section 5.3.3, "Installing the Left Side Access Panel" on page
5-10.
Chapter 5 Maintaining the Workstation
5-6.
5-13
