6. Connect the IDE, power, and jumper cables to the back of the DVD drive (see
).
FIGURE 5-13
Refer to the cabling diagram in the service label on the side of the chassis for
information on correct cable routing.

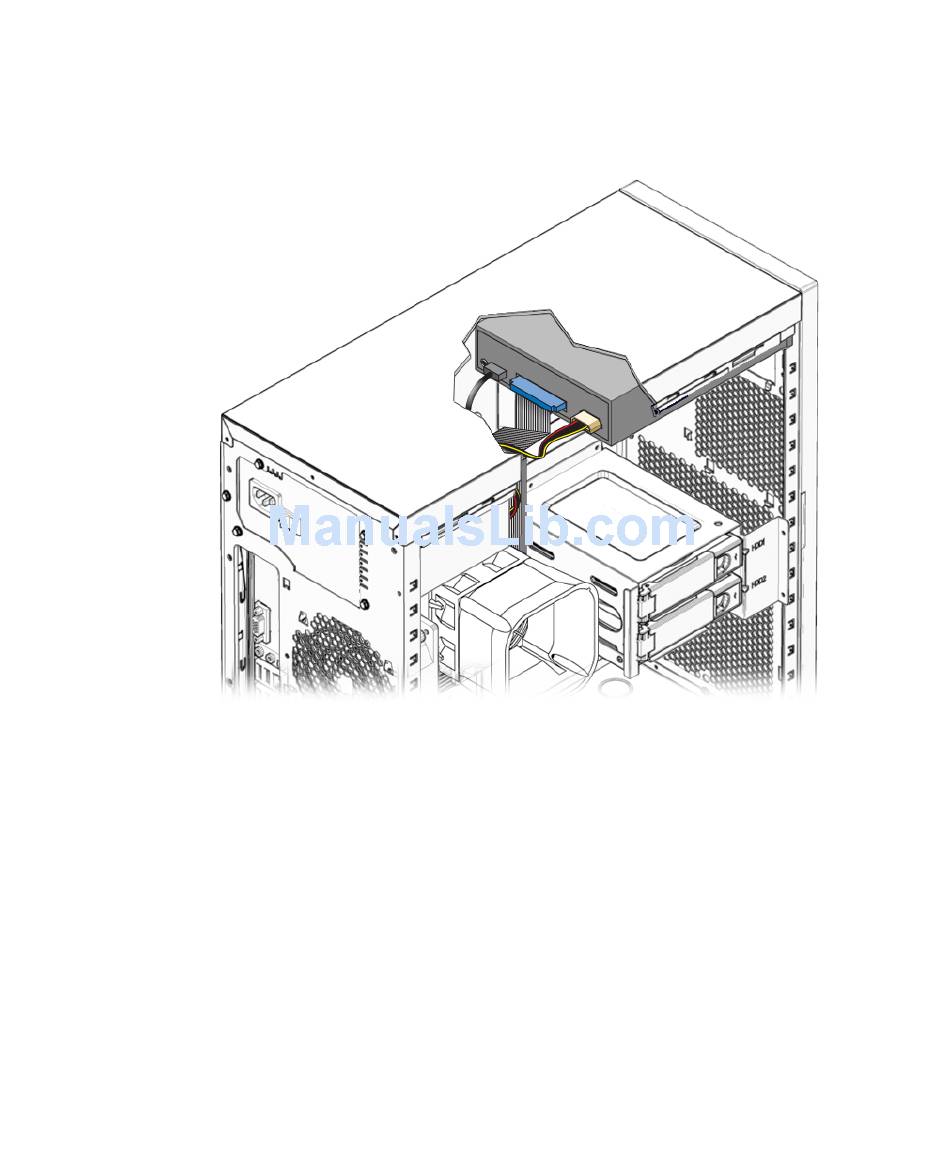

Location of Power and IDE Cables
FIGURE 5-13
7. Replace the front bezel and left side cover of the workstation.
8. To close the system, perform the steps in
Instructions" on page
Section 5.3.1, "Postinstallation
5-5.
Chapter 5 Maintaining the Workstation 5-21
