Figure 5-17 Removing A Pci-E Graphics Card - Sun Microsystems Ultra 20 M2 Service Manual

4. Unfasten and open the PCI-E card retainer (see

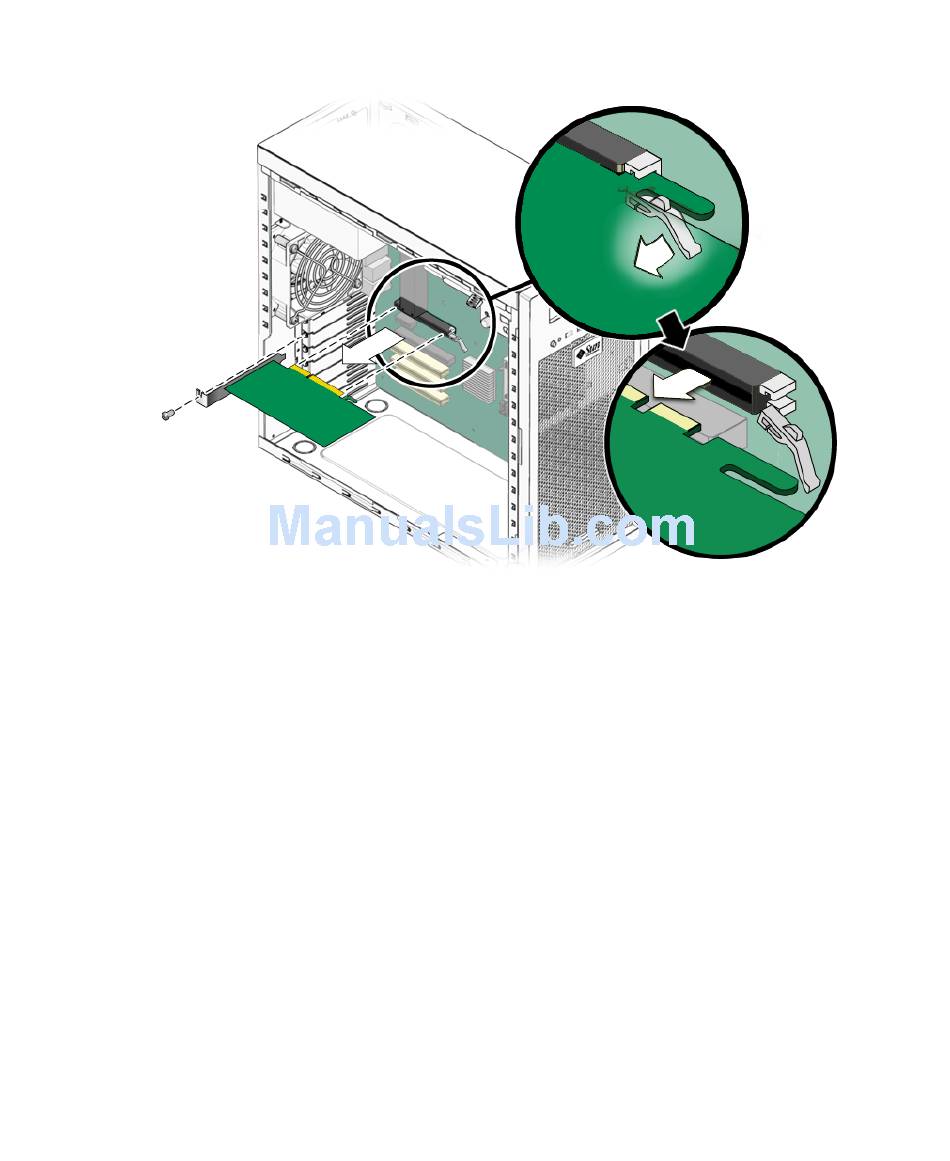

FIGURE 5-17
5. Remove the PCI-E card.
Gently rock the card forward, and then lift it straight out of the card slot and set it
aside on an antistatic surface.
6. Choose your next step.
If you are replacing the card, follow the instructions in
■
PCI-E Card" on page
If you are not replacing the graphics card, replace the slot filler panel, then close
■
the system by performing the steps in
on page
5-26 Sun Ultra 20 M2 Workstation Service Manual • January 2007
Removing a PCI-E Graphics Card
5-27.
5-5.
).
FIGURE 5-17
Section 5.9.2, "Installing a
Section 5.3.1, "Postinstallation Instructions"
