1.3

Internal Components and Cables

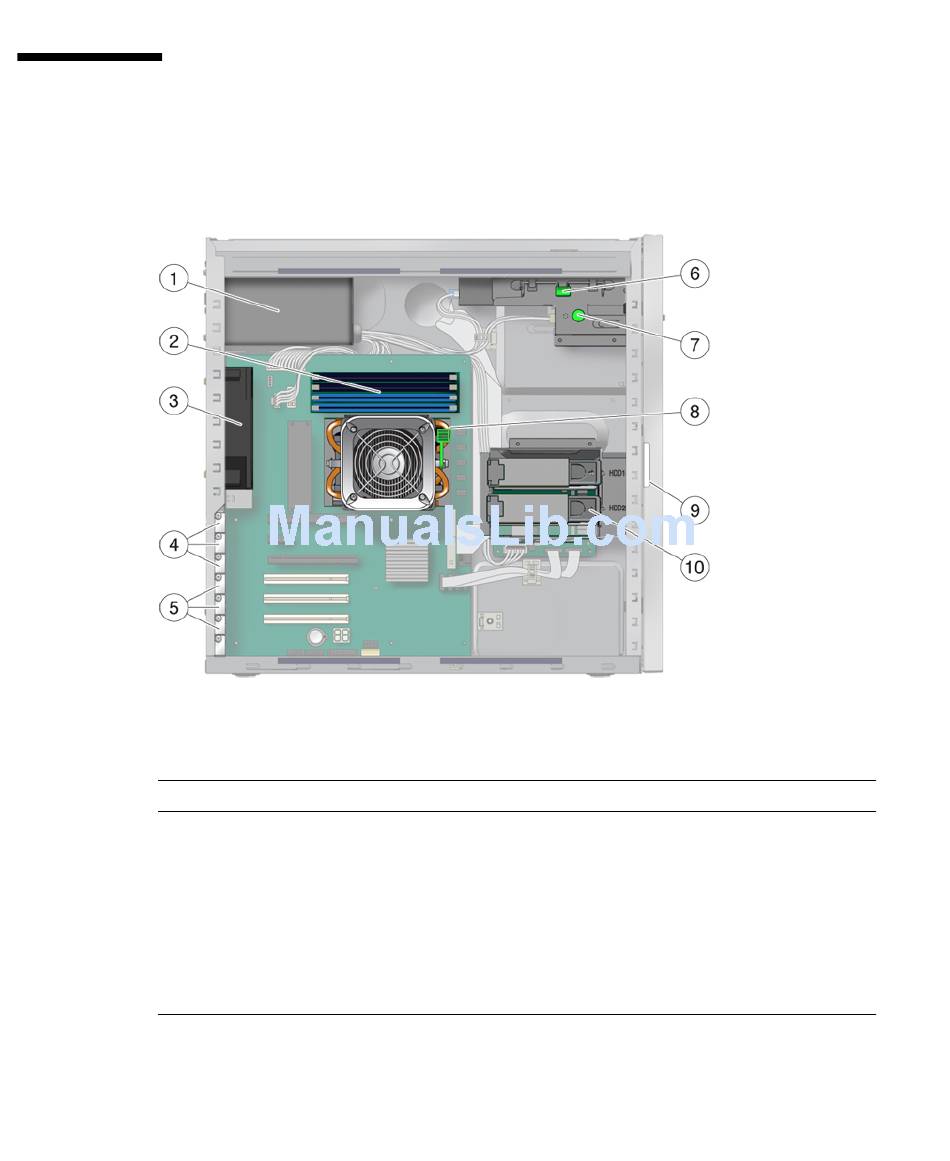

FIGURE 1-3
TABLE 1-3
FIGURE 1-3
TABLE 1-3
Label
1
2
3
4
5
1-4 Sun Ultra 20 M2 Workstation Service Manual • January 2007
shows the location for major system components and connectors.
lists the components called out in the figure.
Internal System Components
Internal System Components
Component
Power supply
Memory (DIMMs)
System fan
PCI Express slots (3) numbered
PCI-E slot 0 (top) to PCI-E slot 2
PCI slots (3) numbered PCI slot 0
(top) to PCI slot 2
Label Component
6 DVD release lever
7 I/O board release thumbscrew
8 Heatsink release lever
9 System serial number
10 Hard disk drive(s)
