Figure 5-22 Installing A System Battery - Sun Microsystems Ultra 20 M2 Service Manual

5. Insert a new battery with the positive sign (+) facing up (see
Tilt the battery into the battery connector, angling the battery under the battery
latch. Slide the battery until it clicks into place.

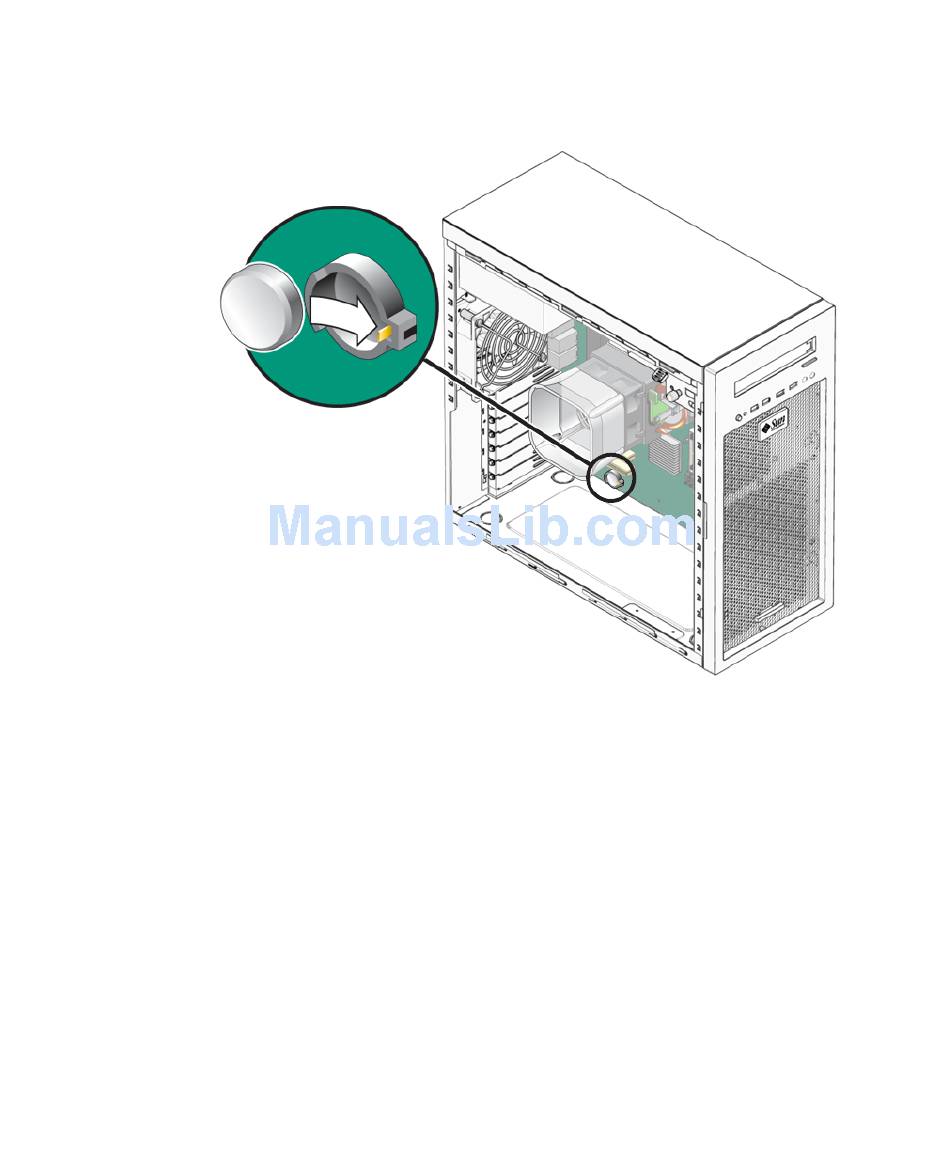

Installing a System Battery
FIGURE 5-22
6. Close the system by performing the steps in
Instructions" on page 5-5
FIGURE 5-22
Section 5.3.1, "Postinstallation
Chapter 5 Maintaining the Workstation
).
5-35
