Installing The I/O Board Assembly; Figure 5-30 Installing The I/O Board Assembly - Sun Microsystems Ultra 20 M2 Service Manual

5.14.2

Installing the I/O Board Assembly

Perform this procedure to install the I/O board assembly.
1. Follow the steps in
Side Access Panel" on page
2. Place the system unit on a flat, stable surface.
3. Push the I/O board through the back of the metal I/O board frame until the front
panel is flush with the bezel opening (see
board binds as you install it.

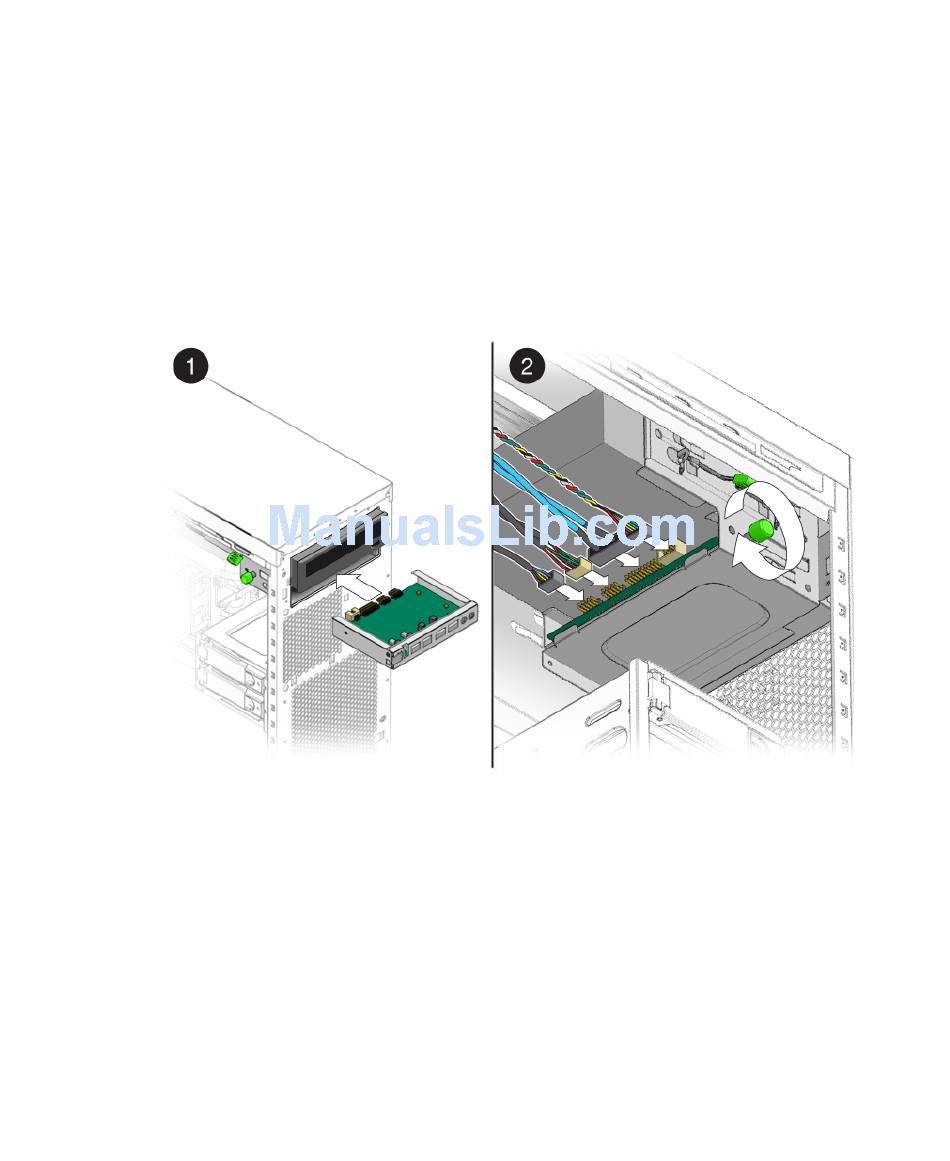

FIGURE 5-30
4. Tighten the captive screw on the metal I/O board frame to secure the I/O board.
5. Connect the internal USB, Power/LED, 1394, and audio cables to the back of the
I/O board.
The cables are color coded and keyed to ensure correct installation. See
and the service label on the chassis cover for the locations of the I/O board
connections.
6. Replace the front bezel.
7. Close the system by performing the steps in
Instructions" on page
5-44 Sun Ultra 20 M2 Workstation Service Manual • January 2007
Section 5.2.2, "Powering Off the System and Removing the Left
5-3.
Installing the I/O Board Assembly
5-5.
). Wiggle side to side if the
FIGURE 5-30
Section 5.3.1, "Postinstallation
FIGURE 1-4
