2.3 Connecting External Devices to the
Workstation
FIGURE 2-2
FIGURE 2-2
Perform this procedure to connect external devices to the workstation.
1. Connect the workstation power cord to a grounded electrical outlet.
2. Connect the keyboard to a USB connector on the back or front panel.
3. Connect the mouse to the USB connector on the underside of the keyboard or to a
USB connector on the front or back panel.
4. Connect the Ethernet cable to either Ethernet connector on the Sun Ultra 20 M2
Workstation, and connect the other end of the cable to an Ethernet RJ-45 jack.
2-4 Sun Ultra 20 M2 Workstation Service Manual • January 2007

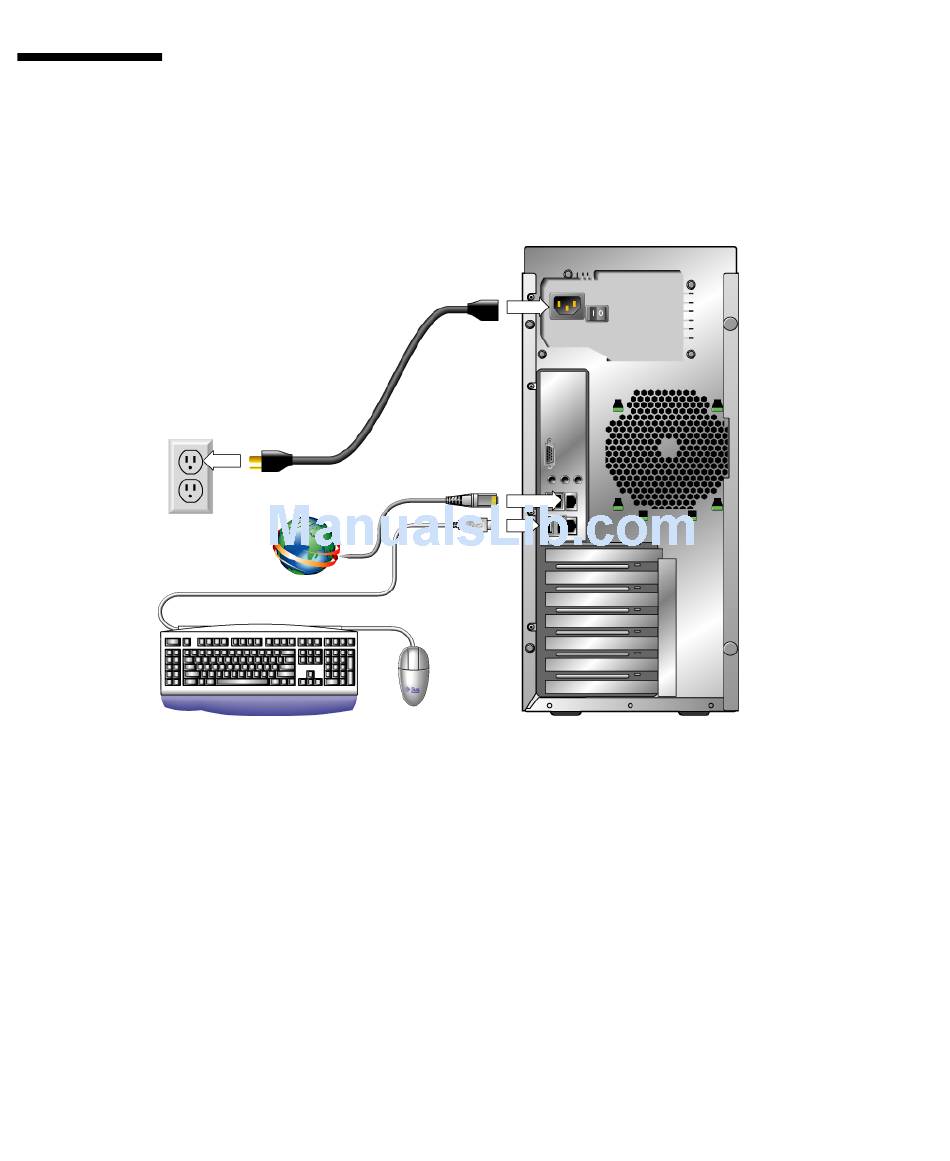

illustrates the external device cable connections to the workstation.
External Cable Connections
