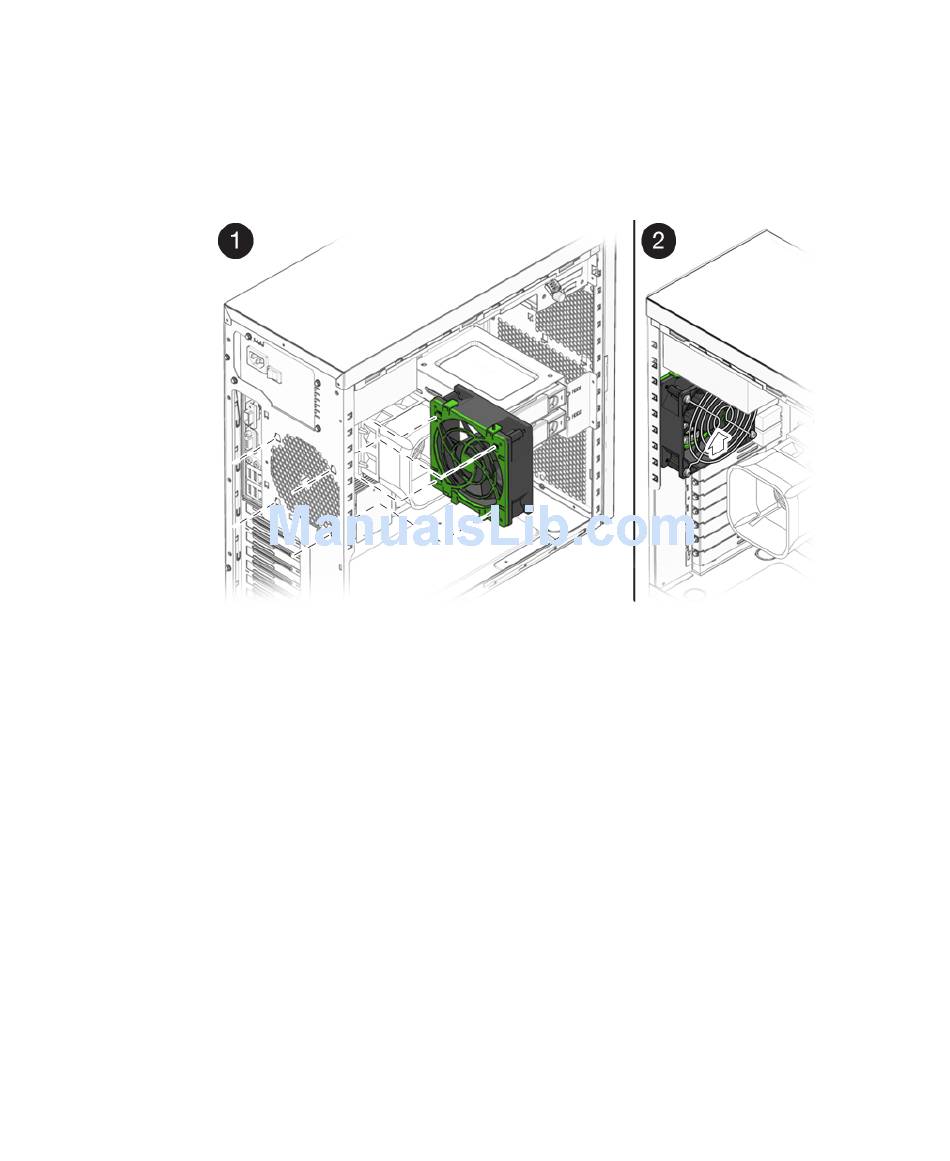

Figure 5-24 Installing The System Fan - Sun Microsystems Ultra 20 M2 Service Manual

9. Locate the four corner holes in the chassis grill where the fan tabs will be
installed.
10. Gently press the fan against the chassis, with the four hooks on the back of the
fan bracket in the corner holes on the chassis grill.
11. Slide the fan up until the latches click into their locked position (see
Installing the System Fan
FIGURE 5-24
12. Route the fan's power cord through the cable management strap near the top right
corner of the motherboard.
13. Connect the fan cable to the SYS_FAN connector on the motherboard.
14. Close the system by performing the steps in
Instructions" on page 5-5.
Section 5.3.1, "Postinstallation
Chapter 5 Maintaining the Workstation
).
FIGURE 5-24
5-37
