6. Position the card over the selected slot (see
FIGURE 5-20
7. Press down on the card until it is completely seated in the slot.
8. Fasten the retaining screw into place. Torque the screws to 8- to 9-inch pounds.
9. Close the system by performing the steps in
Instructions" on page
5-32 Sun Ultra 20 M2 Workstation Service Manual • January 2007

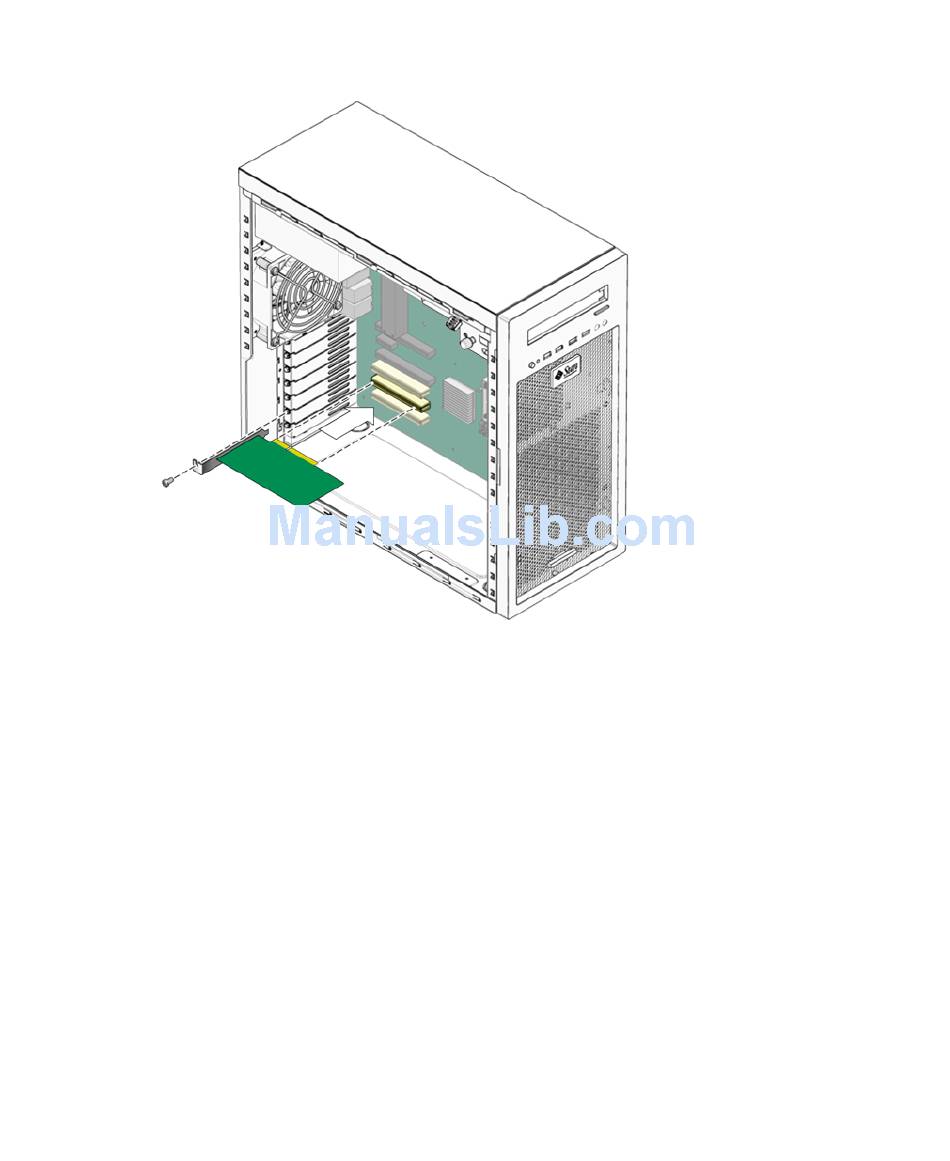

Installing a PCI card
5-5.
).
FIGURE 5-20
Section 5.3.1, "Postinstallation
