Replacing the Storage Backplane

This section describes how to remove and install the storage backplane. For a
definition of terms used in this section, see
Disk Drive" on page
5.6.1

Removing the Storage Backplane

Perform this procedure to remove the storage backplane.
1. Follow the instructions in
the Left Side Access Panel" on page 5-3
2. Gently lay the system on its right side on a stable, nonslip surface.
3. Locate the HDD assembly (see
FIGURE 5-8
5-8.
Section 5.2.2, "Powering Off the System and Removing

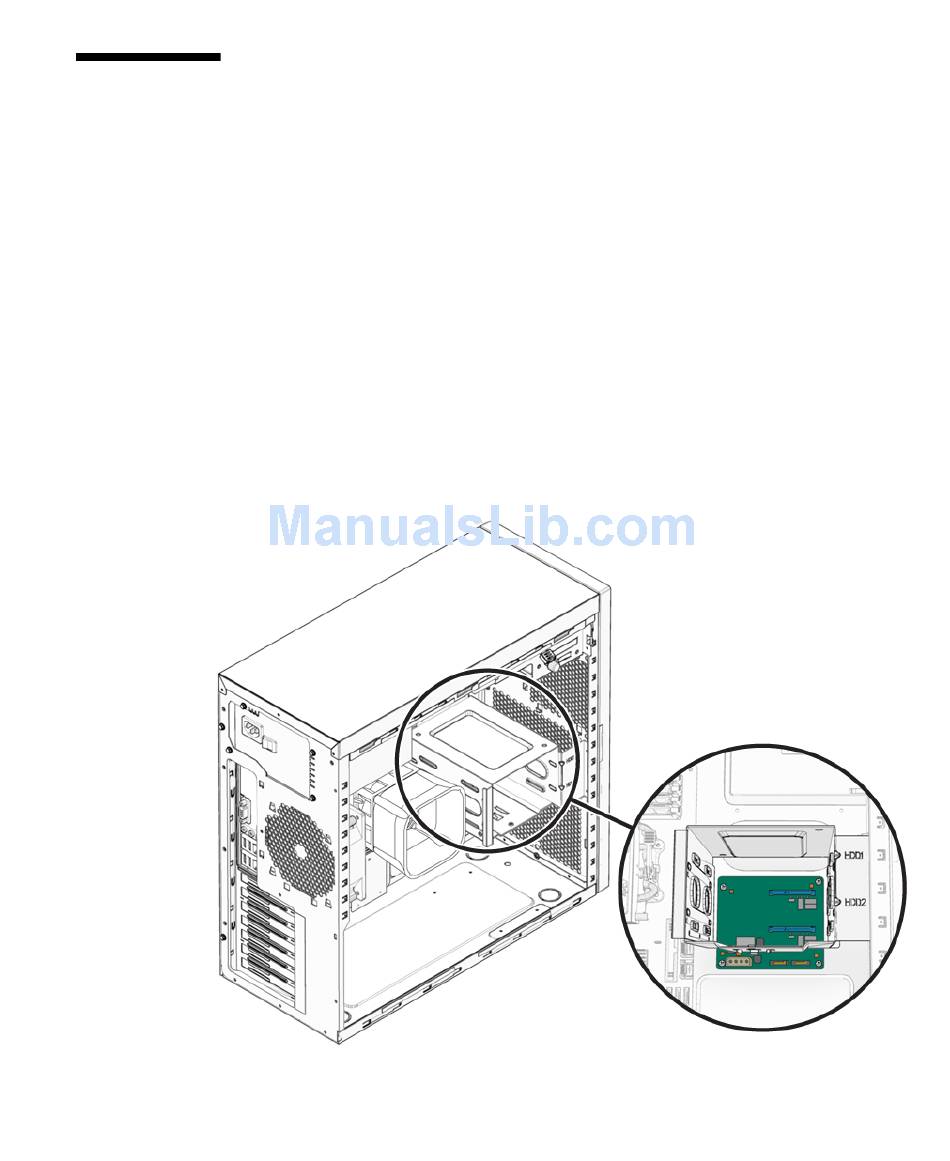

Location of the Storage Backplane
Section 5.4, "Removing or Adding a Hard
.
).
FIGURE 5-8
Chapter 5 Maintaining the Workstation 5-15
