5. Pressing gently against the top of the access panel, slide the panel toward the
front of the chassis. See
The access panel lies flat against the chassis, with no gaps between the two.
6. Tighten the two captive thumbscrews located on the rear lip of the panel.
The access panel is installed flat against the chassis with the thumbscrews tightened.

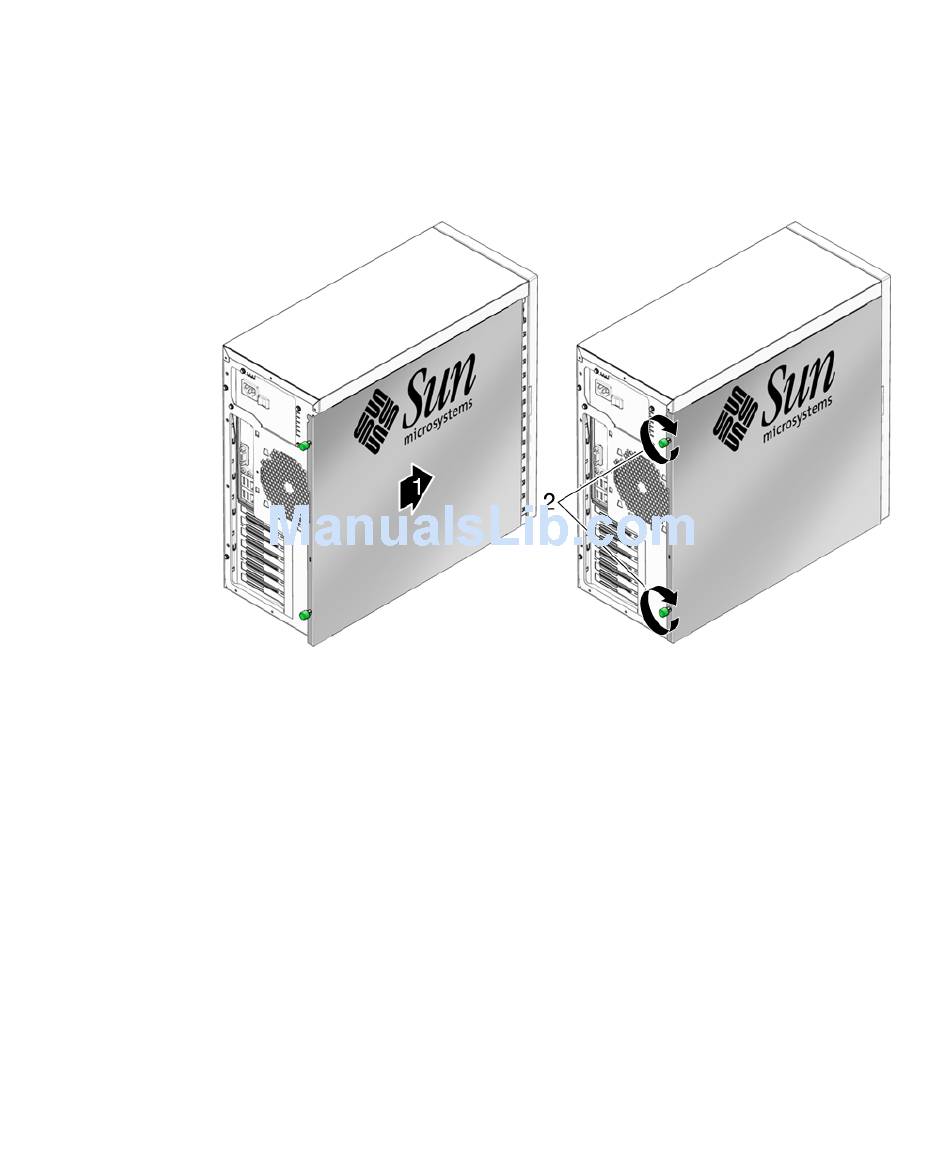

Installing the Left Side Access Panel
FIGURE 5-4
.
FIGURE 5-4
Chapter 5 Maintaining the Workstation 5-7
