Feature Overview conga-IGX

3.1

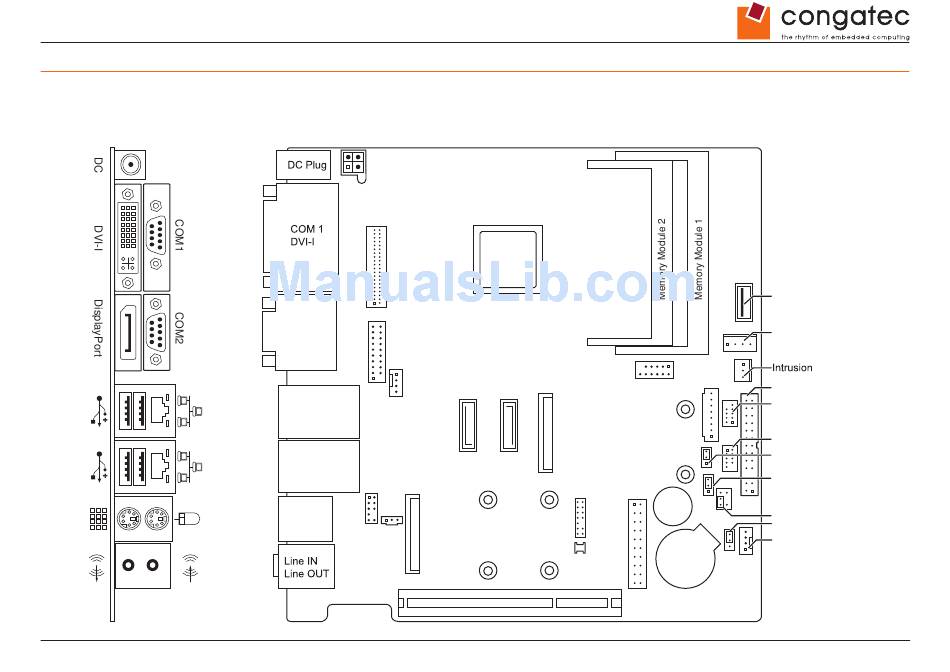

conga-IGX Reference Silkscreen

Copyright © 2014 congatec AG
Front Panel 1 = HDD_LED+
Power
LVDS
2x USB 3.0
COM 2
DisplayPort
FAN 1
LAN
2x USB 2.0
LAN
2x USB 2.0
Front Audio
Mouse
Keyboard
mini PCIe
SPDIF
PCIe X4
6 = Power_Switch
CPU
2x USB 2.0
SATA0 SATA1 mSATA
TPM GPIO
IGX1m02
DC Plug 1 = + DC
USB 2.0
Drive Power
LVDS
Backlight
LPT
COM 3
Front Panel
LVDS BL Control Settings
LVDS Supply Settings
Buzzer
BIOS Recovery Settings
System Power On Settings
FAN 2
Battery
Jumper Settings
