Overview

KWS8000 System Overview

Backplane Overview

Polycom, Inc.
This section provides information about the system components of the
KWS8000.
The KWS8000 requires one CPU card and up to 8 extension cards for each
gateway. If a larger system is required, you can link up to 8 gateways together
with a maximum of 64 extension cards and 8 CPU card.

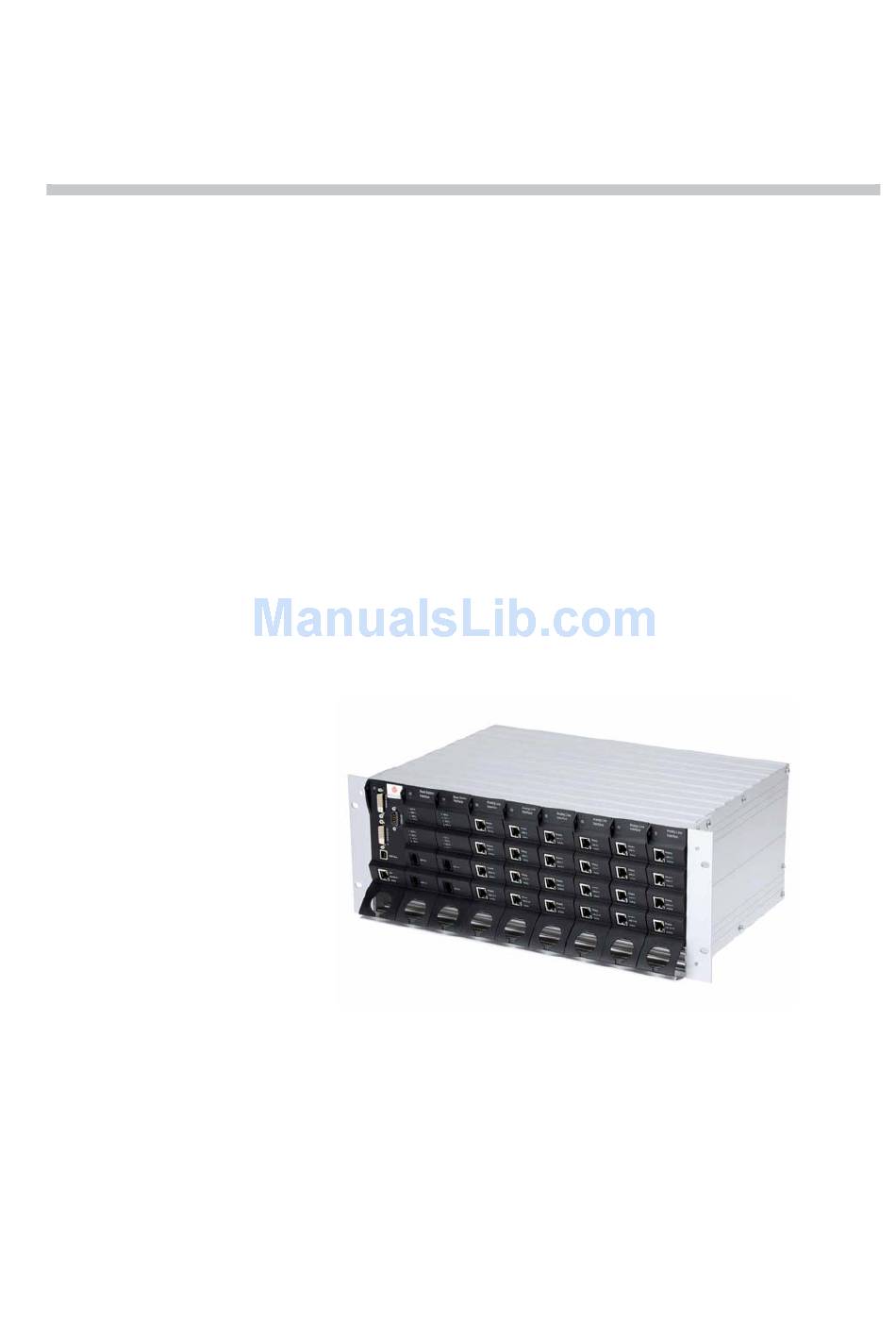

Figure 2-1 Chassis with CPU and Interface cards
The main part of the gateway is a backplane board with a minimum amount of
circuits and a CPU card. The backplane is located at the bottom of the chassis.
The CPU card is plugged in to the left.
