Polycom
KIRK

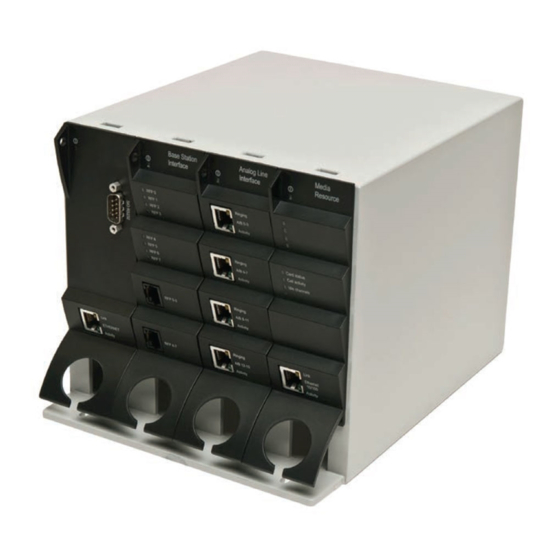

Wireless Server 2500

Installation Guide

Version 1.0
|
September 2010
|
14205700-Hd.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KIRK 2500 and is the answer not in the manual?

Questions and answers

Related Manuals for Polycom KIRK 2500

Summary of Contents for Polycom KIRK 2500

  • Page 1: Wireless Server

    ® ® Polycom KIRK Wireless Server 2500 Installation Guide Version 1.0 September 2010 14205700-Hd.1.0...
  • Page 2 Polycom, Inc. Information contained herein is subject to change without notice and does not represent commitment of any type on the part of Polycom, Inc. Polycom and Accord are registered trademarks of Polycom, Inc.

  • Page 3: Table Of Contents

    Index ........37 Polycom, Inc.
  • Page 4 Polycom Kirk Wireless Server 2500 Installation Guide Polycom, Inc.

  • Page 5: Kws2500 Installation

    Important Please review all the safety instructions for important safety and regulatory information Specifications Table 1-1 Physical Dimensions Physical dimensions Height 177mm Width 194 mm Depth 328 mm Weight 1.16 kg (excl. power supply) Table 1-2 Power Supply Power supply AC Input 100-240 VAC, 50/60 Hz Polycom, Inc.

  • Page 6: Kws2500 Components

    Polycom KIRK Wireless Server 2500 Installation Guide Installing the KWS2500 Table 1-3 Power Consumption Power consumption Typical AC Power Consumption 45 Watt Max. AC Power Consumption Max 60 Watt Table 1-4 Environment Environment Operating temperature 0°C - 40°C (22° - 104°F) Storage temperature -30°C - 70°C (40°...
  • Page 7 Installing the KWS2500 KWS2500 Installation Table 1-5 KWS2500 Components Picture Description Part Numbers CPU card 0233 9600 Media Resource Card 0233 9700 Mains adaptor 8476 9904 - AV only EU mains cable 8468 7013 UK mains cable 8468 7014 Polycom, Inc.

  • Page 8: Connections

    Polycom KIRK Wireless Server 2500 Installation Guide Installing the KWS2500 Table 1-5 KWS2500 Components Picture Description Part Numbers US mains cable 8468 7015 RS232 cable 13281100 Connections Figure 1-1 CPU Card Connections RS232 Ethernet Figure 1-2 RJ45 Connections for Base Stations...

  • Page 9: General Installation Information

    Decide on a suitable surface that will hold the KWS2500 unit. It should be situated in a clean, dry, and dust-free area that is well ventilated. Avoid areas where heat, electrical noise, and electromagnetic fields are generated. • Place it near an earthed power outlet. Polycom, Inc.

  • Page 10: Installing The Kws2500 On A Flat Surface

    Polycom KIRK Wireless Server 2500 Installation Guide Installing the KWS2500 Installing the KWS2500 on a Flat Surface Before you start installation, take notice of the following safety precautions. Flat Surface Mounting Safety Precautions • Ensure the surface can support the weight of the unit.

  • Page 11: Connecting The Kws2500 Cables

    With two hands, gently slide the interface card into the unit. Give it a gentle push on the last centimeter so that it enters the backplane connector properly. Avoid pushing on the front connectors - push only on the plastic parts at the top and bottom. Polycom, Inc.

  • Page 12: Installing Interface Cards And Cpu Cards

    Polycom KIRK Wireless Server 2500 Installation Guide Installing the KWS2500 Figure 1-5 Installing Interface Cards Plug the interface cables into the card as described in “Connecting Interface Cables” on page 11. To Install CPU Cards Ensure that the KWS2500 is powered off completely.

  • Page 13: Figure 1-6 Installing Cpu Card

    The front interface of the KWS2500 is provided with connectors for the different interfaces provided. Please see the KWS2500 User Guide for the actual pin-out of the different connectors. The cables can be harnessed in two ways as shown in the following figures depending on the installation requirements. Polycom, Inc.

  • Page 14: Figure 1-7 Harnessing Cables To The Back And Out

    Polycom KIRK Wireless Server 2500 Installation Guide Installing the KWS2500 Figure 1-7 Harnessing cables to the back and out Polycom, Inc.

  • Page 15: Figure 1-8 Harnessing Cables To The Side And Out

    KWS2500 Installation Figure 1-8 Harnessing cables to the side and out. Regardless of which way is used for harnessing, you must guide the cables through the opening in the plastic front. This ensures safe retention of the cable. Polycom, Inc.
  • Page 16 Polycom KIRK Wireless Server 2500 Installation Guide Installing the KWS2500 Polycom, Inc.

  • Page 17: Replacing Components

    All maintenance tasks must be performed by qualified, authorized personnel only. • Use only original replacement parts. • Make sure you are using proper ESD equipment, to prevent damage to the system. • Fill all empty slots with blanking front plates to close the front. Polycom, Inc.
  • Page 18 Polycom KIRK Wireless Server Installation Guide Component Replacement Replacing Interface and CPU cards To Replace a New Hot-swappable Card Ensure the KWS2500 unit is properly earthed. Unplug all interface cables on the card that needs to be replaced, noticing which goes where.

  • Page 19: Regulatory Notices

    FCC registration number. If requested, the FCC registration Number and REN must be provided to the telephone company. Any repairs to this equipment must be carried out by Polycom Inc. or our designated agent. This Polycom, Inc.
  • Page 20 20 A for the AC system. o This equipment has a maximum operating ambient of 40°C, CE Mark R&TTE Directive Polycom Inc., declares that the Polycom KWS 2500 is in conformity with the following relevant harmonized standards: EN 60950-1:2006...
  • Page 21 This precaution may be particularly important in rural areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. Polycom, Inc.

  • Page 22: Important Safety Instructions And Product Information

    Polycom KIRK Wireless Server 2500 Installation Guide Important Safety Instructions and Product Information Important Safety Instructions and Product Information Before using your telephone equipment, you should always follow basic safety instruction to reduce the risk of fire, electrical shock and injury to persons, and damage to property.

  • Page 23: Intrinsic Safety

    FCC Note: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Polycom, Inc.
  • Page 24 LIMITED WARRANTY. Polycom warrants to the end user (“Customer”) that the product will be free from defects in workmanship and materials, under normal use and service, for one year, or such longer period as Polycom may announce publicly from time to time for particular products, from the date of purchase from Polycom or its authorized reseller.
  • Page 25 1-800-765-9266, outside the US call 1- 408-526-9000, or your local Polycom Office, as listed on the Polycom Web site. LIMITATION OF LIABILITY. TO THE FULL EXTENT ALLOWED BY LAW, POLYCOM EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY,...
  • Page 26 SOFTWARE PRODUCT Middle East, Africa, and Asia Pacific, or the POLYCOM licensed by Polycom, Inc. in the rest of the world (collectively referred to herein as “POLYCOM”). The SOFTWARE PRODUCT includes computer software as attached hereto and may include associated media, printed materials, and "online"...
  • Page 27 This Agreement gives you no rights in such content. 2.7 Confidentiality. The SOFTWARE PRODUCT contains valuable proprietary information and trade secrets of POLYCOM and its suppliers and you shall protect the confidentiality of, and avoid disclosure and unauthorized use of, the SOFTWARE PRODUCT.
  • Page 28 POLYCOM's option and expense, to refund the purchase price paid by you for any defective software product which is returned to POLYCOM with a copy or your receipt, or to replace any defective media with software which substantially conforms to applicable POLYCOM published specifications.
  • Page 29 OPERATE AS WARRANTED ABOVE, YOUR SOLE REMEDY FOR BREACH OF THAT WARRANTY SHALL BE REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT POLYCOM'S OPTION. TO THE FULL EXTENT ALLOWED BY LAW, THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER...
  • Page 30 10.3 Contact. If you have any questions concerning this Agreement, or if you desire to contact POLYCOM for any reason, please contact the POLYCOM office serving your country. 10.4 U.S. Government Restricted Rights. The SOFTWARE PRODUCT and documentation are provided with RESTRICTED RIGHTS.

  • Page 31: A Rj45 Wiring

    RJ45 Wiring The following table sshows the assignments of wire pairs to plug and socket pins of the RJ45 cable. Table A-1 RJ45 cable wiring Pair Wiring Connector Connector Connector Connector ring ring ring ring Poycom, Inc.
  • Page 32 Polycom KIRK Wireless Server 2500 Installation Guide Polycom, Inc.

  • Page 33: B Cable Connections

    Cable Connections Analogue Interface Card Extensions from RJ45 to the KWS2500 the PBX (CLIP facing DOWN) Base Station Interface Card RJ45 to the KWS2500 Base stations CLIP facing DOWN Polycom, Inc.

  • Page 34: Rj45 Pins

    Polycom KIRK Wireless Server 2500 Installation Guide RJ45 Pins Figure B-1 RJ45 Pin Position Polycom, Inc.

  • Page 35: Tables

    RJ45 cable wiring ..........29 Polycom, Inc.
  • Page 36 Polycom KIRK Wireless Server 2500 Installation Guide Figures Figure 1-1 CPU Card Connections ........6 Figure 1-2 RJ45 Connections for Base Stations .

  • Page 37: Figures

    Index Power cables, connecting 8 Power consumption 3 Environment 3 Power supply 3 Flat surface installation 8 Safety Cables 8 Flat surface installation 8 Interface cable connection 11 Interface and CPU cards 9 Interface card installation 9 Wall mounting 8 Specifications 3 Physical dimensions 3...
