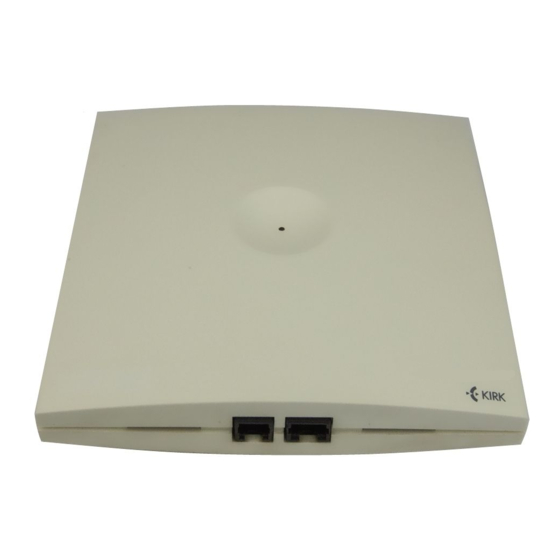

Polycom KIRK Wireless Server 500 User Manual

With clip
Hide thumbs Also See for KIRK Wireless Server 500:

Advertisement

Quick Links

Download this manual
®
Polycom
KIRK Wireless Server 500
With CLIP
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the KIRK Wireless Server 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Polycom KIRK Wireless Server 500

Summary of Contents for Polycom KIRK Wireless Server 500

  • Page 1 ® Polycom KIRK Wireless Server 500 With CLIP User Guide...
  • Page 2 8.2 S TARTING THE DMINISTRATION ROGRAM 8.3 C HANGE OF THE OMMUNICATIONS ONFIGURATION 8.4 R EGISTRATION OF ANDSETS 8.5 R EGISTRATION DITING ETTINGS 8.6 S UBSCRIPTION OF ANDSETS KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...

  • Page 3: Led Indications

    OFTWARE UPLOAD 10.4 P ASSWORD ROTECTION 11.0 KIRK WIRELESS SERVER 500 RED/GREEN LED INDICATIONS 12.0 RS232 CABLE LAYOUT 11.1 M ODEM ABLE ONNECTION AYOUT 11.2 N ODEM ONNECTION AYOUT KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 4 The present User Guide has been prepared and published by Polycom. This User Guide describes the installation of the KIRK Wireless Server 500. Polycom reserves its right to make revisions of the content without any prior notice whether the changes refer to typographical errors, inaccuracies in actual information or improvements of programs and/or equipment.
  • Page 5 Master Handset. 1.4 KIRK Repeater (Optional) Features Up to 6 Wireless KIRK Repeaters can be added to the KIRK Wireless Server 500 to expand its coverage area. The KIRK Repeaters can be programmed on-site either by using a KIRK Handset or via the ServiceTool.
  • Page 6 RS232 Modem connection MSF, etc. Possibility of connecting up to 8 handsets. Up to six (6) KIRK Repeaters may be added to the system providing additional coverage whenever needed. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 7 Release of the internal spring can be achieved by pushing a 2*0,5 mm or similar small screwdriver into hole 1 or 2 while pushing the stripped wire into hole 3. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 8 It is only possible to subscribe one MASTER Handset on each KIRK Wireless Server 500. The first handset subscribed will automatically become the MASTER Handset. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 9 The MASTER Handset: 1. Press the MENU key. > 2. Press the key until ” EXT. Service ” appears in the display. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 10 “ SUBSCRIPTION CREATE “ appears in the display. 5. Press √. The handset starts searching for ”your” KIRK Wireless Server 500. When the handset finds the system, a number appears in the display that should match the serial number on the rear of the KIRK Wireless Server.
  • Page 11 A long tone indicates that the subscription has succeeded. 8. In the left corner of the display an antenna symbol appears indicating that the handset has been subscribed to the KIRK Wireless Server 500. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 12 6. Press MENU to go back to standby mode. Please note: The only way of removing the Master Handset is via the Administration Program. (Please refer to section 8.4/8.5) KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 13 KIRK Repeaters in chain – in the whole chain - supports either 2 or 4 simultaneous conversations depending on which type of repeater is used. Before installing the KIRK Wireless Server 500 on-site, the number of simultaneous users within different areas of the site and the need of coverage area should be thoroughly discussed and agreed upon with your customer.
  • Page 14 KIRK handset in “testing mode” in the area to be covered by the KIRK Wireless Server 500 and the KIRK Repeater(s). (Please refer to section 6.0). Please notice fulfilling a thorough and careful deployment is essential for optimizing the handover between the KIRK Wireless Server 500 and the KIRK Repeater(s) before final installation of the system.
  • Page 15 “testing mode” to be covered when deploying as well as listening to the audio quality of the handset. The KIRK Handset (subscribed to the KIRK Wireless Server 500) has to be used for checking the signal strength and quality being received securing proper handover.
  • Page 16 KIRK Wireless Server 500. Moving away from the KIRK Wireless Server 500 the value of the RSSI level might drop up to 20 dB and still having a satisfactory audio quality. If the handset shows :X it’s not a failure, but an indication of the RSSI level being = 100 or higher.

  • Page 17: Kirk Repeater

    7.0 KIRK Repeater 7.1 The KIRK Repeater In some situations you might need to expand the coverage area of the KIRK Wireless Server 500. A KIRK Repeater adds a larger area to the already existing coverage area. Please note the following: •...
  • Page 18 7.3 Connection of a KIRK Repeater to the KIRK Wireless Server 500 via a KIRK Handset 1. Power up the KIRK Wireless Server 500 and a subscribed handset. 2. Turn on the KIRK Repeater for more than 1 second and less than 5 seconds .
  • Page 19 7.4 Examples of Different Ways of Installing KIRK Repeaters in solution based on a KIRK Wireless Server 500 7.4.1 Example 1 The KIRK Wireless Server 500 has to be located in the area where most of the phone traffic will take place. KIRK Repeaters in chain can be established. Please note: The KIRK Repeater chain can only handle 2 simultaneous calls if the 2 channel repeater is used or 4 simultaneous calls if the 4 channel repeater is used.
  • Page 20 KIRK Repeater equipped with an optional external antenna amplifying the received signal from the KIRK Wireless Server 500 or the KIRK Repeater it is logged on to. Please note! Only the 2 channel repeater has connection for an external antenna.
  • Page 21 4 Channels 2 Channels 2 Channels Distance > 25 meters (Free sight) KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 22 5. Start the Administration Program and follow the instructions to complete the installation. 8.2 Starting the Administration Program Ensure that the KIRK Wireless Server 500 is powered up and that the serial cable (null- modem cable) is connected. Please refer to the “RS232 cable layout” 11.0 section in this manual for configuration.
  • Page 23 KIRK Wireless Server 500. 3. After a caution message (DECT 500 system detected), the main Administration Program screen appears. 5. For direct communication (Comport 1) go to 8.4 Registering Handsets. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 24 500 (Com 1-10 can be chosen). 3. Set the Connection: to the type of connection required. If a modem connection is set, then a dial up screen will appear. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 25 10 characters. Shown in the display of the DECT handset called by the user. • Local No.: is the handset’s extension number on the attached PBX. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 26 • Standby Text: may contain up to 24 characters. Shown when idle but in range of a KIRK Wireless Server 500. If followed by a space and \L the Local number is displayed as well. • Presentation Text: may contain up to 32 characters. Shown in the display of the DECT handset calling the user.
  • Page 27 Program, the handset can be subscribed to the system. Please note: Subscription is default set to ALLOW in the KIRK Wireless Server 500. (Please refer to section 4.5 Subscribing KIRK Handsets) For further use of the Administration Program please refer to the Help file.
  • Page 28 2. Connect the serial cable to the PC on which the ServiceTool is installed. Mains adapter Modular adapter Serial cable 9.3 Configuration of a KIRK Repeater 1. Start up the ServiceTool application. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 29 Click on Set Comport even if the default setting is correct. Ensure that the KIRK Repeater is connected as indicated below. 3. Select Repeater tab. 4. Click on the Residential Base button. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 30 5. Under the Repeater tab, enter the values required : • Residential Base (KIRK Wireless Server 500): This is the serial number of the KIRK Wireless Server 500. It appears on the label on the rear of the KIRK Wireless Server 500, e.g. 000046416642. •...
  • Page 31 10.0 KIRK Wireless Server 500 CLIP (FSK) Relevant for KIRK Wireless Server 500 CLIP - supporting CLIP (only FSK Bell 202). 10.1 Ring delay adjustment If FSK is sent between 1.st and 2.nd ring signal - a ring delay has to be set to avoid the KWS500CLIP to detect the first ring signal.
  • Page 32 If software upload has to take place the CLIP module has to be removed from the KWS500. 10.5 Password Protection Password Protection is not supported by KWS500CLIP including CLIP functionality. KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 33 (Busy). 6. Continuously flashing red/green light means faulty situation, or in flash programming mode (Power up of the system with the ‘BOOTSTRAP” jumper mounted). KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8...
  • Page 34 12.0 RS232 Cable Layout In the KIRK Wireless Server 500, the connector to the external is an 8-pole modular plug. In the other end of the cable a 25-pin male DSUB is used for connecting to a typical modem, and a 9-pin female DSUB when connecting to a PC or similar equipment.
