Setup

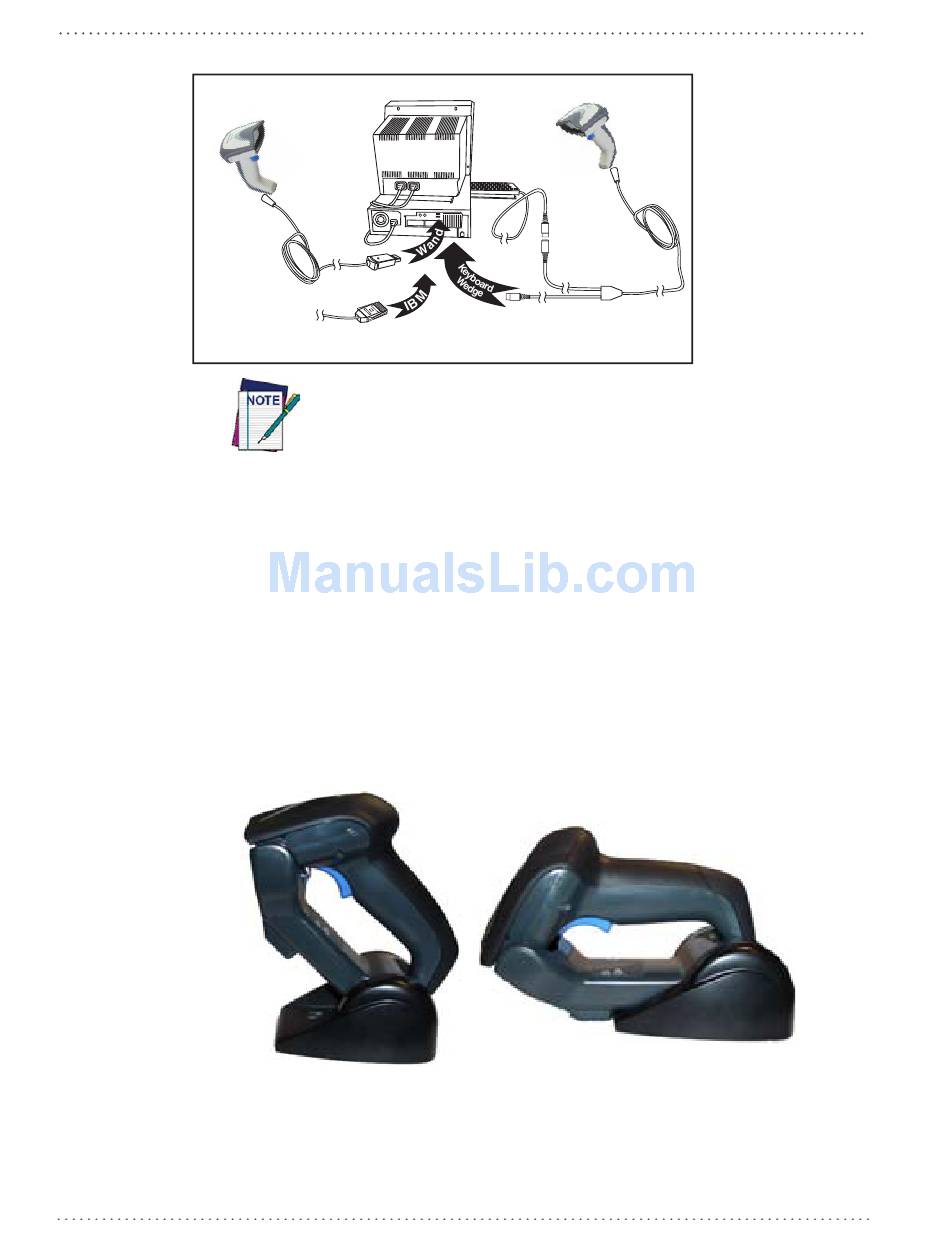

Figure 6. Other Interface Connections
RF Models
The power supply connects directly to the base (not on the cable's jack) for all configurations.
For all interfaces (except RS-232) a power supply is recommended but not necessary, because
the base can be powered from the Host. When the base is powered from the Host, select a slow
charge rate.
Configuring the Base Station
The base charger/station may be configured in desk application to hold the reader in two
different positions, either a horizontal or standing position, in order to provide the most
comfortable use depending on needs.
18
or...
or...
Specific cables are required for connection to different hosts. The connec-
tors illustrated above are examples only. Actual connectors may vary from
those illustrated, but the steps to connect the reader remain the same.
Standing
Horizontal
Gryphon™ I GD44XX/GBT4400
