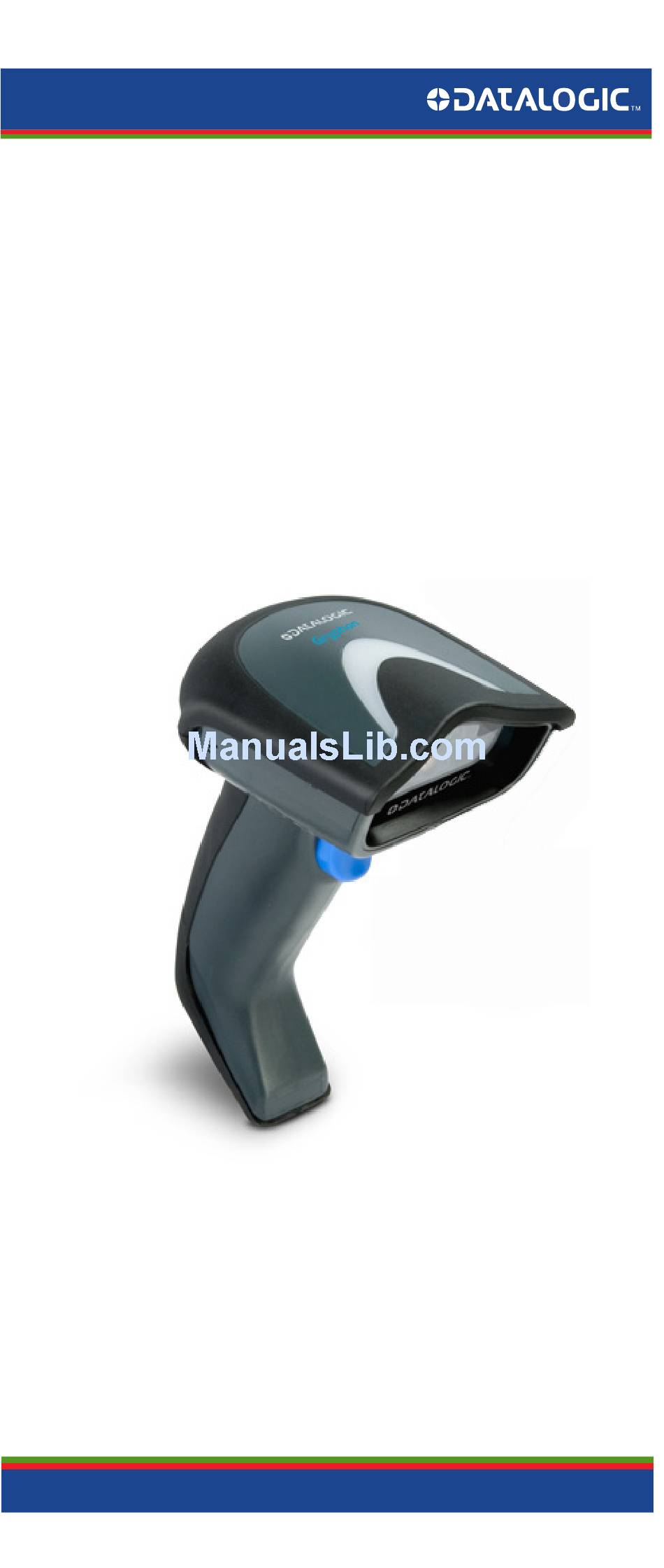

  • Page 1 Gryphon™ I GD44XX General Purpose Corded Handheld Area Imager Bar Code Reader Quick Reference Guide...
  • Page 2 Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. All other brand and product names may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Table of Contents Software Product Policy ................4 Customers Under Software Support ..........4 Description .....................5 Setting Up the Reader ................6 Connect/Disconnect Cable to Reader ........6 Using the Gryphon™ I GD44XX ..............7 Selecting the Interface Type ..............8 Interface Selection ................8 Configuring the Interface ............ 8 Keyboard Interface..............
  • Page 4 NOTES...

  • Page 5: End User License Agreement

    Agreement. If you do not intend to be bound to the terms of this Agreement, Datalogic is not willing to license the Software to you, you may not use the Datalogic Product or the Software, and you must contact the party from whom you acquired the Datalogic Product for instructions.

  • Page 6: Limited Warranty

    Datalogic Product to any third party unless such third party agrees with Datalogic in writing to be bound by the terms and conditions of this Agree- ment. Any such transfer of the Datalogic Product absent such agreement shall be null and void.

  • Page 7: Limitation Of Liability

    Datalogic Scanning, Inc., Legal Department, 959 Terry Street, Eugene, OR 97402. 7.2 In the defense or settlement of any such claim, Datalogic may, at its option, 1) procure for End User the right to continue using the Datalogic Product, 2) modify...

  • Page 8: Software Product Policy

    State of Oregon located in either Multnomah or Lane coun- ties shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located.

  • Page 9: Description

    With rich feature sets and extensive model options, the Gry- ™ phon product series from Datalogic Scanning represents the premium level of data collection equipment for general pur- pose applications. The Gryphon I GD44XX reader has en- hanced optics with improved motion tolerance, allowing...

  • Page 10: Setting Up The Reader

    Setting Up the Reader Setting Up the Reader Follow the steps below to connect and get your reader up and communicating with its host. Connect the Cable to the reader and the Host. Configure the Interface (see page 8). Configure the Reader starting on page 20 (optional, depends on settings needed) Connect/Disconnect Cable to Reader Figure 1.

  • Page 11: Using The Gryphon™ I Gd44Xx

    Using the Gryphon™ I GD44XX Using the Gryphon™ I GD44XX The Gryphon™ I GD44XX normally functions by capturing and decoding codes. The reader is equipped with an internal motion-sensing function which activates the aiming system on device motion. The intelligent aiming system indicates the field of view which should be positioned over the bar code: Aiming System Relative Size and Location of Aiming System Pattern...

  • Page 12: Selecting The Interface Type

    Selecting the Interface Type Selecting the Interface Type Upon completing the physical connection between the reader and its host, proceed directly to Interface Selection below for information and programming for the interface type the read- er is connected to (for example: RS-232, Keyboard Wedge, USB, etc.) and scan the appropriate bar code to select your sys- tem’s correct interface type.
  • Page 13 Selecting the Interface Type RS-232 RS-232 standard interface Select RS232-STD RS-232 Wincor-Nixdorf Select RS232-WN RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS USB Com to simulate RS-232 standard interface Select USB-COM-STD Quick Reference Guide...
  • Page 14 Selecting the Interface Type IBM-46xx Port 5B reader interface Select IBM-P5B IBM-46xx Port 9B reader interface Select IBM-P9B USB-OEM USB-OEM (can be used for OPOS/UPOS/JavaPOS) Select USB-OEM a. Download the correct USB Com driver from www.datalogic.com Gryphon™ I GD44XX...

  • Page 15: Keyboard Interface

    Selecting the Interface Type Keyboard Interface Use the programming bar codes to select options for USB Keyboard and Wedge Interfaces. KEYBOARD AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/ Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &...
  • Page 16 Selecting the Interface Type KEYBOARD (continued) PC/XT w/Standard Key Encoding Select KBD-XT Keyboard Wedge for IBM Terminal 3153 Select KBD-IBM-3153 Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard Select KBD-IBM-M Keyboard Wedge for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard Select KBD-IBM-MB USB Keyboard with alternate key encoding...

  • Page 17: Scancode Tables

    Selecting the Interface Type KEYBOARD (continued) Keyboard Wedge for DIGITAL Terminals VT2xx, VT3xx, VT4xx Select KBD-DIG-VT USB Keyboard with standard key encoding Select USB Keyboard WAND EMULATION Wand Emulation Select WAND Scancode Tables Reference the Gryphon 4400 PRG for information about ™...
  • Page 18 Selecting the Interface Type COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Country Mode = U.S. Country Mode = Belgium Country Mode = Britain Country Mode = Croatia* *Supports only the interfaces listed in the Country Mode feature description Gryphon™ I GD44XX...
  • Page 19 Selecting the Interface Type COUNTRY MODE (Continued) Country Mode = Czech* Country Mode = Denmark* Country Mode = France Country Mode = Germany Country Mode = Hungary* Country Mode = Italy *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
  • Page 20 Selecting the Interface Type COUNTRY MODE (Continued) Country Mode = Japanese 106-key* Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* Country Mode = Romania* Country Mode = Spain *Supports only the interfaces listed in the Country Mode feature description Gryphon™...
  • Page 21 Selecting the Interface Type COUNTRY MODE (Continued) Country Mode = Sweden Country Mode = Slovakia* Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...

  • Page 22: Caps Lock State

    Selecting the Interface Type Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding keyboard is se- lected. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable...

  • Page 23: Numlock

    Selecting the Interface Type Numlock This option specifies the setting of the Numbers Lock (Num- lock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard. ENTER/EXIT PROGRAMMING MODE Numlock = Numlock key unchanged Numlock = Numlock key toggled Quick Reference Guide...

  • Page 24: Programming

    Programming Programming The reader is factory-configured with a set of standard default features. After scanning the interface bar code from the Inter- faces section, select other options and customize your reader through use of the programming bar codes available in the Gryphon I GD44XX PRG.

  • Page 25: Reading Parameters

    Reading Parameters Reading Parameters Move the reader toward the target and center the aiming pat- tern and illumination system to capture and decode the image. for more informa- Using the Gryphon™ I GD44XX on page 7 tion. The aiming system will briefly switch off after the acquisition time, and if no code is decoded will switch on again before the next acquisition.

  • Page 26: Operating Modes

    Operating Modes Operating Modes Scan Mode The imager can be set to operate in one of several scanning modes. See the PRG for more information and settings for any of the options: This mode is associated with typical Trigger Single (Default): handheld reader operation.
  • Page 27 Operating Modes In Stand Mode, the illumination remains on for Stand Mode: a configurable amount of time after a good read occurs. The scanner exits stand mode when movement is detected. If the trigger is activated from stand mode, the scanner transitions into one of the triggered modes.

  • Page 28: Pick Mode

    Operating Modes Pick Mode Specifies the ability of the reader to decode labels only when they are close to the center of the aiming pattern. Pick Mode is a Decoding and Transmission process where bar codes that are not within the configurable distance from the center of the aiming pattern are not acknowledged or transmitted to the host.

  • Page 29: Technical Specifications

    Technical Specifications Technical Specifications The following table contains Physical and Performance Char- acteristics, User Environment and Regulatory information. Item Description Physical Characteristics Color Black Height 7.1”/181 mm Dimensions Length 3.9”/100 mm Width 2.8”/71 mm Weight (without cable) Approximately 6.9 ounces /195.6 g Electrical Characteristics Input Voltage •...
  • Page 30 Technical Specifications Depth of Field (Typical) Symbology 5mil: 1.6” -7.5” (4.0 -19cm) 3mil: 0.9” - 3.6” (2.4 - 9.1cm) Code 39 10mil: 0.4” - 11..8” (1.0 - 30cm) 5 mil: 0.3” - 4.5” (0.8 -11.3cm) 20mil: up to 17.7” (up to 45cm) 7.5mil: 0.5”...
  • Page 31 PPT; Code 32 (Italian Pharmacode 39); Code 128; Code 128 ISBT; Interleaved 2 of 5 ; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/Chinese 2 of 5);...

  • Page 32: Led And Beeper Indications

    LED and Beeper Indications ESD Level 16 KV Regulatory Electrical Safety UL 60950, CSA C22.2 No. 60950, IEC 60950 North America (FCC) : Part 15 Class B; Canada ( IC) : ICES- 003 Class B; Russia ( Gost); European Union EMC Directive; EMI/RFI VCCI-Japan;...
  • Page 33 LED and Beeper Indications Indicator Description Beeper There is an error in Reader sounds one ROM Failure the reader's soft- Flashes error beep at high- ware/programming est volume. Reader 'chirps' six Limited Indicates that a times at the high- Scanning Label host connection is est frequency and Read...
  • Page 34 LED and Beeper Indications The following indications ONLY occur Programming Mode when the reader is in Programming Mode INDICATION DESCRIPTION BEEPER Reader sounds Label Program- A valid programming LED blinks four low fre- continuously ming Mode Entry label has been scanned. quency beeps.

  • Page 35: Error Codes

    Error Codes Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. Press and release the trig- ger to hear the FRU indication code.

  • Page 36: Cleaning

    Cleaning Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris accumulation require periodic cleaning to ensure best performance during scanning operations. Always use a soft, lint-free cloth or lens tissue dampened with isopropyl alcohol (or equivalent) or water-based window cleaner.

  • Page 37: Regulatory Information

    Any changes or modifications to equipment, not expressly ap- proved by Datalogic could void the user's authority to operate the equipment. Statement of Agency Compliance This device complies with part 15 of the FCC Rules. Opera-...

  • Page 38: Fcc Rf Radiation Exposure Statement

    Regulatory Information FCC RF Radiation Exposure Statement Exposure to Radio-Frequency Radiation CAUTION To comply with FCC RF exposure compliance requirements, for mobile configurations, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.

  • Page 39: Imager Labeling

    Regulatory Information Imager Labeling Sample labels are shown here to illustrate their location only. Please view the labels on your product for actual details, as they may vary from those depicted. Scanner Regulatory Label Aiming System ™ The Gryphon aiming system meets the Class 2 require- ments for laser safety.
  • Page 40 Regulatory Information LA LUCE DIE LASER-STRAH- LE RAYON A LUZ LÁSER ES LASER È VISI- LUNG IST FÜR DAS LASER EST VISI- VISIBLE AL OJO BILE MENSCHLICHE BLE À L'OEIL HUMANO Y ES ALL'OCCHIO AUGE SICHTBAR NU ET IL EST EMITIDA POR UMANO E UND WIRD AM...
  • Page 41 Regulatory Information The product utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known bio- logical damage, avoid staring at the beam as one would with any very strong light source, such as the sun. Avoid that the la- ser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc.
  • Page 42 Regulatory Information Es ist nicht notwendig, das Gerät wegen Betrieb oder Installa- tions-, und Wartungs-Arbeiten zu öffnen. Jegliche Änderungen am Gerät sowie Vorge- hensweisen, die nicht in dieser Betriebsanlei- tung beschreiben werden, können ein gefährliches Laserlicht verursachen. ACHTUNG Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B.
  • Page 43 Regulatory Information ESPAÑOL Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se re- fieren al uso correcto del terminal. NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER Este aparato resulta conforme a las normativas vigentes de se- guridad láser a la fecha de producción: CDRH 21 CFR 1040 y EN 60825-1.

  • Page 44: Weee Statement

    Waste Electrical and Electronic Equipment (WEEE) Statement English For information about the disposal of Waste Electrical and Electronic Equipment (WEEE), please refer to the website at www.scanning.datalogic.com. Italian Per informazioni sullo smaltimento delle apparecchiature elettriche ed elettroniche consultare il sito Web www.scanning.datalogic.com.

  • Page 45: Warranty

    Datalogic. Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Data- logic shall assume risk of loss or damage for product in Datalogic's possession or product being returned to Customer by Datalogic, except such loss or damage as may be caused by the negligence of Customer, its agents or employees.

  • Page 46: Ergonomic Recommendations

    Provide adequate clearance • Provide a suitable working environment • Improve work procedures. Services and Support Datalogic provides several services as well as technical support through its website. Log on to and click on the www.scanning.datalogic.com links indicated for further information. Products...

  • Page 47: Declaration Of Conformity

    DECLARATION OF CONFORMITY EC-65 Rev.: 0 Pag.: 1 di 1 Datalogic Scanning, Inc. 959 Terry St. Eugene, OR 97402 dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el Gryphon GD4400; Barcode Reader e tutti i suoi modelli and all its models et tous ses modèles...
  • Page 48 Datalogic Scanning, Inc Telephone: [33].01.64.86.71.00 Telephone: (305) 742-2206 france.scanning@datalogic.com latinamerica.scanning@datalogic.com Germany Singapore Datalogic Scanning GmbH Datalogic Scanning Singapore PTE LTD Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Iberia Datalogic Scanning India Datalogic Scanning SAS Sucursal en Telephone: 91- 22 - 64504739 España...
