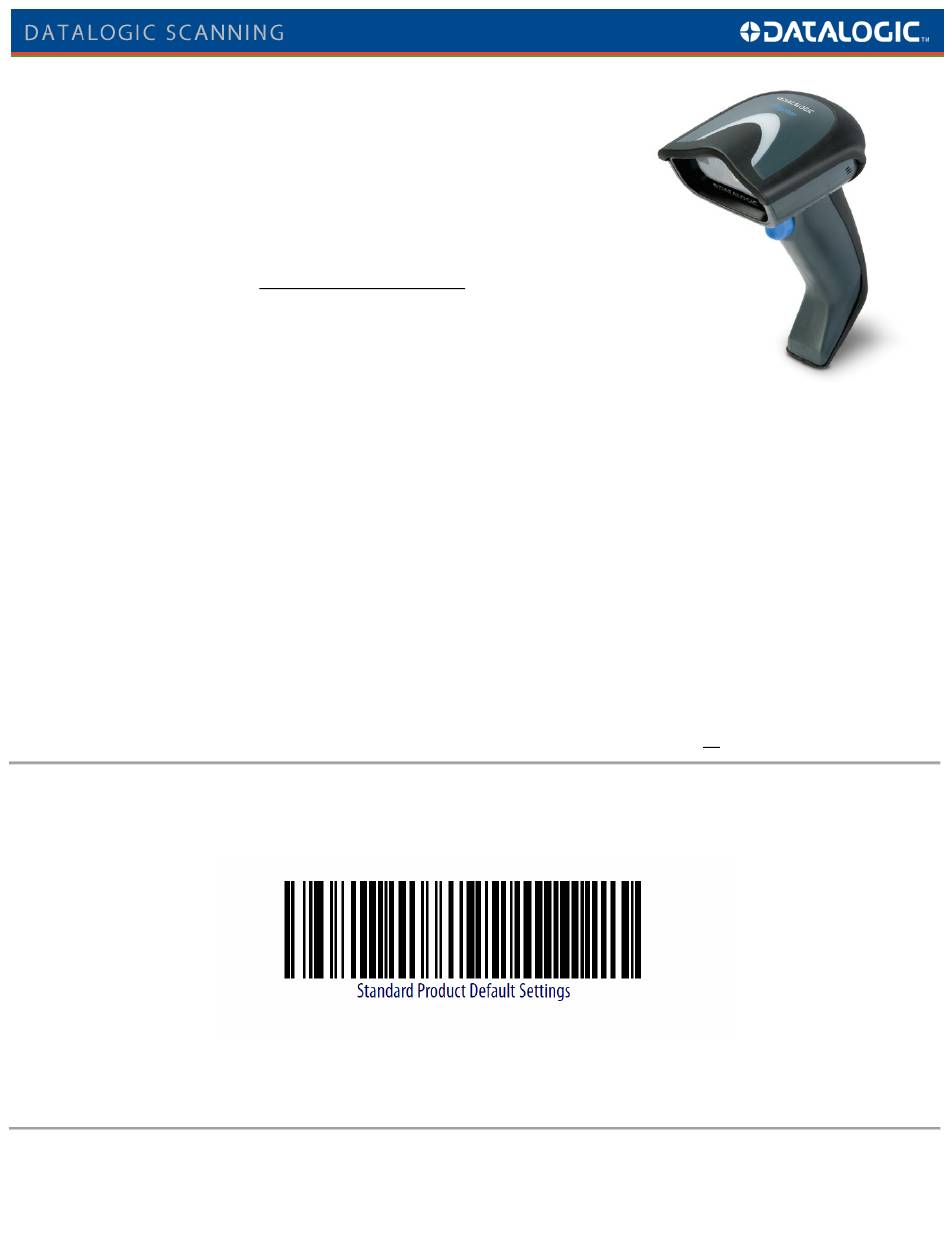

Gryphon™ I GD4130

General Purpose USB Corded Handheld - Linear Imager 1D Barcode Reader

DECODING CAPABILITY

1D / LINEAR CODES - Auto discriminates all standard 1D codes including

GS1 DataBar™ linear codes

WARRANTY

5-Year Factory Warranty – www.scanning.datalogic.com

DATALOGIC WEBSITE SUPPORT

The Datalogic website is the complete source for technical support and

information for Datalogic products. The site offers product support,

registration, warranty information, product manuals, product tech notes,

software updates, demos and instructions for returning products for repair.

TELEPHONE & TECHNICAL SUPPORT

If you do not have internet or email access, you may contact Datalogic technical support at (541)349-8283 or check the back

cover of your manual for more contact information.

UNPACKING

Check carefully to ensure the Reader and Cable are present and undamaged. If any damage has occurred in shipment or if

items appear to be missing, contact Technical Support immediately. This unit is powered through its USB connection to

your computer.

Should the unit require service, it must be returned in its original shipping container with all its original contents.

Resetting Standard Product Defaults

If you aren't sure what programming options are in your Reader, or you've changed some options and want the factory

settings restored, the barcode below will restore the factory configuration for the currently active interface.

DO NOT scan the ENTER/EXIT Programming Mode prior to scanning the Standard Product Default Settings.

PDS Tech Support 800.286.8929 option 2

Datalogic Scanning, Inc. - USA

959 Terry Street

Eugene, OR 97402

(541) 683-5700

KEEP THE PACKAGING

~ (tone pattern) # # > # # # # ~

Datalogic Tech Support 541.349.8283

Page 1 of 4

Page 1 TELEPHONE & TECHNICAL SUPPORT If you do not have internet or email access, you may contact Datalogic technical support at (541)349-8283 or check the back cover of your manual for more contact information.
Page 2 This section provides programming barcodes to configure your Reader for use with the USW program. Scan the barcodes on the following pages in order of appearance. You will begin and end with the Enter/Exit Programming Mode barcode. When the Reader is in Programming Mode its top LED blinks continuously and after you scan each barcode the Reader will emit a specific (tone pattern).
Page 3 I 2 of 5 Length Control This setting specifies that Fixed Length Decoding will be used for the Interleaved 2 of 5 Symbology. ~ (tone pattern) # # ~ I 2 of 5 Set Length 1 This setting specifies the minimum Fixed Length in Fixed Length Decoding. ~ (tone pattern) # ~ Set the I 2 of 5 Fixed Read Length 1 Scan the following two numeric barcodes one after another to set the Fixed Length 1.
Page 4 Set the I 2 of 5 Fixed Read Length 2 The setting codes that follow instruct the Reader to ignore the Fixed Read Length 2 and provides for one Fixed Length. ~ (tone pattern) # ~ Set the Fixed Read Length 2 Scan the following two numeric barcodes one after another to set the Fixed Length 2.
