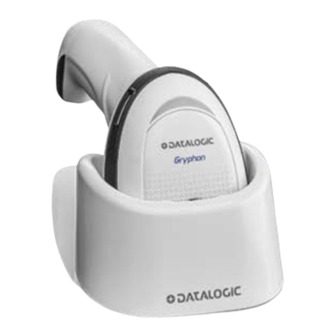

Page 1 Gryphon™ 2D Family Gryphon I GD/GBT/GM4500 PRODUCT REFERENCE GUIDE General Purpose Handheld Area Imager Bar Code Reader...
Page 2 Gryphon is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Datalogic S.p.A. and/or its affiliates is under license. All other trademarks and brands are property of their respective owners.
Page 3: Table Of Contents
Replacing the Battery Pack ..................... 20 Using the Gryphon™ I GD/GBT/GM4500 ................22 Linking the Reader ......................24 Link Datalogic Devices to Base ......................24 Link Reader as Serial Device to a Bluetooth Host ................24 Link Reader as HID device to a Bluetooth host ................24...
Page 4 Interface Selection ......................26 Configuring the Interface ....................26 Customizing Configuration Settings .................30 Using the Programming Bar Codes ....................30 Datalogic Aladdin™ Utility ........................ 30 Interface Settings ..........................30 Configuring Other Features ......................31 Software Version Transmission ....................... 31 Resetting the Product Configuration to Defaults ................31 Restore Custom Default Configuration ..................
Page 5 TABLE OF CONTENTS IBM 46XX INTERFACE ....................80 IBM 46xx Interface Options .......................81 DATA FORMAT ......................82 GLOBAL SETTINGS ...........................83 Global Prefix/Suffix ........................83 Case Conversion ........................84 Character Conversion .......................84 Global AIM ID ..........................85 GS1-128 AIM ID .........................85 LABEL ID ............................86 Label ID: Pre-loaded Sets ......................86 Label ID: Set Individually Per Symbology ................87 Label ID Control ........................87...
Page 6 TABLE OF CONTENTS UPC-A Check Character Transmission ..................120 Expand UPC-A to EAN-13 ......................121 UPC-A Number System Character Transmission ..............121 UPC-E ..............................122 UPC-E Enable/Disable ......................122 UPC-E Check Character Transmission ..................122 Expand UPC-E to EAN-13 ......................123 Expand UPC-E to UPC-A ......................123 UPC-E Number System Character Transmission ..............123 GTIN Formatting ........................124 EAN-13 ............................125 EAN-13 Enable/Disable ......................125...
Page 7 Compressed 2 of 5 Set Length 2 ....................169 DATALOGIC 2 OF 5 ..........................170 Datalogic 2 of 5 Enable/Disable ....................170 Datalogic 2 of 5 Check Character Calculation ................170 Datalogic 2 of 5 Check Character Transmission ..............171 Datalogic 2 of 5 Length Control ....................171 Datalogic 2 of 5 Set Length 1 ....................172...
Page 8 TABLE OF CONTENTS IATA Enable/Disable .......................176 IATA Check Character Transmission ..................176 FOLLETT 2 OF 5 ..........................177 Follett 2 of 5 Enable/Disable ....................177 CODABAR ............................178 Codabar Enable/Disable ......................178 Codabar Check Character Calculation ...................178 Codabar Check Character Transmission ................179 Codabar Start/Stop Character Transmission ................179 Codabar Start/Stop Character Set ..................180 Codabar Start/Stop Character Match ..................180 Codabar Quiet Zones ......................181...
Page 9 TABLE OF CONTENTS BC412 ...............................205 BC412 Enable/Disable ......................205 BC412 Check Character Calculation ..................205 BC412 Length Control ......................206 BC412 Set Length 1 ........................207 BC412 Set Length 2 ........................207 2D SYMBOLOGIES ....................... 208 2D GLOBAL FEATURES ........................209 2D Maximum Decoding Time ....................210 2D Structured Append ......................211 2D Normal/Inverse Symbol Control ..................211 AZTEC CODE ............................212...
Page 10 TABLE OF CONTENTS Postal Code Selection ......................234 Postnet BB Control .........................235 OCR DECODING ......................236 OCR Decoding Predefined Templates ..................237 MOTION FEATURES ..................... 238 Motionless Timeout ........................239 Motion Sensitivity ........................239 High Motion Immunity ......................240 Motion Aiming Control ......................240 POWER MANAGEMENT ....................241 POWER SAVE ..........................242 Powerdown Timeout ......................242 BATTERY PROFILES ........................243...
Page 11 TABLE OF CONTENTS ACK Character ..........................272 NAK Character ..........................273 ACK NAK Timeout Value .........................274 ACK NAK Retry Count ........................275 Disable Character ..........................276 Enable Character ..........................277 Keyboard Interface ....................... 278 Wedge Quiet Interval ........................278 Intercharacter Delay ........................279 Intercode Delay ..........................280 Data Format ........................ 281 Data Editing .............................281 Please Keep In Mind...
Page 12 TABLE OF CONTENTS GS1 Databar™ (RSS) ........................331 GS1 Databar™ (-14) ........................331 2D Barcodes ............................332 APPENDIX D. KEYPAD ..................334 APPENDIX E. SCANCODE TABLES ................ 336 Control Character Emulation ..................336 Single Press and Release Keys ......................336 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE ......337 Interface Type PC AT PS/2, USB-Keyboard or USB-Keyboard for APPLE (continued) ..
Page 13: Preface
Programming can alternatively be performed using the Datalogic Aladdin™ Configura- tion application, which is available from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC.
Page 14: Manual Conventions
TECHNICAL SUPPORT Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to (www.datalogic.com). For quick access, from the home page click on the search icon , and type in the name of the product you’re looking for.
Page 15: Chapter 1. Introduction
ABOUT THE READER With rich feature sets and extensive model options, the Gryphon™ product series from Datalogic represents the premium level of data collection equipment for general pur- pose applications. The Gryphon I GD4500 reader has enhanced Megapixel optics with...
Page 16: Battery Safety
NOTE: Before installing the Battery, read “Battery Safety” on this and the following pages. Datalogic recommends annual replacement of recharge- able battery packs to ensure maximum performance. WARNING: Do not discharge the battery using any device except for the reader.
Page 17 Use only the authorized power supplies, battery pack, chargers, and docks supplied by your Datalogic reseller. The use of any other power supplies can damage the device and void your warranty. Do not disassemble or modify the battery. The battery contains safety and protection devices, which, if damaged, may cause the battery to generate heat, explode or ignite.
Page 18: Programming The Reader
Aladdin also facilitates image capturing. In addition, Aladdin makes it easy to upgrade the handheld’s firmware, to attain the benefits of new reader features. Reference the Datalogic Aladdin™ Online Help for more details. Aladdin is available for download free of charge on the Datalogic website.
Page 19: Chapter 2. Setup
GBT/GM45 and spare battery pack parts must be periodically recharged : for instance by using a WLC4090 base station powered up with a 12V Datalogic AC/DC adapter (cod. 8-0935) for at least 30 minutes each 3 months.
Page 20: Connect Host Interface
SETUP CONNECT HOST INTERFACE The reader kit you ordered to match your interface should provide a compatible cable for your installation. If this is not so, contact " Technical Support" on page xiv The reader can communicate using the interfaces illustrated below. For corded versions, connect the reader cable by inserting the cable into the handle as shown in the following Figure.
Page 21: Keyboard Wedge Connection
CONNECT HOST INTERFACE Keyboard Wedge Connection The Keyboard Wedge cable has a ‘Y’ connection from the reader. Connect the female to the male end from the keyboard and the remaining end at the keyboard port at the ter- minal/PC. Keyboard Wedge (KBW): When connected using this interface, the host interprets scanned data as keystrokes and supports several international keyboards (for the Win- dows®...
Page 22: Stand Installation
SETUP STAND INSTALLATION Hands-Free Stand/Holder An accessory is available which holds the reader (except those with integrated stand) at a convenient angle, allowing hands free scanning of items. It can also be used as a holder. The holder “cup” can be positioned in any of the angles shown in the figure below.
Page 23: Setting Up The Gryphon™ Gm/Gbt4500 Reader
* that battery packs of the stocked products GBT/GM45 and spare battery pack parts must be periodically recharged: for instance by using a WLC4090 base station powered up with a 12V Datalogic AC/DC adapter (cod.8-0935) for at least 30 minutes each 3 months..
Page 24: Positioning The Base Station
SETUP POSITIONING THE BASE STATION The base station may be set up in desk application to hold the reader in three different positions, either a horizontal or standing or vertical position, in order to provide the most comfortable use depending on the needs. Base Station Positions and Related Clips to be Used Figure 7 - Horizontal Position The base station may be set up in desk application to hold the reader in three different...
Page 25 POSITIONING THE BASE STATION Figure 9 - Vertical Position This position is preferred when lack of room on the desktop recommends the reader to be left vertical during recharging. 1. Insert the appropriate parts for the desired base station position. 2.
Page 26 SETUP 3. Using your thumbs, push open the plastic tabs on the bottom of the base to free the wing holders. 4. The stand can now be repositioned in either horizontal or standing position. NOTE: To improve the robustness (against accidental falls) of the base sta- tion in Presentation Position, it is suggested to add the Shock Absorber addendum as illustrated below.
Page 27: Reader, Base Station And Leds Description
READER, BASE STATION AND LEDS DESCRIPTION READER, BASE STATION AND LEDS DESCRIPTION provide information about the battery charging status as well as LEDs on the gun data transmission. Figure 10 - Gryphon 4500 Gun LEDs 1. Scan Window 3. Battery & Recharge LED 2.
Page 28: Connecting The Base Station
SETUP CONNECTING THE BASE STATION The following figure shows how to connect the base station to a terminal, PC or other host device. Turn off the host before connection and consult the manual for that equip- ment (if necessary) before proceeding. Connect the interface cable before applying power to the Base Station.
Page 29: Securing The Dc Power Cord (Optional)
CONNECTING THE BASE STATION Securing the DC Power Cord (Optional) The DC power cord for the adapter can be secured to the bottom of the base in order to maximize the mechanical retention of the cable itself. The routing of the cable can be changed to accommodate base station positioning: horizontal or vertical mount.
Page 30: Host Connection
SETUP Host Connection Verify before connection that the reader’s cable type is compatible with your host equipment. Most connections plug directly into the host device as shown in Figure 15. Keyboard Wedge interface cables have a ‘Y’ connection where its female end mates with the male end of the cable from the keyboard and the remaining end at the key- board port on the terminal/PC as shown in Figure 15.
Page 31: System And Network Layouts
SYSTEM AND NETWORK LAYOUTS SYSTEM AND NETWORK LAYOUTS Stand Alone Layouts Figure 17 - Single Reader Layout GRYPHON™ HOST BASE STATION Figure 18 - Multiple Reader Layout HOST GRYPHON™ BASE STATION In stand alone systems, each base station is connected to a single Host. Figure 19 - Multiple Stand Alone Layouts PRODUCT REFERENCE GUIDE...
Page 32: Using The Gbt/Gm4500 Reader
SETUP Many stand alone connections can operate in the same physical area without interfer- ence, provided all readers and base stations in the system have different addresses. USING THE GBT/GM4500 READER Reader LEDs Specific LEDs on the Gryphon reader provide information about: good reading result (3GL), battery status.
Page 33: Using The Wlc4090 Radio Base
Green fading = battery level 50 to 99% Amber fading = battery level 0 to 49% The capacitive touch button can be used to force device connection via the Datalogic Aladdin Software tool and for paging the reader when it is activated. See also...
Page 34: Replacing The Battery Pack
SETUP REPLACING THE BATTERY PACK NOTE: Before proceeding, read “Battery Safety” on page 2 . To ensure max- imum performance, Datalogic recommends the replacement of the rechargeable battery pack if you note either of the following conditions: • battery life drops below approximately 80% of the original life;...
Page 35 REPLACING THE BATTERY PACK 3. Insert the new battery in the same position. 4. Replace the battery holder cap, plug in the connector and return the contacts cir- cuit to its previous location. NOTE: When inserting the new battery into the handle, take care to position the battery and the connector as illustrated above.
Page 36: Using The Gryphon™ I Gd/Gbt/Gm4500
SETUP USING THE GRYPHON™ I GD/GBT/GM4500 The Gryphon™ I 4500 Family normally functions by capturing and decoding codes. The aiming system is activated on trigger pull and indicates the center of the field of view which should be positioned over the bar code: Aiming System Relative Size and Location of Aiming System Pattern 2D Matrix Symbol...
Page 37 USING THE GRYPHON™ I GD/GBT/GM4500 A red beam illuminates the label. The field of view indicated by the aiming system will be smaller when the reader is closer to the bar code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit.
Page 38: Linking The Reader
SETUP LINKING THE READER Link Datalogic Devices to Base Before configuring the interface it is necessary to link the handheld with the base. To link the handheld and the base simply put it into the base. If the reader was previ- ously linked to another base, you must first scan the Unlink bar code before re-linking to the new base.
Page 39: Bluetooth Passkey Or Pin Code Entry Request
BLUETOOTH PASSKEY OR PIN CODE ENTRY REQUEST NOTE: The Gryphon I GBT4500 can be set up to authenticate the remote system when connecting, by entering a Bluetooth passkey or a PIN code. If you want to set the security level and authentication options suitable for your application, or when adding new equipment to a system that requires authentication or uses a custom security PIN, please see the "...
Page 40: Interface Selection
Keyboard Wedge (see note at page 7 • IBM46XX port 9b (a specific cable is required) • Datalogic Magellan s' specific interface Scanner CONFIGURING THE INTERFACE Scan the programming bar code from the following section which selects the appropri- ate interface type to match the system the reader will be connected to. Next, proceed to the corresponding chapter in this manual (also listed in the table) to configure any desired settings and features associated with that interface.
Page 41 Select RS-232 OPOS USB-COM USB-COM (simulates RS-232 standard interface) $P,HA47,P Select USB-COM-STD USB-Composite (combines USB-KBD emulation and USB-COM $P,HA4D,P Select USB-Composite a. USB-COM driver needs to be installed for these interfaces to work. Please download it from www.datalogic.com PRODUCT REFERENCE GUIDE...
Page 42 Select USB HID POS USB Toshiba TEC $P,HA41,P Select USB Toshiba TEC Datalogic Magellan Scanners' specific interface, USB AUX $P,HA40,P Select Datalogic Magellan Scanners' USB AUX Datalogic Magellan RS232 AUX port $P,HA43,P Magellan RS232 AUX port USB-OEM USB-OEM (can be used for OPOS/UPOS/JavaPOS)
Page 43 CONFIGURING THE INTERFACE KEYBOARD AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding $P,HA29,P Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard $P,HA11,P Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key $P,HA26,P Select KBD-AT-ALT...
Page 44: Customizing Configuration Settings
Datalogic Aladdin™ is a multi-platform utility program providing a quick and user- friendly configuration method via the RS-232/USB-COM interface. The Aladdin utility is available on the Datalogic website. Aladdin allows you to program the reader by select- ing configuration commands through a user-friendly graphical interface running on a PC.
Page 45: Configuring Other Features
CUSTOMIZING CONFIGURATION SETTINGS Configuring Other Features If your installation requires different programming than the standard factory default settings, the following sections of this manual allow configuration of non-interface-spe- cific settings you might require: Configuration Using Bar Codes: General Features includes programming for scanning, beeper and LED indicators and other such universal settings.
Page 46: Restore Factory Configuration
SETUP Restore Factory Configuration If you want to restore the Factory Configuration for your reader, scan either the Restore USA Factory Configuration bar code or the Restore EU Factory Configuration bar code below. Both labels restore the reader configuration to the factory settings, including the interface type.
Page 47: Chapter 3. Configuration With Bar Codes
CHAPTER 3 CONFIGURATION WITH BAR CODES This and following sections provide programming bar codes to configure your reader by changing the default settings. For details about additional methods of programming, see " Customizing Configuration Settings" on page 30 NOTE: You must first enable your PowerScan to read bar codes in order to use this section.
Page 48: Symbology-Specific Parameters
CONFIGURATION WITH BAR CODES Symbology-specific parameters: define 1D Symbologies, starting on page 118 2D Symbologies, starting on page 208 options for all symbologies and provides the programming bar codes necessary for con- figuring these features. NOTE: You must first enable your reader to read bar codes in order to use this section.
Page 49: Global Interface Features
GLOBAL INTERFACE FEATURES ENTER/EXIT PROGRAMMING MODE GLOBAL INTERFACE FEATURES The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual. Host Commands — Obey/Ignore This option specifies whether the reader will obey or ignore host commands. When set to ignore, the reader will ignore all host commands except those necessary for: •...
Page 50: Rs-232 Interface
CONFIGURATION | RS-232 INTERFACE Use the programming bar codes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in RS-232/USB-COM Settings, starting on page 42 SECTION CONTENTS...
Page 51: Rs-232 Standard Settings
RS-232 STANDARD SETTINGS ENTER/EXIT PROGRAMMING MODE RS-232 STANDARD SETTINGS Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device. With an improper baud rate set- ting, data may not reach the host correctly.
Page 52: Data Bits
ENTER/EXIT PROGRAMMING MODE RS-232 INTERFACE Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data. $CR2DA00 7 Data Bits $CR2DA01  8 Data Bits NOTE: Handheld and base station models support the 8-bit ASCII protocol. The 7-bit ASCII protocol support is subject to specific firmware release.
Page 53: Parity
RS-232 STANDARD SETTINGS ENTER/EXIT PROGRAMMING MODE Parity This feature specifies parity required for sending and receiving data. A parity check bit is the most significant bit of each ASCII coded character. Select the parity type according to host device requirements. •...
Page 54: Handshaking Control
ENTER/EXIT PROGRAMMING MODE RS-232 INTERFACE Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Hand- shaking Control includes the following options: •...
Page 55: Rs-232/Usb-Com Interfaces
CONFIGURATION | RS-232/USB-COM INTERFACES SECTION CONTENTS • Intercharacter Delay • ACK NAK Timeout Value • Beep On ASCII BEL • ACK NAK Retry Count • Beep On Not on File • ACK NAK Error Handling • ACK NAK Options • Indicate Transmission Failure •...
Page 56: Rs-232/Usb-Com Settings
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES RS-232/USB-COM SETTINGS Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments.
Page 57: Beep On Ascii Bel
RS-232/USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE Beep On ASCII BEL When this parameter is enabled, the reader issues a beep when a <BEL> character is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event.
Page 58: Ack Nak Options
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data prop- erly, and sends “NAK” when the data is in error. Options are: •...
Page 59: Ack Character
RS-232/USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See " ACK Character" on for more detailed programming instructions.
Page 60: Ack Nak Timeout Value
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. See "...
Page 61: Ack Nak Error Handling
RS-232/USB-COM SETTINGS ENTER/EXIT PROGRAMMING MODE ACK NAK Error Handling This feature specifies the method the reader uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...
Page 62: Disable Character
ENTER/EXIT PROGRAMMING MODE RS-232/USB-COM INTERFACES Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. See " Disable Character" for more detailed programming instructions. on page 276 Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
Page 63: Keyboard Interface
CONFIGURATION | KEYBOARD INTERFACE SECTION CONTENTS OUNTRY starting on page 50 • Setting Country Mode THER EYBOARD ARAMETERS starting on page 65 • Encoding Type • Keyboard Send Control Characters • ALT Output Type • Wedge Quiet Interval • Caps Lock State •...
Page 64: Country Mode
COUNTRY MODE This feature specifies the country/language supported by the keyboard. The Country Mode setting is ignored if the interface uses alternate key encoding. SETUP ON PC TO USE ALT UNIVERSAL 1. Open Registry Edit 2. Set EnableHexNumpad to 1 as follows: 3.
Page 65: Setting Country Mode
COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode $CKBCO00  United States $CKBCO01 French International (Belgian French) $CKBCO02 United Kingdom $CKBCO03 Danish $CKBCO04 French (France) $CKBCO05 German $CKBCO06 Italian PRODUCT REFERENCE GUIDE...
Page 66 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO07 Norwegian $CKBCO08 Portuguese (Portugal) $CKBCO09 Spanish $CKBCO0A Swedish $CKBCO0B Swiss French $CKBCO0C Japanese ASCII $CKBCO0D Hungarian GRYPHON™ I GD/GBT/GM4500...
Page 67 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO0E Czech $CKBCO0F SlovaK $CKBCO10 Romanian $CKBCO11 Croatian $CKBCO12 Polish_214 $CKBCO13 French Canadian Win7 $CKBCO14 Lithuanian PRODUCT REFERENCE GUIDE...
Page 68 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO17 Vietnamese $CKBCO18 Russian $CKBCO19 Arabic 101 $CKBCO1A Chinese ASCII $CKBCO1B Thai-Kedmanee $CKBCO1C Albanian $CKBCO1D Arabic 102 GRYPHON™ I GD/GBT/GM4500...
Page 69 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO1E Arabic 102 AZERTY $CKBCO1F Azeri Cyrillic $CKBCO20 Azeri Latin $CKBCO21 Belarusian $CKBCO22 Bosnian Cyrillic $CKBCO23 Bosnian Latin $CKBCO24 Bulgarian Cyrillic PRODUCT REFERENCE GUIDE...
Page 70 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO25 Bulgarian Latin $CKBCO26 Canadian French (Legacy) $CKBCO27 Canadian Multilingual $CKBCO28 Chinese (Simplified) $CKBCO29 Chinese (Traditional) $CKBCO2A Czech Programmers $CKBCO2B Czech QWERTY GRYPHON™ I GD/GBT/GM4500...
Page 71 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO2C Dutch Netherland $CKBCO2D Estonian $CKBCO2E Faeroese $CKBCO2F Finnish $CKBCO30 French (Canada) 2000/XP $CKBCO31 French (Canada) 95/98 $CKBCO32 Galician PRODUCT REFERENCE GUIDE...
Page 72 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO33 Greek $CKBCO34 Greek Latin $CKBCO35 Greek Polytonic $CKBCO36 Greek220 $CKBCO37 Greek220 Latin $CKBCO38 Greek319 $CKBCO39 Greek319 Latin GRYPHON™ I GD/GBT/GM4500...
Page 73 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO3A Hebrew Israel $CKBCO3B Hungarian_101KEY $CKBCO3C Icelandic $CKBCO3D Irish $CKBCO3E Italian_142 $CKBCO3F Japanese (Shift-JIS) $CKBCO40 Kazakh PRODUCT REFERENCE GUIDE...
Page 74 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO41 Korean (Hangul) $CKBCO42 Korean ASCII $CKBCO43 Kyrgyz Cyrillic $CKBCO44 Latin America $CKBCO45 Latvian $CKBCO46 Latvian QWERTY $CKBCO47 Lithuanian_IBM GRYPHON™ I GD/GBT/GM4500...
Page 75 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO48 Macedonian -FYROM $CKBCO49 Maltese_47KEY $CKBCO4A Mongolian-Cyrillic $CKBCO4B Polish Programmer $CKBCO4C Portuguese Brazil $CKBCO4D Portuguese Brazilian ABNT $CKBCO4E Portuguese Brazilian ABNT2 PRODUCT REFERENCE GUIDE...
Page 76 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO4F Romanian Legacy $CKBCO50 Romanian Programmer $CKBCO51 Romanian Standard $CKBCO52 Russian Typewriter $CKBCO53 Serbian Cyrillic $CKBCO54 Serbian Latin $CKBCO55 Slovak QWERTY GRYPHON™ I GD/GBT/GM4500...
Page 77 COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Setting Country Mode (continued) $CKBCO56 Slovenian $CKBCO57 Spanish Variation $CKBCO58 Swiss German $CKBCO59 Tatar $CKBCO5A Turkish F $CKBCO5B Turkish Q $CKBCO5C Ukrainian PRODUCT REFERENCE GUIDE...
Page 78 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Setting Country Mode (continued) $CKBCO5D US Dvorak $CKBCO5E US Dvorak Left Hand $CKBCO5F US Dvorak Right Hand $CKBCO60 US English (Mac) $CKBCO61 US English (North American) $CKBCO62 US International $CKBCO63 Uzbek Cyrillic GRYPHON™ I GD/GBT/GM4500...
Page 79: Other Keyboard Parameters
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE OTHER KEYBOARD PARAMETERS Encoding Type $CENCO00  Encoding Type = Don’t Use Encoding $CENCO03 Encoding Type = UTF_8 $CENCO04 Encoding Type = Windows 874 $CENCO05 Encoding Type = Windows 932 $CENCO06 Encoding Type = Windows 936 $CENCO07 Encoding Type = Windows 949 $CENCO08...
Page 80 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO09 Encoding Type = Windows 1250 $CENCO0A Encoding Type = Windows 1251 $CENCO0B Encoding Type = Windows 1252 $CENCO0C Encoding Type = Windows 1253 $CENCO0D Encoding Type = Windows 1254 $CENCO0E Encoding Type = Windows 1255 $CENCO0F Encoding Type = Windows 1256 GRYPHON™...
Page 81 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO10 Encoding Type = Windows 1257 $CENCO11 Encoding Type = Windows 1258 $CENCO12 Encoding Type = Windows 20866 $CENCO31 Encoding Type = Windows 54936 $CENCO13 Encoding Type = ISO 8859-1 $CENCO14 Encoding Type = ISO 8859-2 $CENCO15 Encoding Type = ISO 8859-3...
Page 82 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO16 Encoding Type = ISO 8859-4 $CENCO17 Encoding Type = ISO 8859-5 $CENCO18 Encoding Type = ISO 8859-6 $CENCO19 Encoding Type = ISO 8859-7 $CENCO1A Encoding Type = ISO 8859-8 $CENCO1B Encoding Type = ISO 8859-9 $CENCO1C Encoding Type = ISO 8859-10 GRYPHON™...
Page 83 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO1D Encoding Type = ISO 8859-11 $CENCO1E Encoding Type = ISO 8859-13 $CENCO1F Encoding Type = ISO 8859-14 $CENCO20 Encoding Type = ISO 8859-15 $CENCO21 Encoding Type = ISO 8859-16 $CENCO22 Encoding Type = MS-DOS 437 $CENCO23 Encoding Type = MS-DOS 737...
Page 84 ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Encoding Type (continued) $CENCO24 Encoding Type = MS-DOS 775 $CENCO25 Encoding Type = MS-DOS 850 $CENCO26 Encoding Type = MS-DOS 852 $CENCO27 Encoding Type = MS-DOS 855 $CENCO28 Encoding Type = MS-DOS 857 $CENCO29 Encoding Type = MS-DOS 860 $CENCO2A Encoding Type = MS-DOS 861 GRYPHON™...
Page 85 OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Encoding Type (continued) $CENCO2B Encoding Type = MS-DOS 862 $CENCO2C Encoding Type = MS-DOS 863 $CENCO2D Encoding Type = MS-DOS 865 $CENCO2E Encoding Type = MS-DOS 866 $CENCO2F Encoding Type = MS-DOS 869 $CENCO30 Encoding Type = Mac CP10000 PRODUCT REFERENCE GUIDE...
Page 86: Alt Output Type
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE ALT Output Type This option specifies the encode type of ALT Mode when the reader sends Output Key- board Data in Alt Mode. (Be aware that the reader may switch automatically between ALT mode & Normal Keyboard Scancode, to correctly display some characters that are not present in the current Keyboard Country).
Page 87: Caps Lock State
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Caps Lock State This option specifies the format in which the reader sends character data. This applies to Keyboard Wedge interfaces. This does not apply when an alternate key encoding key- board is selected. This does not apply to USB Keyboard. $CKBCL00 ...
Page 88: Keyboard Numeric Keypad
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Keyboard Numeric Keypad This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad. $CKBKP00  Keyboard Numeric Keypad = Standard Keys $CKBKP01 Keyboard Numeric Keypad = Numeric Keypad Keyboard Send Control Characters This feature is used by the Keyboard Wedge and USB Keyboard interfaces.
Page 89: Wedge Quiet Interval
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the reader breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. See " Wedge Quiet Interval"...
Page 90: Intercharacter Delay
ENTER/EXIT PROGRAMMING MODE KEYBOARD INTERFACE Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. See " Intercharacter Delay"...
Page 91: Usb Keyboard Speed
OTHER KEYBOARD PARAMETERS ENTER/EXIT PROGRAMMING MODE USB Keyboard Speed This option specifies the USB poll rate for a USB Keyboard. NOTE: This feature applies ONLY to the USB Keyboard interface. $CKBSP01  USB Keyboard Speed = 1ms $CKBSP02 USB Keyboard Speed = 2ms $CKBSP03 USB Keyboard Speed = 3ms $CKBSP05...
Page 92: Usb-Oem Interface
CONFIGURATION | USB-OEM INTERFACE SECTION CONTENTS • USB-OEM Device Usage • USB-OEM Interface Options GRYPHON™ I GD/GBT/GM4500...
Page 93: Usb-Oem Device Usage
ENTER/EXIT PROGRAMMING MODE USB-OEM Device Usage The USB-OEM protocol allows for the reader to be identified as one of two different types of bar code reader. Depending on what other reader you may already have con- nected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
Page 94: Ibm 46Xx Interface
CONFIGURATION | IBM 46XX INTERFACE SECTION CONTENTS • IBM 46xx Interface Options GRYPHON™ I GD/GBT/GM4500...
Page 95: Ibm 46Xx Interface Options
ENTER/EXIT PROGRAMMING MODE IBM 46xx Interface Options This setting provides for an interface specific control mechanism. Options are: • Obey — Obey Scanner Configuration Host Commands • Ignore — Ignore Scanner Configuration Host Commands $CIFO101  Interface Options = Obey Scanner Configuration Host Commands $CIFO102 Interface Options = Ignore Scanner Configuration...
Page 96: Data Format
CONFIGURATION | DATA FORMAT SECTION CONTENTS LOBAL ETTINGS starting on page 83 • Global Prefix/Suffix • Global AIM ID • Case Conversion • GS1-128 AIM ID • Character Conversion ABEL starting on page 86 • • Label ID Symbology Selection Label ID: Set Individually Per Symbology •...
Page 97: Global Settings
GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE GLOBAL SETTINGS Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data). See in “Ref- page 282 erences”...
Page 98: Case Conversion
ENTER/EXIT PROGRAMMING MODE DATA FORMAT Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. NOTE: Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data. $CLFCA00 ...
Page 99: Global Aim Id
GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See for more detailed pro- gramming instructions.
Page 100: Label Id
ENTER/EXIT PROGRAMMING MODE DATA FORMAT LABEL ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
Page 101: Label Id: Set Individually Per Symbology
LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. NOTE: This setting requires the scanning of bar codes from multiple sec- tions. See " Label ID: Set Individually Per Symbology" on page 286 for more detailed programming instructions.
Page 102: Label Id Symbology Selection
ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See " Label ID: for full instructions. Set Individually Per Symbology" on page 286 Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 103 LABEL ID ENTER/EXIT PROGRAMMING MODE Label ID Symbology Selection (continued) $C32ID Set EAN-13/P2 Label ID Character(s) $C35ID Set EAN-13/P5 Label ID Character(s) $CISID Set ISBN Label ID Character(s) $CINID Set ISSN Label ID Character(s) $C8BID Set EAN-8 Label ID Character(s) $C82ID Set EAN-8 Label ID Character(s) $C85ID...
Page 104 ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection (continued) $CXBID Set GS1 DataBar Expanded Label ID Character(s) $CLBID Set GS1 DataBar Limited Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $CP3ID Set Code 32 Label ID Character(s) $CCCID Set Code 39 CIP HR Label ID Character(s) $CC8ID...
Page 105 Label ID Symbology Selection (continued) $CHRID Set Interleaved 2 of 5 CIP HR Label ID Character(s) $CD2ID Datalogic 2 of 5 Label ID Character(s) $CS2ID Standard 2 of 5 Label ID Character(s) $CU2ID Industrial 2 of 5 Label ID Character(s)
Page 106 ENTER/EXIT PROGRAMMING MODE DATA FORMAT Label ID Symbology Selection (continued) $CC1ID Code 11 Label ID Character(s) $CMSID MSI Label ID Character(s) $CPLID Plessey Label ID Character(s) $CALID Anker Plessey Label ID Character(s) $CCMID Set Matrix 2 of 5 Label ID Character(s) GRYPHON™...
Page 107: Reading Parameters
CONFIGURATION | READING PARAMETERS SECTION CONTENTS CANNING EATURES starting on page 94 • Scan Mode • Stand Mode/Object Detection Sensitivity • Scanning Active Time • Stand Mode/Object Detection Illumination Off Time • Flash On Time • Illumination Intensity • Flash Off Time •...
Page 108: Scanning Features
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS SCANNING FEATURES Scan Mode Selects the reader’s scan operating mode. See in “References” for descriptions. page 289 $CSNRM00  Scan Mode = Trigger Single $CSNRM01 Scan Mode = Trigger Hold Multiple $CSNRM02 Scan Mode = Trigger Pulse Multiple $CSNRM03 Scan Mode = Flashing $CSNRM04...
Page 109: Scanning Active Time
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments.
Page 110: Flash Off Time
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. See in “References”...
Page 111 SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Double Read Timeout (continued) $CSNDR32 Double Read Timeout = 0.5 Second $CSNDR3C  Double Read Timeout = 0.6 Second $CSNDR46 Double Read Timeout = 0.7 Second $CSNDR50 Double Read Timeout = 0.8 Second $CSNDR5A Double Read Timeout = 0.9 Second $CSNDR64 Double Read Timeout = 1 Second PRODUCT REFERENCE GUIDE...
Page 112: Stand /Base Detection Behavior
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Stand /Base Detection Behavior Specifies the behavior of the reader when stationary in a stand. There are two condi- tions which cause the reader to switch to Stand Mode/Object Detection: • The reader is configured to switch to Stand Mode/Object Detection when station- ary.
Page 113: Stand Mode/Object Detection Indication (Stand Mode Flash)
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Stand Mode/Object Detection Indication (Stand Mode Flash) This operation is useful for indicating when the reader is in Stand Mode. If enabled, the blue indicator will blink when Stand Mode scanning is active. $CSMFL00  Stand Mode/Object Detection Indication = Disable $CSMFL01 Stand Mode/Object Detection Indication = Enable...
Page 114: Stand Mode/Object Detection Illumination Off Time
 04 = Illumination OFF Time 1 second Illumination Intensity With the following settings the illumination intensity can be reduced if needed. Not all hardware versions support this function. Please contact Datalogic Technical Support for more information. $CLADI01  Illumination Intensity and Frequency = Full Intensity...
Page 115: Illuminator Refresh Frequency
SCANNING FEATURES ENTER/EXIT PROGRAMMING MODE Illuminator Refresh Frequency Illuminator refresh frequency can be increased if needed. In some conditions this can contribute to eye relaxation. $CLADF01  Illuminator Refresh Frequency = Normal Refresh Frequency $CLADF02 Illuminator Refresh Frequency = Increased Refresh Frequency Corded Stand Mode This parameter sets the Stand Mode operation for corded models only.
Page 116: Dock Detection Beep
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Dock Detection Beep If enabled, when the Handheld reader is placed in a dock (base station or corded stand), it will beep. $CDDBE00  Dock Detection Beep = Disable $CDDBE01 Dock Detection Beep = Enable Corded Stand Beep Enables/Disables the beep that indicates when Corded Stand position is detected.
Page 117: Led And Beeper Indicators
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE LED AND BEEPER INDICATORS Power On Alert Disables or enables the indication (from the Beeper) that the reader is receiving power. $CBPPU00 Power On Alert = Disable (No Audible Indication) $CBPPU01  Power On Alert = Power-up Beep Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound.
Page 118: Good Read Beep Frequency
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high frequency, selectable from the list below. (Controls the beeper’s pitch/tone.) $CBPFR00 Good Read Beep Frequency = Low $CBPFR01 Good Read Beep Frequency = Medium $CBPFR02...
Page 119: Good Read Beep Length
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read Beep Length $CBPLE06 Good Read Beep Length = 60 msec $CBPLE08  Good Read Beep Length = 80 msec $CBPLE0A Good Read Beep Length = 100 msec $CBPLE0C Good Read Beep Length = 120 msec $CBPLE0E Good Read Beep Length = 140 msec $CBPLE10...
Page 120: Good Read Beeper Volume / Vibration
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read Beeper Volume / Vibration Selects the beeper volume (loudness) upon a good read beep. There are three select- able volume levels. In addition to three selectable volume levels, the user can also activate a vibration feed- back for good read.
Page 121: Silent Mode
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Silent Mode If needed, audible indications can be disabled by scanning the labels below. Please note that some important audible notifications are not muted in silent mode and other notifications are replaced by vibration or visual indications. All changes in audible notifications are summarized here: •...
Page 122: Rgb Good Read Color
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS RGB Good Read Color Selects the good read LED color. $CRBCL00 RGB Good Read Color = RED $CRBCL01  RGB Good Read Color = GREEN $CRBCL02 RGB Good Read Color = BLUE GRYPHON™ I GD/GBT/GM4500...
Page 123: Good Read Led Duration
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 100 milliseconds to 25,500 milliseconds (0.1 to 25.5 seconds) in 100ms increments.
Page 124: Good Read: When To Indicate
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Good Read: When to Indicate This feature specifies when the reader will provide indication (beep and/or flash its green LED) upon successfully reading a bar code. $CBPIN00  Indicate Good Read = After Decode $CBPIN01 Indicate Good Read = After Transmit $CBPIN02 Indicate Good Read =...
Page 125: Green Spot Duration
LED AND BEEPER INDICATORS ENTER/EXIT PROGRAMMING MODE Green Spot Duration Specifies the duration of the good read pointer beam after a good read. $CLSSP00 Green Spot Duration = Disable (Green Spot is Off) $CLSSP01  Green Spot Duration = Short (300 msec) $CLSSP02 Green Spot Duration = Medium (500 msec) $CLSSP03...
Page 126: Camera Control
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS CAMERA CONTROL Aiming Pointer Enables/disables the aiming pointer for all symbologies. $CTAAP00 Aiming Pointer = Disable $CTAAP01  Aiming Pointer = Enable $CTAAP02 Aiming Pointer = Green Spot Aiming Duration Timer Specifies the frame of time the aiming pointer remains on after decoding a label, when in trigger single mode.The range for this setting is from 1 to 255 seconds in 1-second increments.
Page 127: Pick Mode
Pick Mode = Enable Mobile Phone Mode This mode is useful for scanning bar codes displayed on a mobile phone. Other options for this feature can be configured using the Datalogic Aladdin application. $CSNPE00 Mobile Phone Mode = Disable $CSNPE01 ...
Page 128: Mobile Phone Saturation Rate
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS Mobile Phone Saturation Rate This specifies the minimum number of saturated pixels (every 1000 pixels) in the image in order to activate the Mobile Phone mode. $CSNPS00  Mobile Phone Saturation Rate = 00 $CSNPS01 Mobile Phone Saturation Rate = 01 $CSNPS02 Mobile Phone Saturation Rate = 02...
Page 129: Decode Negative Image
Decode Negative Image = Disable $CIPVR01 Decode Negative Image = Enable Image Capture For information and a list of options for Image Capture, use the Datalogic Aladdin con- figuration application, available for free download from the Datalogic Scanning website. PRODUCT REFERENCE GUIDE...
Page 130: Multiple Label Reading
ENTER/EXIT PROGRAMMING MODE READING PARAMETERS MULTIPLE LABEL READING In standard (default) mode, when the reader’s aiming system is activated (by a trigger pull, motion or other method depending on the mode), it then acquires and processes each image in the area in front of it (the Volume). In this case, the reader stops process- ing the image once it decodes a label.
Page 131: Multiple Labels Ordering By Code Length
MULTIPLE LABEL READING ENTER/EXIT PROGRAMMING MODE Multiple Labels Ordering by Code Length Specifies the transmission ordering by code length, when Multiple Labels per Frame is enabled. $CSNMT00  Multiple Labels Ordering = Disable $CSNMT01 Multiple Labels Ordering = Transmit Increasing Length Order $CSNMT02 Multiple Labels Ordering = Transmit Decreasing...
Page 132: 1D Symbologies
CONFIGURATION | 1D SYMBOLOGIES SECTION CONTENTS ISABLE YMBOLOGIES starting on page 119 5, F OUPON ONTROL NTERLEAVED EBRABAN • starting on page 119 • ODELS starting on page UPC-A 5 CIP HR NTERLEAVED • starting on page 120 • starting on page 160 UPC-E ATRIX...
Page 133: Disable All Symbologies
DISABLE ALL SYMBOLOGIES ENTER/EXIT PROGRAMMING MODE DISABLE ALL SYMBOLOGIES Scan this label to disable all symbologies. Disable All Symbologies COUPON CONTROL Coupon Control This feature is used to control the method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded •...
Page 134: Upc-A
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the reader will not read UPC-A bar codes. $CABEN00 UPC-A = Disable $CABEN01  UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data. $CABCT00 UPC-A Check Character Transmission = Don’t Send $CABCT01...
Page 135: Expand Upc-A To Ean-13
UPC-A ENTER/EXIT PROGRAMMING MODE Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00  UPC-A to EAN-13 = Don’t Expand $CAB3B01 UPC-A to EAN-13 = Expand UPC-A Number System Character Transmission This feature enables/disables transmission of the UPC-A number system character.
Page 136: Upc-E
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the reader will not read UPC-E bar codes. $CEBEN00 UPC-E = Disable $CEBEN01  UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data. $CEBCT00 UPC-E Check Character Transmission = Don’t Send $CEBCT01...
Page 137: Expand Upc-E To Ean-13
UPC-E ENTER/EXIT PROGRAMMING MODE Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CEB3B00  UPC-E to EAN-13 = Don’t Expand $CEB3B01 UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A Expands UPC-E data to the UPC-A data format.
Page 138: Gtin Formatting
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GTIN Formatting This feature enables/disables the ability to convert UPC-E, UPC-A, EAN-8, and EAN-13 labels into the GTIN 14-character format. $CGBEN00  GTIN Formatting = Disable $CGBEN01 GTIN Formatting = Enable GRYPHON™ I GD/GBT/GM4500...
Page 139: 125
EAN-13 ENTER/EXIT PROGRAMMING MODE EAN-13 The following options apply to the EAN-13 symbology. EAN-13 Enable/Disable When disabled, the reader will not read EAN-13 bar codes. $C3BEN00 EAN-13 = Disable $C3BEN01  = Enable EAN-13 EAN-13 Check Character Transmission Enable this option to transmit the check character along with EAN-13 bar code data. $C3BCT00 EAN-13 Check Character Transmission = Don’t Send $C3BCT01...
Page 140: Ean-13 Flag 1 Character
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN-13 Flag1 character. The Flag 1 character is the first character of the label $C3BF100 EAN-13 Flag 1 Char = Don’t transmit $C3BF101  EAN-13 Flag 1 Char = Transmit EAN-13 to ISBN Conversion This option enables/disables conversion of EAN-13/JAN-13 Bookland labels starting with 978 to ISBN labels.
Page 141: Ean-13 To Issn Conversion
EAN-13 ENTER/EXIT PROGRAMMING MODE EAN-13 to ISSN Conversion Enables/disables conversion of EAN/JAN-13 Bookland labels starting with 977 to ISSN labels. $C3BIN00  ISSN = Disable $C3BIN01 ISSN = Enable PRODUCT REFERENCE GUIDE...
Page 142: 128
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES EAN-8 The following options apply to the EAN-8 symbology. EAN-8 Enable/Disable When disabled, the reader will not read EAN-8 bar codes. $C8BEN00 EAN-8 = Disable $C8BEN01  = Enable EAN-8 EAN-8 Check Character Transmission Enable this option to transmit the check character along with EAN-8 bar code data. $C8BCT00 EAN-8 Check Character Transmission = Don’t Send $C8BCT01...
Page 143: Expand Ean-8 To Ean-13
EAN-8 ENTER/EXIT PROGRAMMING MODE Expand EAN-8 to EAN-13 Enable this option to expand EAN-8/JAN-8 labels to EAN-13/JAN-13. $C8B3B00  EAN-8 to EAN-13 = Don’t Expand $C8B3B01 EAN-8 to EAN-13 = Expand PRODUCT REFERENCE GUIDE...
Page 144: Upc/Ean Global Settings
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES UPC/EAN GLOBAL SETTINGS This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 sym- bologies, and affects all of these unless otherwise marked for each feature description. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits. Options are •Disabled •Enable 4-digit price-weight check-digit calculation...
Page 145: Upc/Ean Quiet Zones
UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE UPC/EAN Quiet Zones This feature specifies the number of quiet zones for UPC/EAN labels. Quiet zones are blank areas at the ends of a bar code, typically 10 times the width of the narrowest bar or space in the label.
Page 146: Optional Add-Ons
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Optional Add-ons The reader can be enabled to optionally read the following add-ons (supplementals): • • NOTE: If a UPC/EAN base label and a an add-on are both decoded, the reader will transmit the base label and add-on. If a UPC/EAN base label is decoded without an add-on, the base label will be transmitted without an add-on.
Page 147: Optional Add-On Timer
UPC/EAN GLOBAL SETTINGS ENTER/EXIT PROGRAMMING MODE Optional Add-On Timer This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01 Optional Add-on Timer = 10ms $CADOT02 Optional Add-on Timer = 20ms $CADOT03 Optional Add-on Timer = 30ms...
Page 148: Gs1 Databar™ Omnidirectional
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GS1 DATABAR™ OMNIDIRECTIONAL The following options apply to the GS1 DataBar Omnidirectional (formerly RSS-14) sym- bology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the reader will not read GS1 DataBar Omnidirectional bar codes. $C4BEN00  GS1 DataBar Omnidirectional = Disable $C4BEN01 GS1 DataBar Omnidirectional = Enable GS1 DataBar Omnidirectional to GS1-128 Emulation...
Page 149: Gs1 Databar™ Expanded
GS1 DATABAR™ EXPANDED ENTER/EXIT PROGRAMMING MODE GS1 DATABAR™ EXPANDED The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) sym- bology. GS1 DataBar Expanded Enable/Disable When disabled, the reader will not read GS1 DataBar Expanded bar codes. $CXBEN00 ...
Page 150: Gs1 Databar Expanded Length Control
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CXBLC00 ...
Page 151: Gs1 Databar Expanded Set Length 2
GS1 DATABAR™ EXPANDED ENTER/EXIT PROGRAMMING MODE GS1 DataBar Expanded Set Length 2 This feature specifies one of the bar code lengths for " GS1 DataBar Expanded Length . Length 2 is the maximum label length if in Variable Length Mode, Control"...
Page 152: Gs1 Databar™ Limited
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES GS1 DATABAR™ LIMITED The following options apply to the GS1 DataBar Limited (formerly RSS Limited) symbol- ogy. GS1 DataBar Limited Enable/Disable When disabled, the reader will not read GS1 DataBar Limited bar codes. $CLBEN00  GS1 DataBar Limited = Disable $CLBEN01 GS1 DataBar Limited = Enable...
Page 153: Code 39
CODE 39 ENTER/EXIT PROGRAMMING MODE CODE 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the reader will not read Code 39 bar codes. $CC3EN00 Code 39 = Disable $CC3EN01  Code 39 = Enable Code 39 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional Code 39 check character.
Page 154: Code 39 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES $CC3CC08 Code 39 Check Character Calculation = Enable Daimler Chrysler Check Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00 Code 39 Check Character Transmission = Don’t Send $CC3CT01 ...
Page 155: Code 39 Full Ascii
CODE 39 ENTER/EXIT PROGRAMMING MODE Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 characters to Code 39 full-ASCII characters. $CC3FA00  Code 39 Full ASCII = Disable $CC3FA01 Code 39 Full ASCII = Enable Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels.
Page 156: Code 39 Length Control
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CC3LC00 ...
Page 157: Code 39 Set Length 2
CODE 39 ENTER/EXIT PROGRAMMING MODE Code 39 Set Length 2 This feature specifies one of the bar code lengths for " Code 39 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 158: Trioptic Code
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES TRIOPTIC CODE The following options apply to the trioptic symbology. Trioptic Code Enable/Disable When disabled, the reader will not read Trioptic Code bar codes. $CCTEN00  Trioptic Code = Disable $CCTEN01 Trioptic Code = Enable CODE 39 DANISH PPT The following options apply to the Code 39 Danish PPT symbology.
Page 159: Code 39 Pzn
CODE 39 PZN ENTER/EXIT PROGRAMMING MODE CODE 39 PZN The following options apply to the Code 39 PZN symbology. Code 39 PZN Enable/Disable When disabled, the reader will not read Code 39 PZN bar codes. $CPZEN00  Code 39 PZN = Disable $CPZEN01 Code 39 PZN = Enable CODE 39 LA POSTE...
Page 160: Code 32 (Italian Pharmaceutical)
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 32 (ITALIAN PHARMACEUTICAL) The following options apply to the Code 32 symbology. Code 32 Enable/Disable When disabled, the reader will not read Code 32 bar codes. $CP3EN00  Code 32 = Disable $CP3EN01 Code 32 = Enable Code 32 Feature Setting Exceptions NOTE: The following features are set for Code 32 by using these Code 39 settings:...
Page 161: Code 32 Start/Stop Character Transmission
CODE 32 (ITALIAN PHARMACEUTICAL) ENTER/EXIT PROGRAMMING MODE Code 32 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 32 start and stop characters. $CP3SS00  Code 32 Start/Stop Character Transmission = Don’t Transmit $CP3SS01 Code 32 Start/Stop Character Transmission = Transmit PRODUCT REFERENCE GUIDE...
Page 162: Code 39 Cip Hr (French Pharmaceutical)
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 39 CIP HR (FRENCH PHARMACEUTICAL) The following options apply to the Code 39 CIP HR symbology. Code 39 CIP HR Enable/Disable Enables/Disables ability of the reader to decode Code 39 CIP HR labels. $CCCEN00 ...
Page 163: Code 128
CODE 128 ENTER/EXIT PROGRAMMING MODE CODE 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable Enables/Disables ability of the reader to decode Code 128 labels. $CC8EN00 Code 128 = Disable $CC8EN01  Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
Page 164: Code 128 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 bar code data. $CC8CT00  Code 128 Check Character Transmission = Don’t Send $CC8CT01 Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
Page 165: Code 128 Quiet Zones
CODE 128 ENTER/EXIT PROGRAMMING MODE Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 166: Code 128 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 128 Set Length 1 This feature specifies one of the bar code lengths for " Code 128 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 167: Gs1-128
GS1-128 ENTER/EXIT PROGRAMMING MODE GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS-128, GTIN- 128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the reader to translate GS1-128 labels to the GS1-128 data format. Options are: •...
Page 168: Interleaved 2 Of 5 (I 2 Of 5)
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES INTERLEAVED 2 OF 5 (I 2 OF 5) The following options apply to the I 2 of 5 symbology. CAUTION: When reading this symbology, the settings for I 2 of 5 Length Control AND I 2 of 5 Check Character Calculation MUST be enabled to increase decoding safety.
Page 169: I 2 Of 5 Check Character Calculation
INTERLEAVED 2 OF 5 (I 2 OF 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. $CI2CC00  I 2 of 5 Check Character Calculation = Disable $CI2CC01 I 2 of 5 Check Character Calculation = Calculate Std Check (Modulo 10 no AR)
Page 170: I 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES I 2 of 5 Check Character Calculation (continued) $CI2CC10 I 2 of 5 Check Character Calculation = Calculate Bosch Check $CI2CC20 I 2 of 5 Check Character Calculation = Calculate Italian Post Check I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data.
Page 171: I 2 Of 5 Length Control
INTERLEAVED 2 OF 5 (I 2 OF 5) ENTER/EXIT PROGRAMMING MODE I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set.
Page 172: I 2 Of 5 Set Length 2
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for " I 2 of 5 Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 173: Interleaved 2 Of 5, Febraban (Desk Models Only)
INTERLEAVED 2 OF 5, FEBRABAN (DESK MODELS ONLY) ENTER/EXIT PROGRAMMING MODE INTERLEAVED 2 OF 5, FEBRABAN (DESK MODELS ONLY) Interleaved 2 of 5, Febraban format Enable / Disable NOTE: Interleaved 2 of 5 shall be enabled before enabling Febraban variant. Enables/Disables ability of reader to decode Interleaved 2 of 5, Febraban format.
Page 174: Interleaved 2 Of 5 Cip Hr
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES INTERLEAVED 2 OF 5 CIP HR The following options apply to the Interleaved 2 of 5 CIP HR symbology. Interleaved 2 of 5 CIP HR Enable/Disable Enables/Disables ability of the reader to decode Interleaved 2 of 5 CIP HR labels. $CCHEN00 ...
Page 175: Matrix 2 Of 5
MATRIX 2 OF 5 ENTER/EXIT PROGRAMMING MODE MATRIX 2 OF 5 The following options apply to the Matrix 2 of 5 symbology. Matrix 2 of 5 Enable/Disable When disabled, the reader will not read Matrix 2 of 5 bar codes. $CM2EN00 ...
Page 176: Matrix 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Matrix 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Matrix 2 of 5 check character. $CM2CT00 Matrix 2 of 5 Check Character Transmission = Don’t Send $CM2CT01  Matrix 2 of 5 Check Character Transmission = Send Matrix 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...
Page 177: Matrix 2 Of 5 Set Length 1
MATRIX 2 OF 5 ENTER/EXIT PROGRAMMING MODE Matrix 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Standard 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 165 fixed length if in Fixed Length Mode.
Page 178: Standard 2 Of 5
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES STANDARD 2 OF 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the reader will not read Standard 2 of 5 bar codes. $CS2EN00  Standard 2 of 5 = Disable $CS2EN01 Standard 2 of 5 = Enable...
Page 179: Standard 2 Of 5 Check Character Transmission
STANDARD 2 OF 5 ENTER/EXIT PROGRAMMING MODE Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check charac- ter. $CS2CT00 Standard 2 of 5 Check Character Transmission = Don’t Send $CS2CT01 ...
Page 180: Standard 2 Of 5 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Standard 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Standard 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 165 fixed length if in Fixed Length Mode.
Page 181: Compressed 2 Of 5
COMPRESSED 2 OF 5 ENTER/EXIT PROGRAMMING MODE COMPRESSED 2 OF 5 The following options apply to the Compressed 2 of 5 symbology. Compressed 2 of 5 Enable/Disable When disabled, the reader will not read Compressed 2 of 5 bar codes. $CC2EN00 ...
Page 182: Compressed 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Compressed 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Compressed 2 of 5 check char- acter. $CC2CT00 Compressed 2 of 5 Check Character Transmission = Don’t Send $CC2CT01  Compressed 2 of 5 Check Character Transmission = Send Compressed 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...
Page 183: Compressed 2 Of 5 Set Length 1
COMPRESSED 2 OF 5 ENTER/EXIT PROGRAMMING MODE Compressed 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Compressed 2 of 5 Length Control" . Length 1 is the minimum label length if in Variable Length Mode, or the on page 168 first fixed length if in Fixed Length Mode.
Page 184: Datalogic 2 Of 5
DATALOGIC 2 OF 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the reader will not read Datalogic 2 of 5 bar codes. $CD2EN00  Datalogic 2 of 5 = Disable...
Page 185: Datalogic 2 Of 5 Check Character Transmission
DATALOGIC 2 OF 5 ENTER/EXIT PROGRAMMING MODE Datalogic 2 of 5 Check Character Transmission Enable this option to transmit the check character along with Datalogic 2 of 5 bar code data. $CD2CT00 Datalogic 2 of 5 Check Character Transmission = Don’t Send $CD2CT01 ...
Page 186: Datalogic 2 Of 5 Set Length 1
Alphanu- meric characters in Appendix D, Keypad represent- Select Datalogic 2 of 5 Set Length 2 Setting ing your desired character(s). End by scanning the $CD2L2 ENTER/EXIT bar code again. Make a mistake? Scan the CANCEL bar code to abort and not save the entry string.
Page 187: Industrial 2 Of 5
INDUSTRIAL 2 OF 5 ENTER/EXIT PROGRAMMING MODE INDUSTRIAL 2 OF 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable When disabled, the reader will not read Industrial 2 of 5 bar codes. $CU2EN00 ...
Page 188: Industrial 2 Of 5 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00 Industrial 2 of 5 Check Character Transmission = Don’t Send $CU2CT01  Industrial 2 of 5 Check Character Transmission = Send Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the...
Page 189: Industrial 2 Of 5 Set Length 1
INDUSTRIAL 2 OF 5 ENTER/EXIT PROGRAMMING MODE Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for " Industrial 2 of 5 Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 174 fixed length if in Fixed Length Mode.
Page 190: Iata
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the reader to decode IATA labels. $CIAEN00  IATA = Disable $CIAEN01 IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional IATA check character. $CIACT00 IATA Check Character Transmission = Don’t Send...
Page 191: Follett 2 Of 5
FOLLETT 2 OF 5 ENTER/EXIT PROGRAMMING MODE FOLLETT 2 OF 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of reader to decode Follett 2 of 5 labels. $CF2EN00  Follett 2 of 5 = Disable $CF2EN01 Follett 2 of 5 = Enable...
Page 192: Codabar
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODABAR The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the reader will not read Codabar bar codes. $CCBEN00  Codabar = Disable $CCBEN01 Codabar = Enable Codabar Check Character Calculation This option enables/disables calculation and verification of an optional Codabar check character.
Page 193: Codabar Check Character Transmission
CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. NOTE: This feature is valid only when Codabar Check Character Calculation is enabled. $CCBCT00 Codabar Check Character Transmission = Don’t Send $CCBCT01 ...
Page 194: Codabar Start/Stop Character Set
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters. $CCBSC00 Codabar Check Character Set = ABCD/TN*E $CCBSC01 Codabar Check Character Set = ABCD/ABCD $CCBSC02 Codabar Check Character Set = abcd/tn*e $CCBSC03 ...
Page 195: Codabar Quiet Zones
CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 196: Codabar Length Control
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CCBLC00 ...
Page 197: Codabar Set Length 2
CODABAR ENTER/EXIT PROGRAMMING MODE Codabar Set Length 2 This feature specifies one of the bar code lengths for " Codabar Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 198: Abc Codabar
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES ABC CODABAR The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of reader to decode ABC Codabar labels. $CCBAB00  ABC Codabar = Disable $CCBAB01 ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 199: Abc Codabar Dynamic Concatenation Timeout
ABC CODABAR ENTER/EXIT PROGRAMMING MODE ABC Codabar Dynamic Concatenation Timeout This parameter specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. The timeout can be set within a range of 05 to 255 in 10ms increments. A setting of zero specifies no delay. To configure this feature, scan the ENTER/EXIT PRO- GRAMMING MODE bar code above, then the bar code at left followed by the digits from the Alphanu-...
Page 200: Isbt 128
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Enables/disables ISBT 128 concatenation of 2 labels. $CI8CE00  ISBT 128 Concatenation = Disable $CI8CE01 ISBT 128 Concatenation = Enable ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
Page 201: Isbt 128 Dynamic Concatenation Timeout
ISBT 128 ENTER/EXIT PROGRAMMING MODE ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05 ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A ISBT 128 Dynamic Concatenation Timeout = 100 msec $CI8DT14 ...
Page 202: Isbt 128 Force Concatenation
ISBT 128 Force Contatenation = Disable $CI8FC01 ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options NOTE: Use the Datalogic Aladdin configuration application or Contact Cus- tomer Support to set up pairs of label types for concatenation. GRYPHON™ I GD/GBT/GM4500...
Page 203: Code 11
CODE 11 ENTER/EXIT PROGRAMMING MODE CODE 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the reader will not read Code 11 bar codes. $CC1EN00  Code 11 = Disable $CC1EN01 Code 11 = Enable Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character.
Page 204: Code 11 Check Character Transmission
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 11 Check Character Transmission This feature enables/disables transmission of an optional Code 11 check character. $CC1CT00 Code 11 Check Character Transmission = Don’t Send $CC1CT01  Code 11 Check Character Transmission = Send Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology.
Page 205: Code 11 Set Length 1
CODE 11 ENTER/EXIT PROGRAMMING MODE Code 11 Set Length 1 This feature specifies one of the bar code lengths for " Code 11 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 206: Code 93
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES CODE 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of reader to decode Code 93 labels. $CC9EN00  Code 93 = Disable $CC9EN01 Code 93 = Enable Code 93 Check Character Calculation This option enables/disables calculation and verification of optional Code 93 check character.
Page 207: Code 93 Check Character Transmission
CODE 93 ENTER/EXIT PROGRAMMING MODE Code 93 Check Character Transmission This feature enables/disables transmission of an optional Code 93 check character. $CC9CT00  Code 93 Check Character Transmission = Don’t Send $CC9CT01 Code 93 Check Character Transmission = Send Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology.
Page 208: Code 93 Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Code 93 Set Length 1 This feature specifies one of the bar code lengths for " Code 93 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 209: Code 93 Quiet Zones
CODE 93 ENTER/EXIT PROGRAMMING MODE Code 93 Quiet Zones This feature specifies the number of quiet zones for Code 93 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrow- est bar or space in the label.
Page 210: Msi
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of reader to decode MSI labels. $CMSEN00  MSI = Disable $CMSEN01 MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check character. $CMSCC00 MSI Check Character Calculation = Disable $CMSCC01...
Page 211: Msi Check Character Transmission
ENTER/EXIT PROGRAMMING MODE MSI Check Character Transmission Enables/disables transmission of an MSI check character. $CMSCT00 MSI Check Character Transmission = Don’t Send $CMSCT01  MSI Check Character Transmission = Send MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
Page 212: Msi Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES MSI Set Length 1 This feature specifies one of the bar code lengths for " MSI Length Control" on page 197 Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 213: Pharmacode
PHARMACODE ENTER/EXIT PROGRAMMING MODE PHARMACODE The following options apply to the Pharmacode symbology. Pharmacode Enable/Disable Enables/Disables the ability of the reader to decode Pharmacode labels. $CP1EN00  Pharmacode = Disable $CP1EN01 Pharmacode = Enable Pharmacode Label Direction This feature specifies the direction in which labels are decoded. $CP1DI00 ...
Page 214: Pharmacode Length Control
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Pharmacode Length Control This feature specifies either variable length decoding or fixed length decoding for the Pharmacode symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CP1LC00 ...
Page 215: Pharmacode Set Length 2
PHARMACODE ENTER/EXIT PROGRAMMING MODE Pharmacode Set Length 2 This feature specifies one of the bar code lengths for " Pharmacode Set Length 2" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 216: Plessey
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES PLESSEY The following options apply to the Plessey symbology. Plessey Enable/Disable Enables/Disables the ability of the reader to decode Plessey labels. $CPLEN00  Plessey = Disable $CPLEN01 Plessey = Enable Plessey Check Character Calculation Enables/Disables calculation and verification of a Plessey check character. $CPLCC00 Plessey Check Character Calculation = Disable $CPLCC01...
Page 217: Plessey Check Character Transmission
PLESSEY ENTER/EXIT PROGRAMMING MODE Plessey Check Character Transmission Enables/disables transmission of a Plessey check character. $CPLCT00 Plessey Check Character Transmission = Don’t Send $CPLCT01  Plessey Check Character Transmission = Send Plessey Length Control This feature specifies either variable length decoding or fixed length decoding for the Plessey symbology.
Page 218: Plessey Set Length 1
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES Plessey Set Length 1 This feature specifies one of the bar code lengths for " Plessey Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 219: Bc412
BC412 ENTER/EXIT PROGRAMMING MODE BC412 The following options apply to the BC412 symbology. BC412 Enable/Disable Enables/Disables ability of reader to decode BC412 labels. $CBCEN00  BC412 = Disable $CBCEN01 BC412 = Enable BC412 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional BC412 check character.
Page 220: Bc412 Length Control
ENTER/EXIT PROGRAMMING MODE 1D SYMBOLOGIES BC412 Length Control This feature specifies either variable length decoding or fixed length decoding for the BC412 symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CBCLC00 ...
Page 221: Bc412 Set Length 1
BC412 ENTER/EXIT PROGRAMMING MODE BC412 Set Length 1 This feature specifies one of the bar code lengths for " BC412 Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 222: Symbologies
CONFIGURATION | SYMBOLOGIES SECTION CONTENTS GLOBAL FEATURES • starting on page 209 PDF417 ZTEC • starting on page 212 • starting on page 224 PDF417 HINA ENSIBLE ICRO • starting on page • starting on page 226 QR C ATRIX •...
Page 223: 2D Global Features
2D GLOBAL FEATURES The following features are common to all, or in some cases, most of the available 2D symbologies. Default settings are indicated at each feature/option with a green arrow. Also reference Appendix B, Standard Defaults for a listing of the most widely used set of standard factory settings.
Page 224: 2D Maximum Decoding Time
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES 2D Maximum Decoding Time This feature specifies the maximum amount of time the software will spend attempting to decode a 2D label. The selectable range is 10 milliseconds to 2.55 milliseconds. $CDETM0A 2D Maximum Decoding Time = 100 msec $CDETM14 2D Maximum Decoding Time = 200 msec $CDETM23...
Page 225: 2D Structured Append
2D GLOBAL FEATURES ENTER/EXIT PROGRAMMING MODE 2D Structured Append Enables/disables ability of reader to append multiple 2D Codes labels in a structured format. The structured append property is globally applied to the following symbolo- gies, if these are enabled: • Data Matrix •...
Page 226: Aztec Code
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES AZTEC CODE Aztec Code Enable / Disable Enables/disables the ability of the reader to decode Aztec Code labels. $CAZEN00 Aztec Code = Disable $CAZEN01  Aztec Code = Enable Aztec Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 227: Aztec Code Set Length 1
AZTEC CODE ENTER/EXIT PROGRAMMING MODE Aztec Code Set Length 1 Specifies one of the bar code lengths for " Aztec Code Length Control" on page 212 Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 228: China Sensible Code
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES CHINA SENSIBLE CODE China Sensible Code Enable / Disable Enables/disables the ability of the reader to decode China Sensible Code labels. $CCSEN00  China Sensible Code = Disable $CCSEN01 China Sensible Code = Enable China Sensible Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 229: China Sensible Code Set Length 1
CHINA SENSIBLE CODE ENTER/EXIT PROGRAMMING MODE China Sensible Code Set Length 1 Specifies one of the bar code lengths for " China Sensible Code Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 230: Data Matrix
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES DATA MATRIX Data Matrix Enable / Disable Enables/disables ability of reader to decode Data Matrix labels. $CDMEN00 Data Matrix = Disable $CDMEN01  Data Matrix = Enable Data Matrix Square/Rectangular Style Specifies the options available when reading Data Matrix with different form factors. Choices are: •...
Page 231: Data Matrix Length Control
DATA MATRIX ENTER/EXIT PROGRAMMING MODE Data Matrix Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CDMLC00 ...
Page 232: Data Matrix Set Length 2
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Data Matrix Set Length 2 This feature specifies one of the bar code lengths for " Data Matrix Length Control" on . Length 2 is the maximum label length if in Variable Length Mode, or the sec- page 217 ond fixed length if in Fixed Length Mode.
Page 233: Gs1 Dotcode
GS1 DOTCODE ENTER/EXIT PROGRAMMING MODE GS1 DOTCODE The following options apply for the DotCode barcode decoding DotCode Enable This options enables/disables the ability of the reader to decode DotCode barcodes. $CDCEN01 DotCode = Enable $CDCEN00  DotCode = Disable DotCode High Resolution Enable This options improves the decoding performance for very small module size barcodes, e.g.
Page 234: Dotcode Position-Based Decoding
DotCode Position-based Decoding = Enable $CDCCP00  DotCode Position-based Decoding = Disable Additional Options To improve performances the following additional settings are available using Aladdin configuration utility, downloadable from www.datalogic.com. • Dot Size • Fixed Length or Variable Length •...
Page 235: Maxicode
MAXICODE ENTER/EXIT PROGRAMMING MODE MAXICODE Maxicode Enable / Disable Enables/disables ability of reader to decode Maxicode labels. $CMXEN00  Maxicode = Disable $CMXEN01 Maxicode = Enable Maxicode Primary Message Transmission Enables/disables the transmission of only the Primary Message when the Secondary Message is not readable.
Page 236: Maxicode Length Control
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Maxicode Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMXLC00 ...
Page 237: Maxicode Set Length 2
MAXICODE ENTER/EXIT PROGRAMMING MODE Maxicode Set Length 2 This feature specifies one of the bar code lengths for " Maxicode Length Control" on page . Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode.
Page 238: Pdf417
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES PDF417 PDF417 Enable / Disable Enables/disables the ability of the reader to decode PDF417 labels. $CP4EN00 PDF417 = Disable $CP4EN01  PDF417 = Enable PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 239: Pdf417 Set Length 1
PDF417 ENTER/EXIT PROGRAMMING MODE PDF417 Set Length 1 Specifies one of the bar code lengths for " . Length 1 PDF417 Length Control" on page 224 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 240: Micro Pdf417
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES MICRO PDF417 Micro PDF417 Enable / Disable Enables/disables the ability of the reader to decode Micro PDF417 labels. $CMIEN00 Micro PDF417 = Disable $CMIEN01  Micro PDF417 = Enable Micro PDF417 Code 128 GS1-128 Emulation Specifies which AIM ID to use for Micro PDF labels when doing Code 128 or GS1-128 emulation.
Page 241: Micro Pdf417 Length Control
MICRO PDF417 ENTER/EXIT PROGRAMMING MODE Micro PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. $CMILC00 ...
Page 242: Micro Pdf417 Set Length 2
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Micro PDF417 Set Length 2 This feature specifies one of the bar code lengths for " Micro PDF417 Length Control" on . Length 2 is the maximum label length if in Variable Length Mode, or the sec- page 227 ond fixed length if in Fixed Length includes the bar code’s data characters only.
Page 243: Qr Code
QR CODE ENTER/EXIT PROGRAMMING MODE QR CODE QR Code Enable / Disable Enables/disables the ability of the reader to decode QR Code labels. $CQREN00 QR Code = Disable $CQREN01  QR Code = Enable QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 244: Qr Code Set Length 1
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES QR Code Set Length 1 This feature specifies one of the bar code lengths for " QR Code Length Control" on page . Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
Page 245: Micro Qr Code
MICRO QR CODE ENTER/EXIT PROGRAMMING MODE MICRO QR CODE Micro QR Code Enable / Disable Enables/disables the ability of the reader to decode Micro QR Code labels. $CMQEN00 Micro QR Code = Disable $CMQEN01  Micro QR Code = Enable Micro QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
Page 246: Micro Qr Code Set Length 1
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Micro QR Code Set Length 1 This feature specifies one of the bar code lengths for " Micro QR Code Length Control" on . Length 1 is the minimum label length if in Variable Length Mode, or the first page 231 fixed length if in Fixed Length Mode.
Page 247: Ucc Composite
UCC COMPOSITE ENTER/EXIT PROGRAMMING MODE UCC COMPOSITE UCC Optional Composite Timer Specifies the amount of time the system will wait for the stacked part of a UCC Compos- ite label before transmitting the linear label without an add-on $CCMOT00  UCC Optional Composite Timer = Timer Disabled $CCMOT07 UCC Optional Composite Timer = 70 msec...
Page 248: Postal Code Selection
ENTER/EXIT PROGRAMMING MODE 2D SYMBOLOGIES Postal Code Selection Enables/disables the ability of the reader to decode labels of a specific postal symbol- ogy. • Disable All Postal Codes • Australia Post • Postnet • Japan Post • Planet • • Royal Mail •...
Page 249: Postnet Bb Control
UCC COMPOSITE ENTER/EXIT PROGRAMMING MODE Postal Code Selection (continued) $CPOEN07 Postal Code Selection = Enable IMB $CPOEN08 Postal Code Selection = Enable Sweden Post $CPOEN09 Postal Code Selection = Enable Portugal Post Postnet BB Control Controls the ability of the reader to decode B and B' fields of Postnet labels. $CPOBB00 ...
Page 250: Ocr Decoding
CONFIGURATION | OCR DECODING The GX45 bar code family is equipped with an Optical Character Recognition feature. This section describes how to configure the Datalogic bar code reader to enable OCR decoding. The Gx45 models support the following OCR font types: •...
Page 251: Ocr Decoding Predefined Templates
ENTER/EXIT PROGRAMMING MODE OCR Decoding Predefined Templates The following selections are exclusive, enabling one template automatically disables the others. $COCEN00000000  OCR Predefined Template = Disable OCR Function $COCEN00000001 OCR Predefined Template = EU Identity Card OCR $COCEN00000002 OCR Predefined Template = IATA Passport OCR $COCEN00000004 OCR Predefined Template = Italian Post OCR Payment $COCEN00000008...
Page 252: Motion Features
CONFIGURATION | MOTION FEATURES SECTION CONTENTS OTION EATURES starting on page 238 • Motionless Timeout • High Motion Immunity • Motion Sensitivity • Motion Aiming Control Use this chapter to configure motion settings for the handheld. Reference Appendix B, for a listing of standard factory settings. GRYPHON™...
Page 253: Motionless Timeout
ENTER/EXIT PROGRAMMING MODE Motionless Timeout The period of time that must expire without detecting any motion, before the reader is assumed to be in a motionless condition. The selectable setting is from 500 to 25,500 milliseconds in 100 millisecond increments. This option relates to such features as Aimer On and Stand Mode/Object Detection scanning with respect to motion.
Page 254: High Motion Immunity
ENTER/EXIT PROGRAMMING MODE MOTION FEATURES High Motion Immunity When set to triggerless scanning mode (e.g. Flashing, Always On, Stand Mode/Object Detection, etc.) the reading capabilities can be modified according to two main goals: • increased performance for rapidly moving barcodes - Enable High Motion Immunity: •increased performance for distant barcodes - Disable High Motion Immunity: Depending on specific environmental conditions, application requirements, or expected performance, choose the best solution.
Page 255: Power Management
CONFIGURATION | POWER MANAGEMENT SECTION CONTENTS OWER starting on page 242 • Powerdown Timeout ATTERY ROFILES starting on page 243 • Battery Profiles • Battery Information These parameters refer to Mobile units only (either GBT4500 or GM4500 models). PRODUCT REFERENCE GUIDE...
Page 256: Power Save
ENTER/EXIT PROGRAMMING MODE POWER MANAGEMENT POWER SAVE Powerdown Timeout The Powerdown Timeout feature sets the time for automatically switching the unit off when the imager has been idle. $CSLPS00 Powerdown Timeout = Disable $CSLPS01 Powerdown Timeout = 10 minutes $CSLPS02 Powerdown Timeout = 20 minutes $CSLPS03 ...
Page 257: Battery Profiles
BATTERY PROFILES ENTER/EXIT PROGRAMMING MODE BATTERY PROFILES Battery Profiles Gryphon GBT/GM4500 provides the user the ability to select different usage profiles to better configure the reader with respect to specific needs. By default, the Maximum Performance profile is selected and provides high snappiness and max reading capabil- ity.
Page 258: Battery Information
Reduced recharge time (approx. 20%) • Motionix™ disabled • Vibro motor disabled • Scan-While-Charging disabled (Trigger Single) Battery Information By using Datalogic Aladdin utility, additional battery data can be retrieved, i.e.: • HH Serial Number • Charge % • Health % •...
Page 259: Wireless Features
CONFIGURATION | WIRELESS FEATURES SECTION CONTENTS IRELESS EEPER EATURES starting on page 246 • • Good Transmission Beep Disconnect Beep • • Beeper Frequency Docking (Connecting) Beep • • Beep Duration Leash Alarm • Beep Volume ONFIGURATION PDATES starting on page 251 •...
Page 260: Wireless Beeper Features
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES WIRELESS BEEPER FEATURES Several options are available to configure beeper behavior for RF operation. Good Transmission Beep Enables/disables the Good Transmission Beep indication. When enabled, a beep occurs when a Label is correctly transmitted to the base. $CBTAB00 Good Transmission Beep = Disable $CBTAB01...
Page 261: Beep Duration
WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE Beep Duration This feature controls the duration of radio-specific beep indications. $CBTBD06 Beep Duration = 60 msec $CBTBD08  Beep Duration = 80 msec $CBTBD0A Beep Duration = 100 msec $CBTBD0C Beep Duration = 120 msec $CBTBD0E Beep Duration = 140 msec $CBTBD10...
Page 262: Beep Volume
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Beep Volume Selects the beeper volume (loudness) of radio-specific beep indications. There are three selectable volume levels. $CBTBV00 Beep Volume = Low $CBTBV01 Beep Volume = Medium $CBTBV02  Beep Volume = High Disconnect Beep Enables/disables the beep indication that a handheld has become disconnected from a Base Station.
Page 263: Docking (Connecting) Beep
WIRELESS BEEPER FEATURES ENTER/EXIT PROGRAMMING MODE Docking (Connecting) Beep Enables/disables a beep indication when the handheld is placed in the Base Station. $CBTCB00 Docking Beep = Disable $CBTCB01  Docking Beep = Enable Leash Alarm This setting specifies the number of seconds to sound the Leash Mode beeps (three per second) when the handheld goes out of range.
Page 264 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Leash Alarm (continued) $CBTLB04 Leash Alarm = 4 Seconds $CBTLB05 Leash Alarm = 5 Seconds $CBTLB0A Leash Alarm = 10 Seconds $CBTLB19 Leash Alarm = 25 Seconds $CBTLB1E Leash Alarm = 30 Seconds GRYPHON™ I GD/GBT/GM4500...
Page 265: Configuration Updates
CONFIGURATION UPDATES ENTER/EXIT PROGRAMMING MODE CONFIGURATION UPDATES Automatic Configuration Update When this feature is enabled, a reader and its linked Base Station can automatically ensure they stay in sync with regard to application hardware and/or configuration. See for more information on this feature. page 295 $CBTCU00 Automatic Configuration Update = Disable...
Page 266: Batch Features
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES BATCH FEATURES Batch Mode This option specifies whether to store labels in the handheld while disconnected from the base. Options are as follows: • Disabled — The handheld will not store/batch labels. • Automatic — The handheld will store labels to RAM when the handheld goes out of range and is disconnected from the remote device.
Page 267: Erase Batch Memory
BATCH FEATURES ENTER/EXIT PROGRAMMING MODE Erase Batch Memory When the reader is configured in Manual Batch Mode, use the following bar code to erase any labels stored in batch memory. NOTE: Do not scan an ENTER/EXIT PROGRAMMING MODE label in conjunc- tion with this bar code.
Page 268: Direct Radio Autolink
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES DIRECT RADIO AUTOLINK Direct Radio Autolink This feature enables/disables the ability to link a wireless handheld to a base station without scanning the Unlink label first. $CBTDL00  Direct Radio Link = Unlink Label Required $CBTDL01 Direct Radio Link = Automatic Unlinking GRYPHON™...
Page 269: Rf Address Stamping
RF ADDRESS STAMPING ENTER/EXIT PROGRAMMING MODE RF ADDRESS STAMPING These features allow configuration of source radio data inclusion. Source Radio Address Transmission Enables/disables the ability of source radio address information to be transmitted to the host and, if so, at what position with respect to the label data. See in “Refer- page 295 ences”...
Page 270: Bluetooth-Only Features
BLUETOOTH-ONLY FEATURES The features in this section are valid only for Gryphon Bluetooth models. NOTE: Changing the configuration parameters described in this section may cause a temporary loss of the Bluetooth connection between the Reader and the remote device. Bluetooth Security Level NOTE: This parameter applies when pairing the Reader with a third party Bluetooth device.
Page 271: Bluetooth Radio Output Power
BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE $CBTSL01  BT Security Level = Level 1 - lowest $CBTSL02 BT Security Level = Level 2 $CBTSL03 BT Security Level = Level 3 - highest Bluetooth Radio Output Power Set this parameter according to the desired radio range of the Reader: •...
Page 272: Wi-Fi Channels Exclusion
If the specific 802.11 standard and the frequency channels used by the Wi-Fi equipment are known, select the corresponding combination from the list of pro- gramming labels below or use the Datalogic Aladdin tool. With this setting, the Reader and the remote Bluetooth device avoid using the Bluetooth frequency channels that overlap with the already occupied Wi-Fi channels.
Page 273 BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE Wi-Fi Channels Exclusion (continued) $CBTWF00000000001FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 $CBTWF0000000003FFFFF80000 WiFi Ch. Exclusion = 802.11b_g ch.5 $CBTWF000000007FFFFF000000 WiFi Ch. Exclusion = 802.11b_g ch.6 $CBTWF0000000FFFFFE0000000 WiFi Ch. Exclusion = 802.11b_g ch.7 $CBTWF000001FFFFFC00000000 WiFi Ch. Exclusion = 802.11b_g ch.8 $CBTWF00003FFFFF8000000000 WiFi Ch.
Page 274 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Wi-Fi Channels Exclusion (continued) $CBTWF1FFFFFC0000000000000 WiFi Ch. Exclusion = 802.11b_g ch.12 $CBTWF7FFFF800000000000000 WiFi Ch. Exclusion = 802.11b_g ch.13 $CBTWF7F800000000000000000 WiFi Ch. Exclusion = 802.11b_g ch.14 $CBTWF000000007FFFFF3FFFFF WiFi Ch. Exclusion = 802.11b_g ch.1 and 6 $CBTWF00FFFFFE0000003FFFFF WiFi Ch.
Page 275 BLUETOOTH-ONLY FEATURES ENTER/EXIT PROGRAMMING MODE Wi-Fi Channels Exclusion (continued) $CBTWF1FFFFFC0000007FFFFF0 WiFi Ch. Exclusion = 802.11b_g ch.2 and 12 $CBTWF1FFFFFCFFFFFE0000000 WiFi Ch. Exclusion = 802.11b_g ch.7 and 12 $CBTWF0FFFFF03FFFF81FFFFE0 WiFi Ch. Exclusion = 802.11b_g ch.2 and 7 and 12 $CBTWF000001FFFFFCFFFFFE00 WiFi Ch. Exclusion = 802.11b_g ch.3 and 8 $CBTWF7FFFF8000000FFFFFE00 WiFi Ch.
Page 276 ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES Wi-Fi Channels Exclusion (continued) $CBTWF7F800000001FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 and 14 $CBTWF7F803FFFFF8000000000 WiFi Ch. Exclusion = 802.11b_g ch.9 and 14 $CBTWF7F803FFFFF9FFFFFC000 WiFi Ch. Exclusion = 802.11b_g ch.4 and 9 and 14 $CBTWF000FFFFFE3FFFFF80000 WiFi Ch. Exclusion = 802.11b_g ch.5 and 10 $CBTWF0000000001FFFFFFFFFF WiFi Ch.
Page 277: Bluetooth Hid Features
BLUETOOTH HID FEATURES ENTER/EXIT PROGRAMMING MODE BLUETOOTH HID FEATURES Before connecting the Reader to a Bluetooth HID host device, the keyboard emulation used for label transmission can be configured using the parameters described in this section, plus the following parameters: •...
Page 278: Features For Star Models Only
ENTER/EXIT PROGRAMMING MODE WIRELESS FEATURES FEATURES FOR STAR MODELS ONLY The features in this section are valid only for the Gryphon I GM450X Star model: • " STAR Radio Protocol Timeout" on page 264 • " STAR Radio Transmit Mode" on page 265 STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the handheld reader and Base Station is considered failed.
Page 279: Star Radio Transmit Mode
FEATURES FOR STAR MODELS ONLY ENTER/EXIT PROGRAMMING MODE STAR Radio Transmit Mode Specifies the transmission protocol for Star communications. Options are: • ACK from base station to reader — signals a good transmission as soon as the Base Station receives a label •...
Page 280: Star System Speed
3. place the Reader into the Base. The Reader and the Base will now be linked at the new programmed speed. This feature can also be programmed using the Datalogic Aladdin tool: 1. set the STAR System Speed to “High speed” or “Low speed” through Aladdin;...
Page 281: Star Frequency Agility
NOTE: It is possible to configure the STAR system to use a fixed channel with different frequency from the default one. Please contact Datalogic Technical Support for information about this feature. Please refer to Table 4 on page 268 for valid combinations of this feature with the STAR System Speed configuration parameter.
Page 282 Table 4 Supported combinations of STAR System Speed and STAR Frequency Agility configuration parameters FIXED CHANNEL SYSTEM FREQUENCY DIFFERENT FROM SPEED AGILITY DEFAULT 433 MHz Model Low Speed High Speed 910 MHz Model Low Speed High Speed GRYPHON™ I GD/GBT/GM4500...
Page 283: Chapter 4. References
CHAPTER 4 REFERENCES This section contains explanations and examples of selected bar code features. See Con- for the actual bar code labels used to con- figuration with Bar Codes, starting on page 33 figure the reader. SECTION CONTENTS RS-232 P ARAMETERS on page 270 •...
Page 284: Parameters
REFERENCES RS-232 PARAMETERS RS-232 ONLY Baud Rate Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate to match the baud rate setting of the host device. With an improper baud rate set- ting, data may not reach the host correctly.
Page 285: Rs-232/Usb Com Parameters
RS-232/USB COM PARAMETERS RS-232/USB COM PARAMETERS Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments.
Page 286: Ack Nak Options
REFERENCES ACK NAK Options This enables/disables the ability of the reader to support the RS-232 ACK/NAK protocol. When configured, the reader and/or host sends an “ACK” when it receives data prop- erly, and sends “NAK” when the data is in error. Options are: •...
Page 287: Nak Character
RS-232/USB COM PARAMETERS NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 288: Ack Nak Timeout Value
REFERENCES ACK NAK Timeout Value This option specifies the amount of time the reader waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout. To set this value: 1.
Page 289: Ack Nak Retry Count
RS-232/USB COM PARAMETERS ACK NAK Retry Count This feature specifies the number of times the reader retries a label transmission due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries. To set this feature: 1.
Page 290: Disable Character
REFERENCES Disable Character Specifies the value of the RS-232 host command used to disable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 291: Enable Character
RS-232/USB COM PARAMETERS Enable Character Specifies the value of the RS-232 host command used to enable the reader. ASCII characters or any hex value from 0 to 0xFF can be selected. NOTE: Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these characters.
Page 292: Keyboard Interface
REFERENCES KEYBOARD INTERFACE Wedge Quiet Interval Specifies the amount of time the reader looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. NOTE: This feature applies ONLY to the Keyboard Wedge interface.
Page 293: Intercharacter Delay
KEYBOARD INTERFACE Intercharacter Delay This parameter specifies the intercharacter delay between the end of one character and the beginning of the next. The delay can be set within a range of zero (0) to 990 millisec- onds in 10ms increments. A setting of zero specifies no delay. NOTE: This feature applies ONLY to the Keyboard Wedge interface.
Page 294: Intercode Delay
REFERENCES Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The select- able range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2.
Page 295: Data Format
ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) NOTE: Additional advanced editing is available. See the Advanced format- ting features in the Datalogic Aladdin configuration software, or contact " Technical Support" on page xiv for more information. Please Keep In Mind...
Page 296: Global Prefix/Suffix
REFERENCES Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indicated. Figure 22 Prefix and Suffix Positions OR...
Page 297: Global Aim Id
DATA FORMAT Global AIM ID NOTE: This feature enables/disables addition of AIM IDs for all symbology types. AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...
Page 298: Label Id
Code 93 & 260000 550000 Code 11 434500 620000 Code 128 230000 540000 Code 32 410000 580000 Code 39 2A0000 560000 Datalogic 2of5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN8 464600 410000 EAN8 P2...
Page 299 DATA FORMAT SYMBOLOGY USA LABEL ID SET EU LABEL ID SET ISSN 6E0000 6E0000 400000 5A0000 730000 500000 UPCA 410000 430000 UPCA P2 410000 460000 UPCA P5 410000 470000 UPCE 450000 440000 UPCE P2 450000 480000 UPCE P5 450000 490000 OCR-A 6F0000 246F00...
Page 300: Label Id: Set Individually Per Symbology
REFERENCES Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section " Label ID Control"...
Page 301 DATA FORMAT Label ID: Set Individually Per Symbology — continued Table 16 Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar code (Reader enters Programming Mode) Determine placement of the Label ID characters BEFORE or AFTER with regard to Enable as Prefix Enable as Suffix Enable as Prefix...
Page 302: Character Conversion
REFERENCES Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the char- acter that will be converted. The second character in the pair is the character to convert to.
Page 303: Scanning Features
SCANNING FEATURES SCANNING FEATURES Scan Mode Selects the scan operating mode for the reader. Selections are: Trigger Single: When the trigger is pulled, scanning is activated until one of the follow- ing occurs: • Stand Mode/Object Detection has elapsed • a label has been read •...
Page 304: Scanning Active Time
REFERENCES Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second incre- ments. Follow these instructions to set this feature: 1.
Page 305: Aiming Duration Time
SCANNING FEATURES Aiming Duration Time Specifies the frame of time the aiming pointer remains on after decoding a label, when in trigger single mode. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
Page 306: Flash On Time
REFERENCES Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.
Page 307: Flash Off Time
SCANNING FEATURES Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The select- able range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond incre- ments. Follow these instructions to set this feature. 1.
Page 308: Led And Beeper Indicators
REFERENCES LED AND BEEPER INDICATORS Good Read LED Duration This feature specifies the amount of time that the Good Read LED remains on following a good read. The good read LED on time can be set within a range of 10 milliseconds to 2,550 milliseconds (0.001 to 2.55 seconds) in 100ms increments.
Page 309: Rf Features
RF FEATURES RF FEATURES Automatic Configuration Update When this feature is enabled, the base station and reader will keep their configurations synchronized. If a reader's configuration is altered by reading programming labels, this change is automatically transferred and updated in a linked base station. Likewise, if the base station's configuration is changed using Aladdin or by host commands, then the reader's configuration will automatically be updated if this feature is enabled.
Page 310: Star Radio Protocol Timeout
REFERENCES STAR Radio Protocol Timeout This parameter sets the valid wait time before transmission between the handheld reader and Base Station is considered failed. When setting this parameter, take into consideration the radio traffic (number of read- ers in the same area). The selectable range for this feature is from 02 to 25 seconds. Follow these instructions to set this feature: 1.
Page 311: Symbologies
SYMBOLOGIES SYMBOLOGIES Set Length Length Control allows you to select either variable length decoding or fixed length decoding for the specified symbology. Variable Length: For variable length decoding, a minimum and maximum length may be set. Fixed Length: For fixed length decoding, two different lengths may be set. Set Length 1 This feature specifies one of the bar code lengths for a given symbology.
Page 312: Set Length 2
REFERENCES Set Length 2 This feature specifies one of the bar code lengths for a given symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Reference the to view the selectable range (num- 1D Symbologies, starting on page 118 ber of characters) for the symbology being set.
Page 313: Chapter 5. Message Formatting
CHAPTER 5 MESSAGE FORMATTING MESSAGE FORMATTING NOTE: Message Formatting is available for GM4500 models only. A message from the Host to the base must follow these rules: • If Address stamping options or address delimiter are enabled on the base, the Host replay must have address field and delimiter too.
Page 314: Led And Beeper Control
MESSAGE FORMATTING The format of the ACK from Host message (used for transmission mode 02) is: [Scanner_Addr] [Scanner_Addr_delimiter] MESSAGE <CR> The format of a generic message From Host to HH is: [Scanner_Addr] [Scanner_Addr_delimiter] DC2 MESSAGE <CR> where DC2 is ASCII 0x12 (^R) character. [Items in square brackets are optional.] LED AND BEEPER CONTROL The LED control escape sequences are intended to activate the LEDs for short periods of...
Page 315: Appendix A. Technical Specifications
IEC 62471 Exempt Risk Group Ambient Light Up to 100,000 lux 0° - 360° Tilt Tolerance +/- 65° Pitch Tolerance +/- 65° Skew Tolerance 36° H x 23° V Field of View PCS (Datalogic Test minimum 15% Chart) PRODUCT REFERENCE GUIDE...
Page 316 1.8 m (6 ft) ESD Protection 16 KV Protection Class IP52 Cable Length Refer to www.datalogic.com PHYSICAL CHARACTERISTICS Black Color White Gun only (L/H/W): 10.9 x 16.6 x 6.8 cm (4.3" x 6.5" x 2.7") Dimensions In Stand: (L/H/W): 7.5 x 21 x 10.9 cm (2.9" x 8.2" x 4.2") Approx.
Page 317: Gbt/Gm4500 Technical Specifications
GBT/GM4500 TECHNICAL SPECIFICATIONS GBT/GM4500 TECHNICAL SPECIFICATIONS Table 27 GBT/GM4500 Technical Specifications ELECTRICAL CHARACTERISTICS GBT/GM4500: 5V to 14V +/-5% in the Communication Port Power Supply 5V to 14V +/-5% in the Aux Power Port NOTE: Aux Power Port is recommended when long cables are con- nected to Communication Port.
Page 318 TECHNICAL SPECIFICATIONS OPTICAL CHARACTERISTICS +/- 65° Skew Tolerance 36° H x 23° V Field of View PCS (Datalogic Test minimum 15% Chart) ENVIRONMENTAL CHARACTERISTICS Operating 0 °C to + 50 °C (+32° F to +122 °F) Temperature Storage -40 °C to + 70 °C (-40 ° F to +158 °F)
Page 319: Common Reading Characteristics
COMMON READING CHARACTERISTICS COMMON READING CHARACTERISTICS Table 28 Reading Characteristics READING CHARACTERISTICS Code 39 5 mils: 7.0 to 38.0 cm / 2.7 to Code 39 3 mils: 5.0 to 15.0 cm / 2.0 to 14.9 inch 5.9 inch Code 39 10 mils: 2.2 to 58 cm / 0.8 to Code 39 5 mils: 0.5 to 25.0 cm / 0.2 to 22.8 inch 9.8 inch...
Page 320: Decoding Capabilities
Interleaved 2 of 5; Standard 2 of 5; Interleaved 2 of 5 CIP (HR); Interleaved 2 of 5 Febraban (for desk models only); Industrial 2 of 5; Discrete 2 of 5; Datalogic 2 of 5 (China Post Code/ Chinese 2 of 5); IATA 2 of 5 Air cargo code; Follet 2 of 5;...
Page 321: Led And Beeper Indications
LED AND BEEPER INDICATIONS LED AND BEEPER INDICATIONS The reader’s beeper sounds and its illumination flashes or changes color to indicate var- ious functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. Table 29LED and Beeper Indications INDICATION BEEPER...
Page 322: User Indications For Gbt/Gm4500 (Gun Only)
TECHNICAL SPECIFICATIONS USER INDICATIONS FOR GBT/GM4500 (GUN ONLY) Table 31 User Indications for GBT/GM4500 Gun 3GL AND GOOD READ STATUS BATTERY LED BUZZER Rising Beeps’ Power-up Sequence ↔ USB Enumeration Phase 250 msec 250 msec OFF Depends on Power Cable and spe- USB Suspend cific configurations Idle...
Page 323 USER INDICATIONS FOR GBT/GM4500 (GUN ONLY) 3GL AND GOOD READ STATUS BATTERY LED BUZZER Charge Complete through base station Solid with programmable duration (3 s default) and then OFF Green (charge = 50% - Battery Status indications 100%) when not charging, using double tap Amber (charge = 2% - 50%)
Page 324: User Indications For Wlc4090 Base Stations
TECHNICAL SPECIFICATIONS USER INDICATIONS FOR WLC4090 BASE STATIONS Table 32 User Indications for WLC4090 Base Stations STATUS TRANSMISSION LEDS CHARGING LEDS Power-up Solid ON ↔ USB Enumeration 250 msec 250 msec OFF Depends on Power Cable and specific con- USB Suspend figurations Idle Solid ON...
Page 325: Programming Mode
PROGRAMMING MODE PROGRAMMING MODE The following indications ONLY occur when the reader is in Programming Mode. INDICATION DESCRIPTION BEEPER Enter Programming A valid programming label LED blinks continu- Reader sounds four low fre- Mode has been scanned. ously quency beeps. Reader sounds three times at Rejection of Label Label has been rejected.
Page 326 TECHNICAL SPECIFICATIONS Figure 25 and Table 33 provide standard pinout information for the reader’s cable. Figure 25 Standard Cable Pinouts The signal descriptions in Table 33 apply to the connector on the reader and are for ref- erence only. Table 33 Standard Cable Pinouts — Reader Side RS232 KEYBOARD WEDGE RTS (out)
Page 327: Appendix Bstandard D Efaults
APPENDIX B STANDARD D EFAULTS The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming bar codes for each parameter. A column has also been provided for recording of your pre- ferred default settings for these same configurable features.
Page 328 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Indicate Transmission Failure Enable Disable Character ‘D’ Enable Character ‘E’ KEYBOARD WEDGE U.S. Keyboard Setting Country Mode Encoding Type Don't Use Encoding ALT Output Type ALT Unicode Caps Lock State Caps Lock OFF Numlock Numlock Key Unchanged Keyboard Numeric Keypad...
Page 329 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER READING PARAMETERS Scan Mode Trigger Simple Scanning Active Time 5 seconds Flash On Time 10 = Flash is ON for 1 second Flash Off Time 06 = Flash is OFF for 600ms Double Read Timeout 0.6 second Stand /Base Detection Behavior...
Page 330 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Pick Mode Disable Mobile Phone Mode Enable Mobile Phone Saturation Rate Decode Negative Image Disable Multiple Labels per Frame Disable Multiple Labels Ordering by Code Random Order Symbology Multiple Labels Ordering by Code Disable Length CODE SELECTION - 1D SYMBOLOGIE...
Page 331 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER EAN-13 to ISBN Conversion Disable ISSN EAN-13 to ISSN Conversion Disable EAN 8 EAN-8 Enable/Disable Enable EAN-8 Check Character Transmis- Send sion Expand EAN-8 to EAN-13 Don’t Expand UPC/EAN Global Settings UPC/EAN Price Weight Check Disable UPC/EAN Quiet Zones Two Modules...
Page 332 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 39 Check Character Transmis- Send sion Code 39 Start/Stop Character Trans- Don’t transmit mission Code 39 Full ASCII Disable Code 39 Quiet Zones Small Quiet Zones on two sides Code 39 Length Control Variable Code 39 Set Length 1 Code 39 Set Length 2...
Page 333 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 128 Length Control Variable Code 128 Set Length 1 Code 128 Set Length 2 GS1-128 GS1-128 Enable Transmit in Code 128 Data Format INTERLEAVED 2 of 5 I 2 of 5 Enable/Disable Disable I 2 of 5 Check Character Calculation Disable...
Page 334 Datalogic 2 of 5 Check Character Send Transmission Datalogic 2 of 5 Length Control Variable Length Datalogic 2 of 5 Set Length 1 6 characters Datalogic 2 of 5 Set Length 2 50 characters INDUSTRIAL 2 of 5 Industrial 2 of 5 Enable/Disable...
Page 335 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Follett 2 of 5 Enable/Disable Disable CODABAR Codabar Enable/Disable Disable Codabar Check Character Calcula- Disable tion Codabar Check Character Transmis- Send sion Codabar Start/Stop Character Transmit Transmission Codabar Start/Stop Character Set abcd/abcd Codabar Start/Stop Character Match Don’t Require Match Codabar Quiet Zones...
Page 336 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Code 11 Length Control Variable Code 11 Set Length 1 4 characters Code 11 Set Length 2 50 characters CODE 93 Code 93 Enable/Disable Disable Code 93 Check Character Calculation Enable Check C and K Code 93 Check Character Transmis- Disable sion...
Page 337 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Plessey Set Length 2 50 characters BC412 BC412 Enable/Disable Disable BC412 Check Character Calculation Calculate BC412 Length Control Variable BC412 Set Length 1 1 character BC412 Set Length 2 50 characters CODE SELECTION - 2D SYMBOLOGIES 2D Maximum Decoding Time 350 msec 2D Structured Append...
Page 338 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER DotCode Position-based Decoding Disable MAXICODE Maxicode Enable / Disable Disable Maxicode Primary Message Trans- Disable mission Maxicode Length Control Variable Maxicode Set Length 1 1 character Maxicode Set Length 2 0145 characters PDF417 PDF417 Enable / Disable Enable...
Page 339 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER Postal Code Selection Disable All Postal Codes Postnet BB Control Disable OCR DECODING OCR Decoding Predefined Templates Disable MOTION FEATURES Motionless Timeout 2 seconds Motion Sensitivity Medium High Motion Immunity Disable Motion Aiming Control Enable POWER MANAGEMENT Powerdown Timeout...
Page 340 STANDARD DEFAULTS PARAMETERS DEFAULT YOUR SETTING PAGE NUMBER STAR Radio Protocol Timeout 02 (2 seconds) STAR Radio Transmit Mode ACK from Base Station STAR System Speed High Speed STAR Frequency Agility Disable GRYPHON™ I GD/GBT/GM4500...
Page 341: Default Exceptions
Code Standard 2/5 Label ID Character(s) Codabar Label ID Character(s) Code 128 Label ID Character(s) GS1-128 Label ID Character(s) Datalogic 2 of 5 Label ID Character(s) ISBT 128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s)
Page 342 STANDARD DEFAULTS PARAMETER DEFAULT EXCEPTION GS1 DataBar 14 (Omnidirectional) Label ID Character(s) E GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) Character Conversion CR to ` Interface: RS232-OPOS Baud Rate 115200 Baud Transmission Label ID Code Prefix GS1-128 AIM ID Disable...
Page 343: Appendix C. Sample Barcodes
APPENDIX C SAMPLE BARCODES The sample bar codes in this appendix are typical representations for their symbology types. SAMPLE BARCODES 1D Barcodes UPC-A EAN-13 Code 39 Code 128 PRODUCT REFERENCE GUIDE...
Page 344 SAMPLE BARCODES Interleaved 2 of 5 12345678901231 Code 32 Codabar Code 93 Code 11 GRYPHON™ I GD/GBT/GM4500...
Page 345: Gs1 Databar™ (Rss)
SAMPLE BARCODES GS1 Databar™ (RSS) GS1 DataBar™ variants must be enabled to read the barcodes below (see " DataBar™ Omnidirectional" on page 134 GS1 DataBar™ Expanded Stacked 10293847560192837465019283746029478450366523 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 Databar™ (-14) GS1 DataBar™ Omnidirectional Truncated 55432198673467 GS1 DataBar™...
Page 346: 2D Barcodes
SAMPLE BARCODES 2D Barcodes Aztec Data Matrix China Sensible MaxiCode Test Message PDF417 ABCabc Micro PDF 417 BV17453 GRYPHON™ I GD/GBT/GM4500...
Page 347 SAMPLE BARCODES QR Code 35900G9 2D Barcodes (continued) Micro QR Code 123456 UCC Composite PRODUCT REFERENCE GUIDE...
Page 348: Appendix Dkeypad
APPENDIX D KEYPAD Use the bar codes in this appendix to enter numbers as you would select digits/charac- ters from a keypad. GRYPHON™ I GD/GBT/GM4500...
Page 349 KEYPAD PRODUCT REFERENCE GUIDE...
Page 350: Appendix E. Scancode Tables
APPENDIX E SCANCODE TABLES CONTROL CHARACTER EMULATION Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms. Control Character 00 : Characters from 00 to 0x1F are sent as control character Ctrl+Keys, special keys are located from 0x80 to 0xA1.
Page 351: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple
INTERFACE TYPE PC AT PS/2, USB-KEYBOARD OR USB-KEYBOARD FOR APPLE PRODUCT REFERENCE GUIDE...
Page 352: Interface Type Pc At Ps/2, Usb-Keyboard Or Usb-Keyboard For Apple (Continued)
SCANCODE TABLES GRYPHON™ I GD/GBT/GM4500...
Page 353: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode
INTERFACE TYPE PC AT PS/2 ALT MODE OR USB-KEYBOARD ALT MODE PRODUCT REFERENCE GUIDE...
Page 354: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode (Continued)
SCANCODE TABLES GRYPHON™ I GD/GBT/GM4500...
Page 355: Digital Interface
DIGITAL INTERFACE PRODUCT REFERENCE GUIDE...
Page 356 SCANCODE TABLES GRYPHON™ I GD/GBT/GM4500...
Page 357: Ibm31Xx 102-Key
IBM31XX 102-KEY PRODUCT REFERENCE GUIDE...
Page 358 SCANCODE TABLES GRYPHON™ I GD/GBT/GM4500...
Page 359: Ibm Xt
IBM XT PRODUCT REFERENCE GUIDE...
Page 360: Microsoft Windows Codepage 1252
SCANCODE TABLES MICROSOFT WINDOWS CODEPAGE 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the leg- acy components of Microsoft Windows in English and some other Western languages. GRYPHON™ I GD/GBT/GM4500...
Page 361: Appendix F. Ascii Chart
APPENDIX F ASCII CHART ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < > PRODUCT REFERENCE GUIDE...
Page 362 ASCII CHART GRYPHON™ I GD/GBT/GM4500...
Page 363 © 2011-2023 Datalogic S.p.A. and /or its affiliates • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be repro- duced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or for any purpose, without the express written permission of Data- logic S.p.A.
