Chapter 1

Controls And Indicators

Controls And Indicators
Except for the power switch, printer controls and indicators are located on the
front panel of the printer, on either the Primary Control Panel or the
Secondary Control Panel. (See Figure 1.)
$
The Primary Control Panel is located on the front panel at the upper left
corner of the printer. This control panel has an LCD (Liquid-Crystal Display),
an ONLINE status indicator, and PAUSE, FEED, CANCEL, and TEST keys.
The Secondary Control Panel is below the Primary Control Panel behind the
front door assembly. It consists of UP, DOWN, PREV, and NEXT arrow keys,
used to navigate through the printer configuration menus, and CLEAR, PRT
CONFIG, JOB SELECT, and ENTER keys, used to perform specific functions
within the printer configuration menus.
18
3
1
7
4
5
6
9
2
10
8
11
12
Legend:
1) Primary Control Panel
2) Secondary Control Panel
3) PAUSE Key
4) FEED Key
5) CANCEL Key
6) TEST Key
7) ONLINE Status Indicator
8) Directional "Arrow" Keys (Four)
9) CLEAR Key
10) PRT CONFIG Key
11) JOB SELECT Key
12) ENTER Key

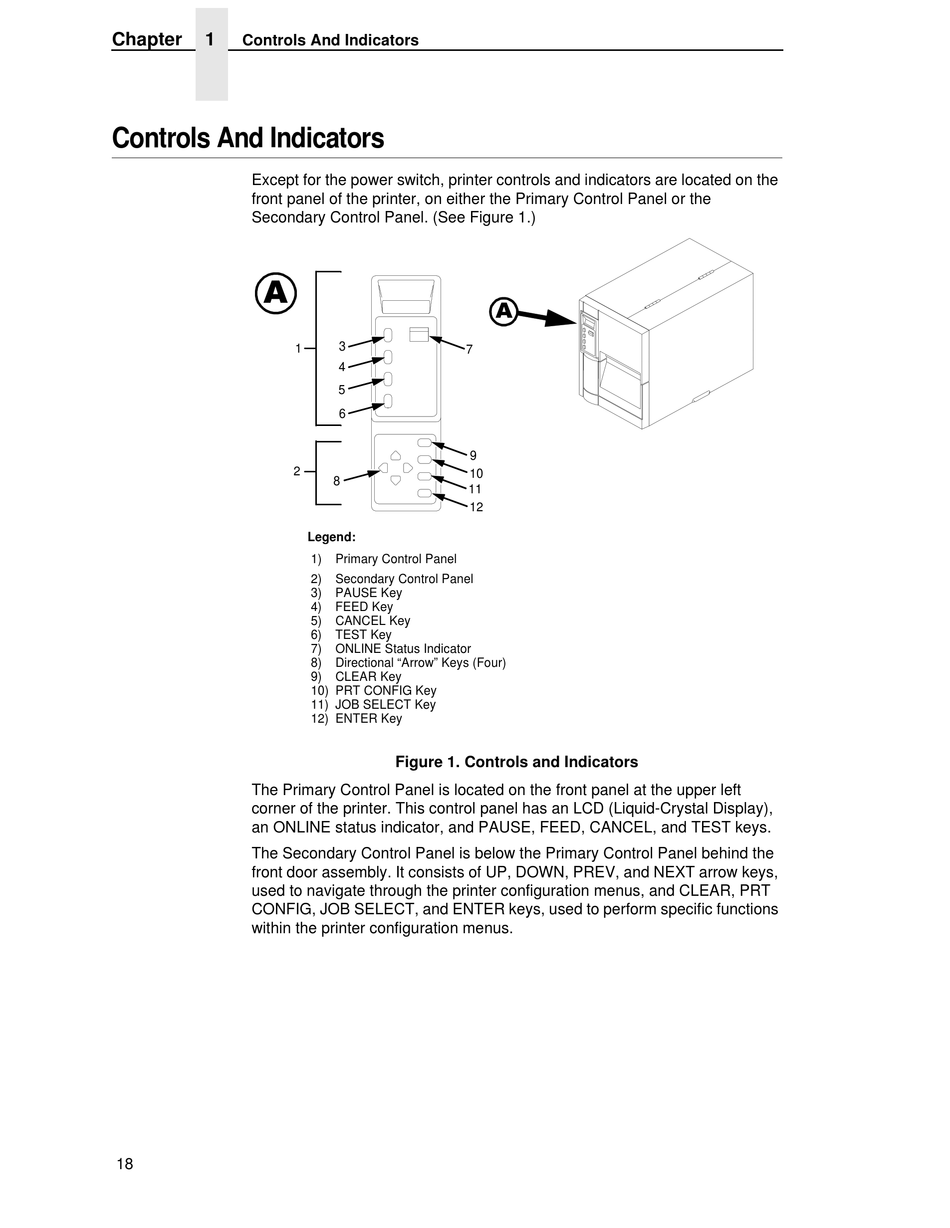

Figure 1. Controls and Indicators
$
