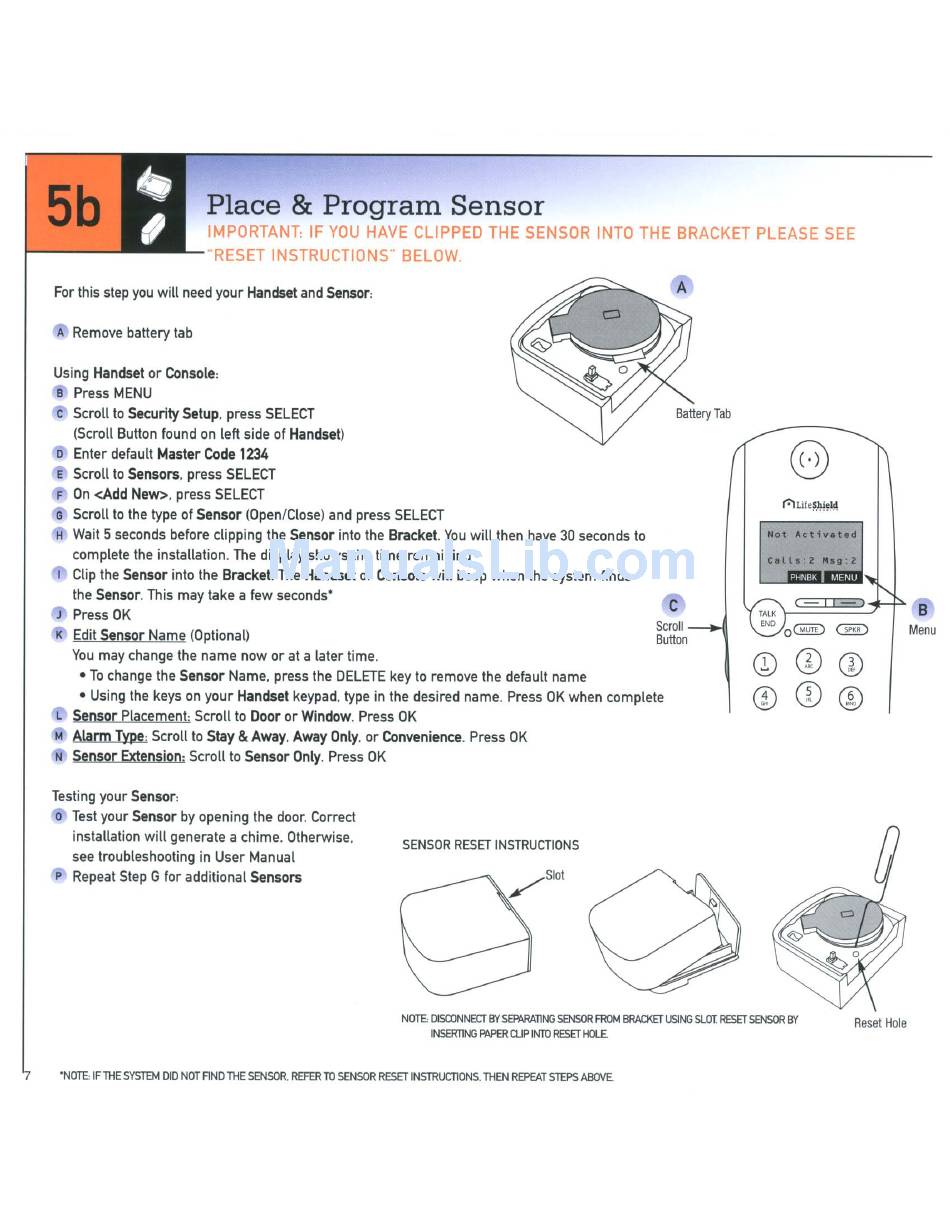

LifeShield Home Security Quick Setup Manual page 8

5b
Place
&
Program Sensor
IMPORTANT: IF YOU HAVE CLIPPED THE SENSOR INTO THE BRACKET PLEASE SEE
"RESET INSTRUCTIONS" BELOW.
Battery Tab
Not Activated
0@@
@CD®
(
A
C
Scroll-l
Button
A
Remove battery tab
Using Handset or Console:
B
Press MENU
c Scroll to Security Setup. press SELECT
(Scroll Button found on left side of Handset)
D
Enter default Master Code 1234
E
Scroll to Sensors. press SELECT
F On <Add NeW>. press SELECT
G
Scroll to the type of Sensor (Open/Close) and press SELECT
H Wait
5
seconds before clipping the Sensor into the Bracket. You will then have 30 seconds to
complete the installation. The display shows the time remaining
I
Clip the Sensor into the Bracket. The Handset or Console will beep when the system finds
the Sensor. This may take a few seconds'
J
Press OK
K Edit Sensor Name (Optional)
You may change the name now or at a later time.
• To change the Sensor Name. press the OELETE key to remove the default name
• Using the keys on your Handset keypad. type in the desired name. Press OK when complete
L
Sensor Placement: Scroll to Door or Window. Press OK
M
Alarm TYJle: Scroll to Stay
&
Away. Away Only. or Convenience. Press OK
Sensor Extensjon: Scroll to Sensor Only. Press OK
For this step you will need your Handset and Sensor:
Testing your Sensor:
a Test your Sensor by opening the door. Correct
installation will generate a chime. Otherwise.
see troubleshooting in User Manual
P
Repeat Step G for additional Sensors
SENSOR RESET INSTRUCTIONS
NOTE DISCONNEl:T BY SCPARAllNG SENSOR FROM BRACI<ET USING SlOI RE5ET SENSOR BY
INSERTI'lG PAPal a..P INTO RE5ET HOLE
Reset Hole
'NOTE IF THE SYSTEM DID NOT RND THE SENSOR REfER TO SENSOR RESET INSTRUCOONS. THEN REPEAT S1B'S M3lNE
