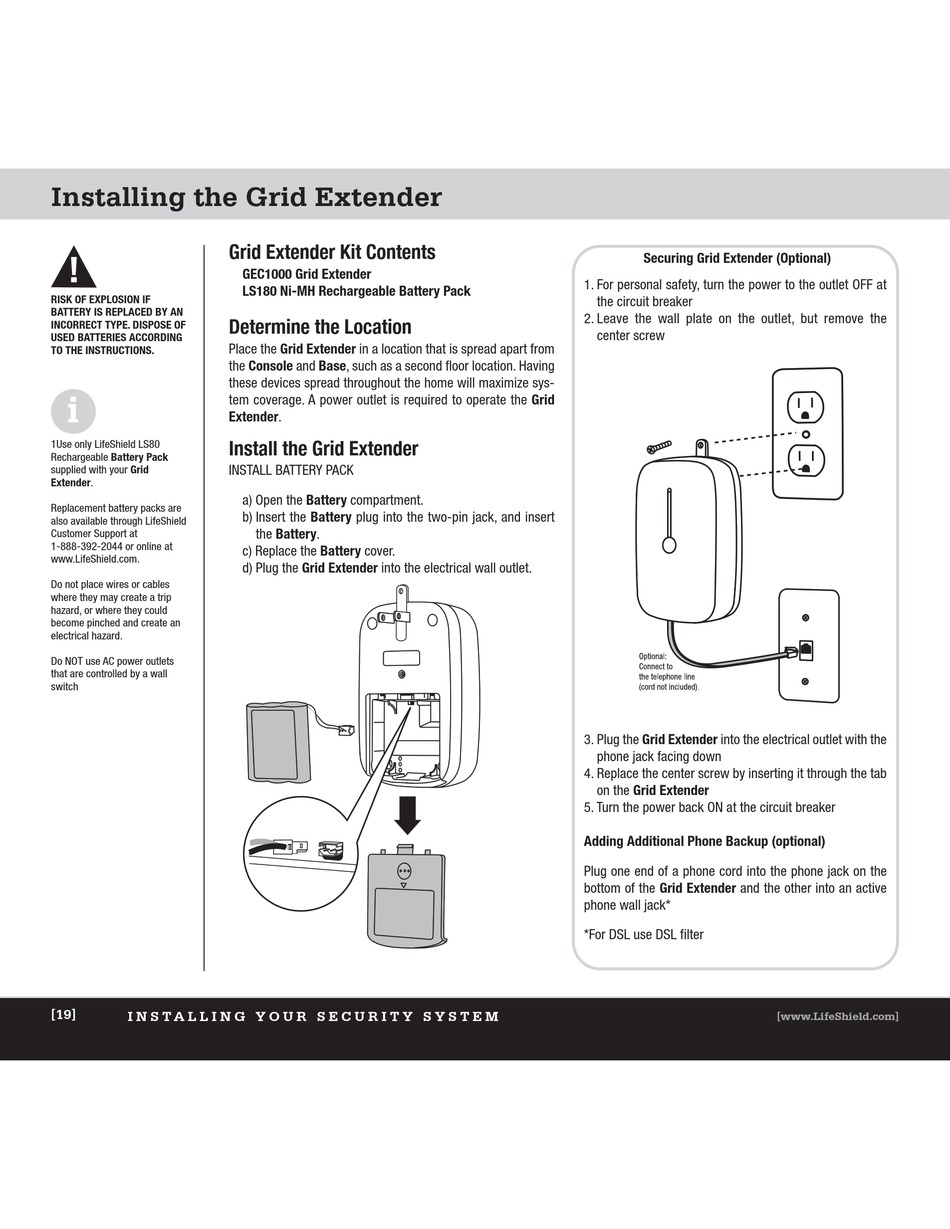

Installing the Grid Extender

Xxxxxxxxxx
Grid Extender Kit Contents
!
RISK OF EXPLOSION IF
BATTERY IS REPLACED BY AN
Determine the Location
INCORRECT TYPE. DISPOSE OF
USED BATTERIES ACCORDING
Place the Grid Extender in a location that is spread apart from
TO THE INSTRUCTIONS.
the Console and Base, such as a second floor location. Having
these devices spread throughout the home will maximize sys-
tem coverage. A power outlet is required to operate the Grid
i
Extender.
1Use only LifeShield LS80
Install the Grid Extender
Rechargeable Battery Pack
supplied with your Grid INSTALL BATTERY PACK
Extender.
Replacement battery packs are
also available through LifeShield
Customer Support at
1-888-392-2044 or online at
www.LifeShield.com.
Do not place wires or cables
where they may create a trip
hazard, or where they could
become pinched and create an
electrical hazard.
Do NOT use AC power outlets
that are controlled by a wall
switch
[19] [19]
X X X X X X X X X X X X I N S T A L L I N G Y O U R S E C U R I T Y S Y S T E M
GEC1000 Grid Extender
LS180 Ni-MH Rechargeable Battery Pack
a) Open the Battery compartment.
b) Insert the Battery plug into the two-pin jack, and insert
the Battery.
c) Replace the Battery cover.
d) Plug the Grid Extender into the electrical wall outlet.
Securing Grid Extender (Optional)
1. For personal safety, turn the power to the outlet OFF at
the circuit breaker
2. Leave the wall plate on the outlet, but remove the
center screw
3. Plug the Grid Extender into the electrical outlet with the
phone jack facing down
4. Replace the center screw by inserting it through the tab
on the Grid Extender
5. Turn the power back ON at the circuit breaker
Adding Additional Phone Backup (optional)
Plug one end of a phone cord into the phone jack on the
bottom of the Grid Extender and the other into an active
phone wall jack*
*For DSL use DSL filter
[www.LifeShield.com] [www.LifeShield.com]
