LifeShield Home Security Quick Setup Manual page 4

~ .,
I I
•
E
•
•
Modem/Router
c
Phone Cord
Internet Cable D
®
©
C
Base Underside

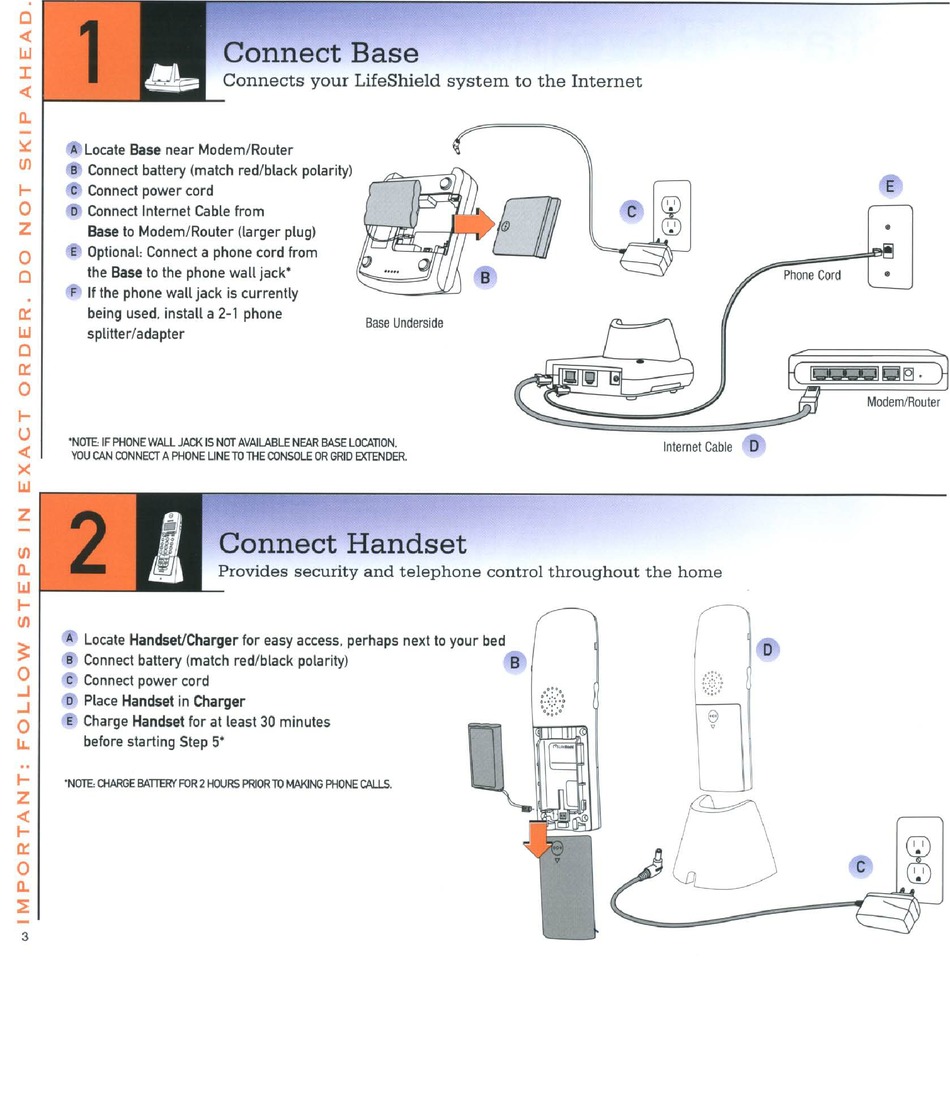

Connect Base
Connects your LifeShield system to the Internet
Connect Handset
Provides security and telephone control throughout the home
A
Locate Base near Modem/Router
B
Connect battery (match red/black polarity)
c Connect power cord
D Connect Internet Cable from
Base to Modem/Router (larger plug)
Optional, Connect a phone cord from
the Base to the phone wall jack'
If the phone wall jack is currently
being used. install a 2-1 phone
splitter/adapter
'NOTE IF PHONE WAlL JAO< IS NOT AVAJlABI..E NEAR BASE LOCAllON.
YOU CAN CONNECT APHONE UNE TO THE CONSOLE OR GRID EXTENDER.
1
2
•
A Locate HandseVCharger for easy access. perhaps next to your bed
B
Connect battery (match red/black polarity) 8
c Connect power cord
D Place Handset in Charger ([;}
E Charge Handset for at least 30 minutes
before starting Step 5'
'NOTE 0lARGE BATTERV FOR 2
f«xR;
P!lIOR
TO MAJ<JNG PHONE CAU.S.
