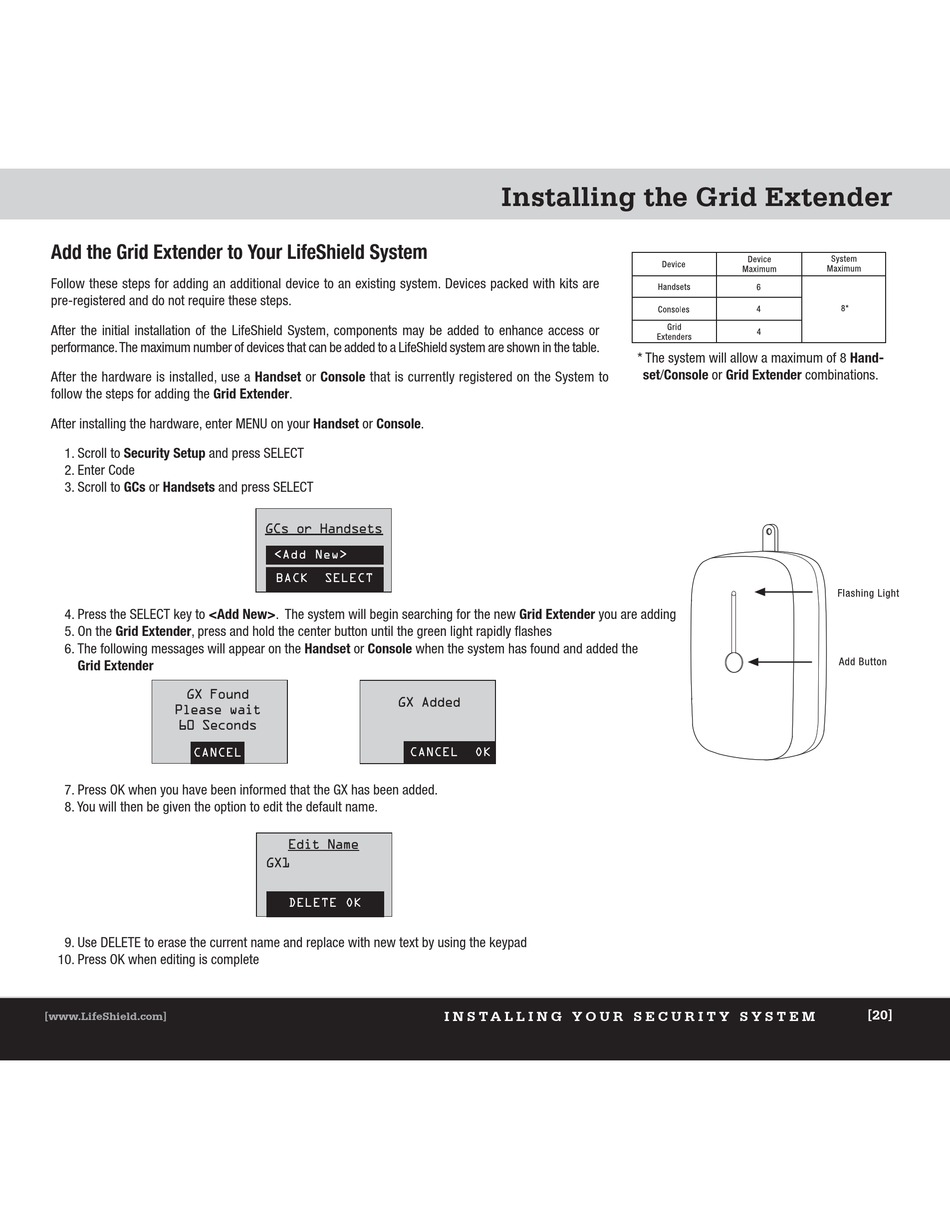

Add the Grid Extender to Your LifeShield System
Follow these steps for adding an additional device to an existing system. Devices packed with kits are
pre-registered and do not require these steps.
After the initial installation of the LifeShield System, components may be added to enhance access or
performance. The maximum number of devices that can be added to a LifeShield system are shown in the table.
After the hardware is installed, use a Handset or Console that is currently registered on the System to
follow the steps for adding the Grid Extender.
After installing the hardware, enter MENU on your Handset or Console.
1. Scroll to Security Setup and press SELECT
2. Enter Code
3. Scroll to GCs or Handsets and press SELECT
4. Press the SELECT key to <Add New>. The system will begin searching for the new Grid Extender you are adding
5. On the Grid Extender, press and hold the center button until the green light rapidly flashes
6. The following messages will appear on the Handset or Console when the system has found and added the
Grid Extender
GX Found
Please wait
60 Seconds
CANCEL
7. Press OK when you have been informed that the GX has been added.
8. You will then be given the option to edit the default name.
9. Use DELETE to erase the current name and replace with new text by using the keypad
10. Press OK when editing is complete
[www.LifeShield.com] [www.LifeShield.com]
GCs or Handsets
<Add New>
BACK SELECT
GX Added
CANCEL
Edit Name
GX1
DELETE OK

Installing the Grid Extender

OK
I N S T A L L I N G Y O U R S E C U R I T Y S Y S T E M
Xxxxxxxxxx
* The system will allow a maximum of 8 Hand-
set/Console or Grid Extender combinations.
