LifeShield Home Security Quick Setup Manual page 5

3

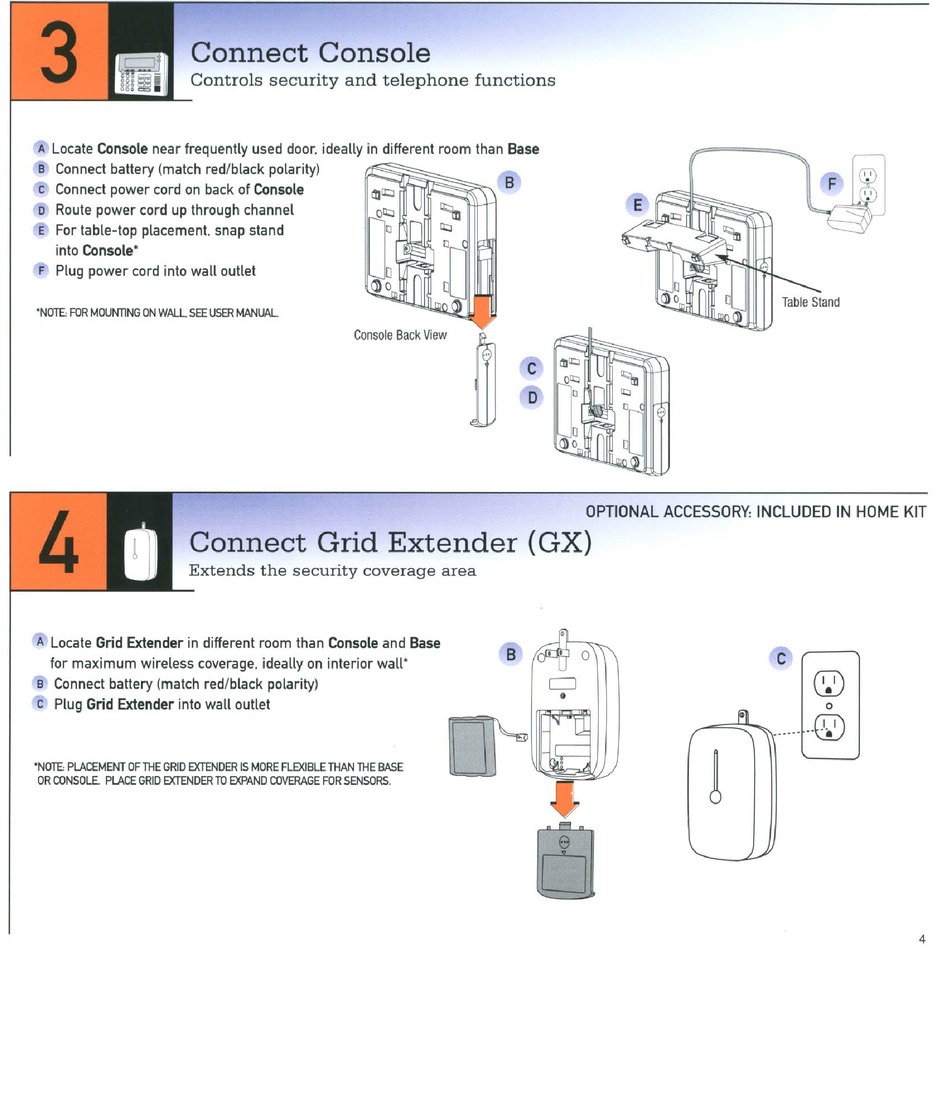

Connect Console
Controls security and telephone functions
Table Stand
B
Console Back View
A
Locate Console near frequently used door. ideally in different room than Base
B
Connect battery (match red/black polarity)
c Connect power cord on back of Console
o Route power cord up through channel
For table-top placement. snap stand
into Console'
F
Plug power cord into wall outlet
'NOTE RlR MDlJI'ffiNG ON WAlL SEE USER MANl.l'.L
4
OPTIONAL ACCESSORY INCLUDED IN HOME KIT
Connect Grid Extender (GX)
Extends the security coverage area
A
Locate Grid Extender in different room than Console and Base
for maximum wireless coverage. ideally on interior wall'
B
Connect battery (match red/black polarity)
c Plug Grid Extender into wall outlet
'NOTE I'tACEMENT OF THE GRID
EXTENDER IS MORE FlEXIBlE THAN
THE
BASE
DR CONSOI.£
PlAa:
GRID EXTENDER TO EXPAND aMRAGE RlR SENSORS.
C
©
o
~~------©
4
