Installing the Sensor
t
You may change the name now or at a later time.
If your window frame does not
provide enough room for
mounting the Bracket, you may
need to use a Sensor Extension.
See the Sensor Extension
section in the user manual.
Stay & Away means the Sensor will be monitored in both Armed Stay and Armed Away modes (i.e. an exterior door). Away
Only means the Sensor will be monitored only in Armed Away mode (i.e. an interior door). Convenience means the Sensor is
only used for text messaging (like a liquor cabinet).
For standard Sensor installation with the Magnet next to the Sensor, select Sensor Only. A Sensor Extender is only
required if space does not permit the Sensor to be placed next to the Magnet. In this case, use the Sensor Extension pictured
below. You may also use the Sensor to monitor two windows by selecting Both. In this case, the Sensor monitors both a
Magnet next to the Sensor and another Magnet next to the Sensor Extension.

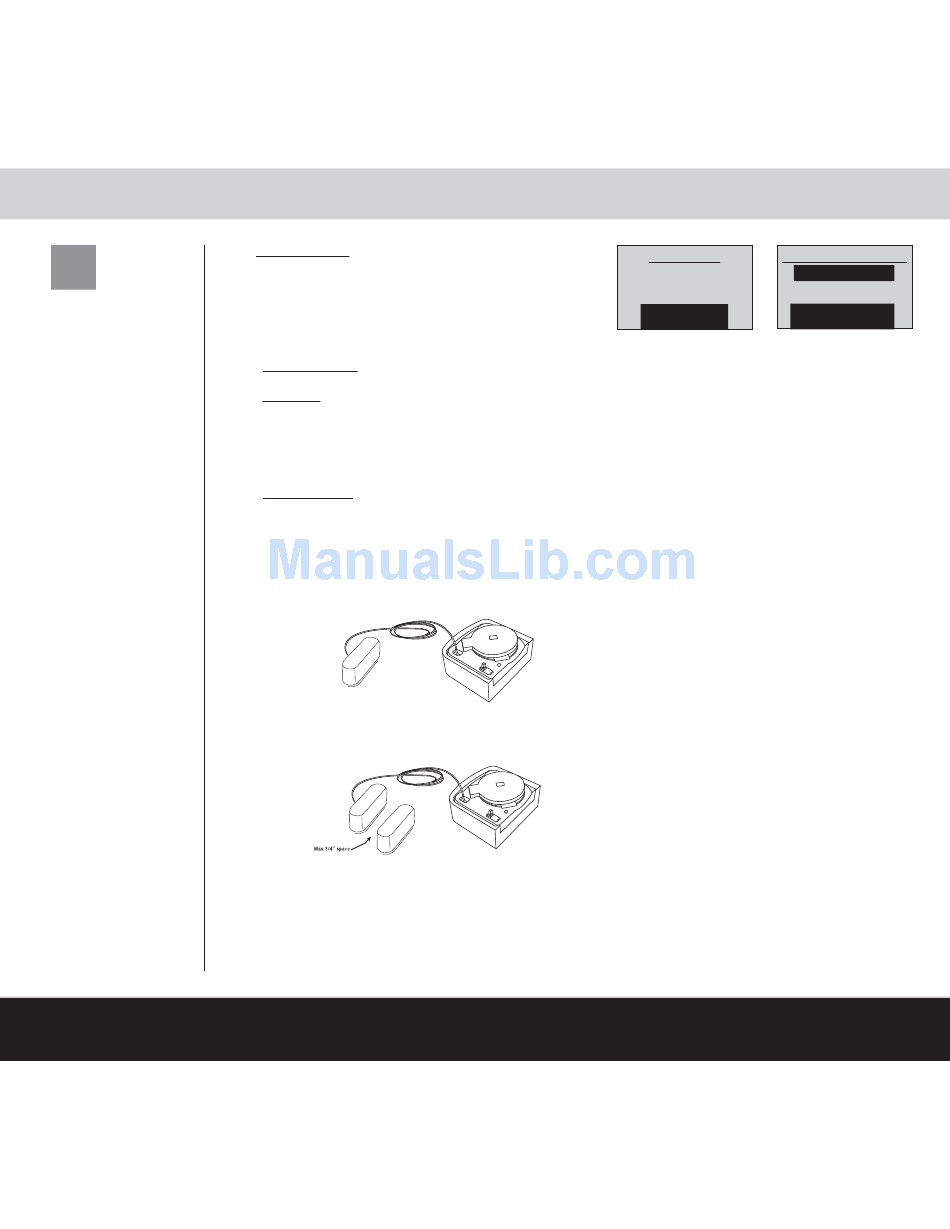

Sensor Extension
The Sensor Extension plugs into the small connector as shown (next to the where the battery cover hinges). The plug/connec-
tor are keyed so be careful when inserting the plug into the connector.
The Sensor Extension monitors a Magnet up to ¾ of an inch away. The Sensor itself may be located at a convenient place up
to the distance of the length of the wire included with the Sensor Extension.
[23]
I N S T A L L I N G Y O U R S E C U R I T Y S Y S T E M
9. Edit Sensor Name (Optional)
• To change the Sensor Name, press the DELETE key
to remove the default name.
• Using the keys on your Handset keypad, type in the desired name.
Press OK when complete.
10. Sensor Placement: Scroll to Door or Window. Press OK
11. Alarm Type: Scroll to Stay & Away, Away Only, or Convenience. Press OK
12. Sensor Extension: Scroll to Sensor Only, Extension, or Both. Press OK
Edit Name Sensor Extension
Sensor 1_ SENSOR ONLY
Extension
DELETE OK BACK SELECT
