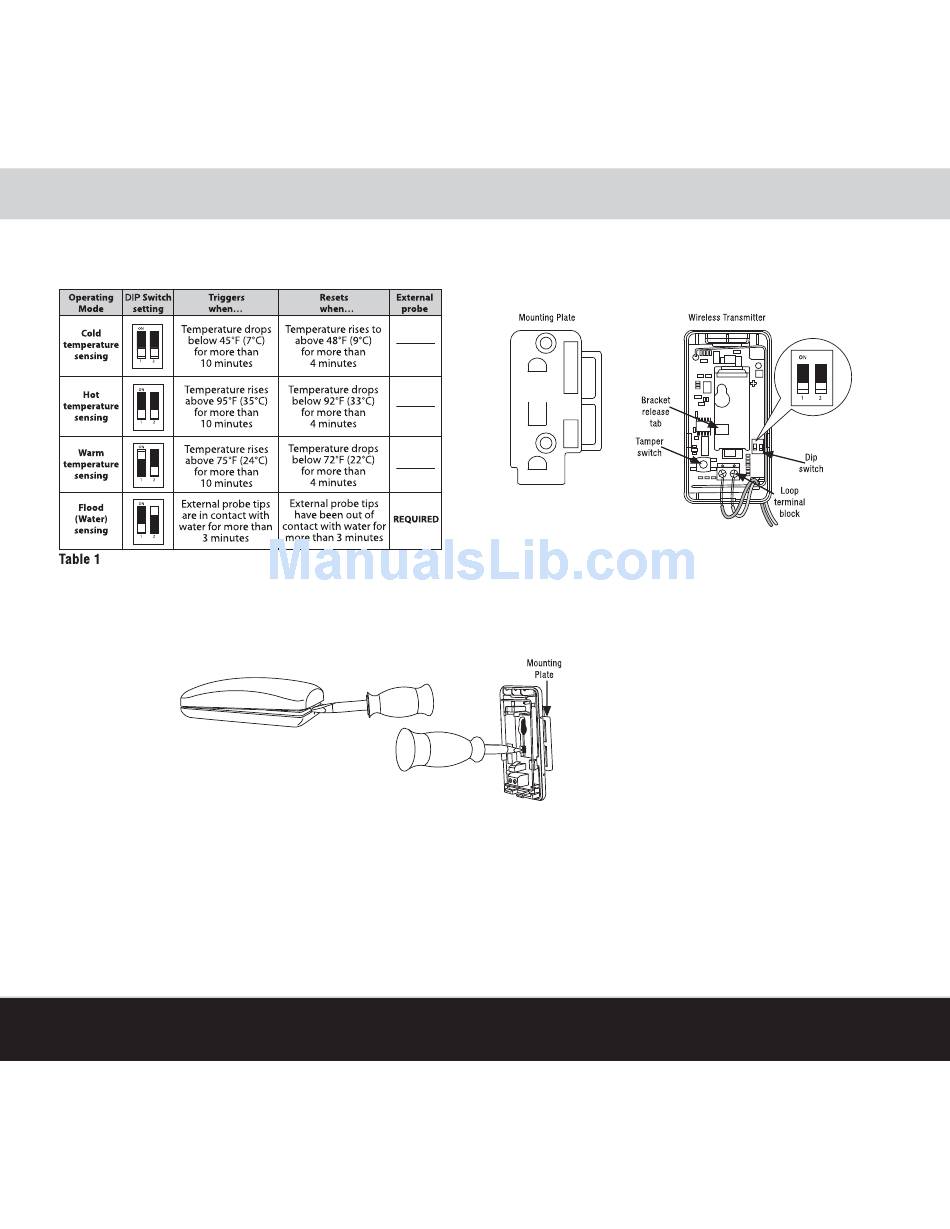

Installing the Flood (Water) and Temperature Sensor

LifeShield Supported Operating Modes and Settings
Install The Sensor
1. Locate the Honeywell 5821 (red and white) box and remove the white wireless transmitter from the box.
2. Using a flat object such as a screwdriver, pry off the top cover of the transmitter and set it aside.
3. Press down on the mounting plate
bracket release tab to remove
(slide off) the mounting plate
Place the mounting plate aside
4. Reference Table 1 to determine the desired sensing type (Hot Temp, Cold Temp, Warm Temp or Flood [water])
Using the tip of a paperclip (or similar object) push the white (sliding) buttons of the DIP switch (see illustration)
into the configuration that corresponds to the desired sensing type
[35]
I N S T A L L I N G Y O U R S E C U R I T Y S Y S T E M
[www.LifeShield.com]
