CDM-800 Gateway Router
Ethernet-based Remote Product Management
•
Index (read‐only) – This is the internal table index and it cannot be edited.
•
IP – Entry IP Address, format XXX.XXX.XXX.XXX.
•
MAC – Entry MAC Address, format YY:YY:YY:YY:YY.
•
Type (read‐only) – The entry Type is identifiable as Static or Dynamic and cannot be edited.
Make the desired IP and MAC Address edits. Click [Submit Changes] to save.
5.4.4.3.4

Configuration | Routing | Routes

Use this page to enter static routes for IP traffic over the satellite or to another device on the
LAN.
Add New Route
Use this section to directly add a Route Table entry:
•
Index (read‐only) – This is the internal table index that is automatically assigned and cannot
be edited.

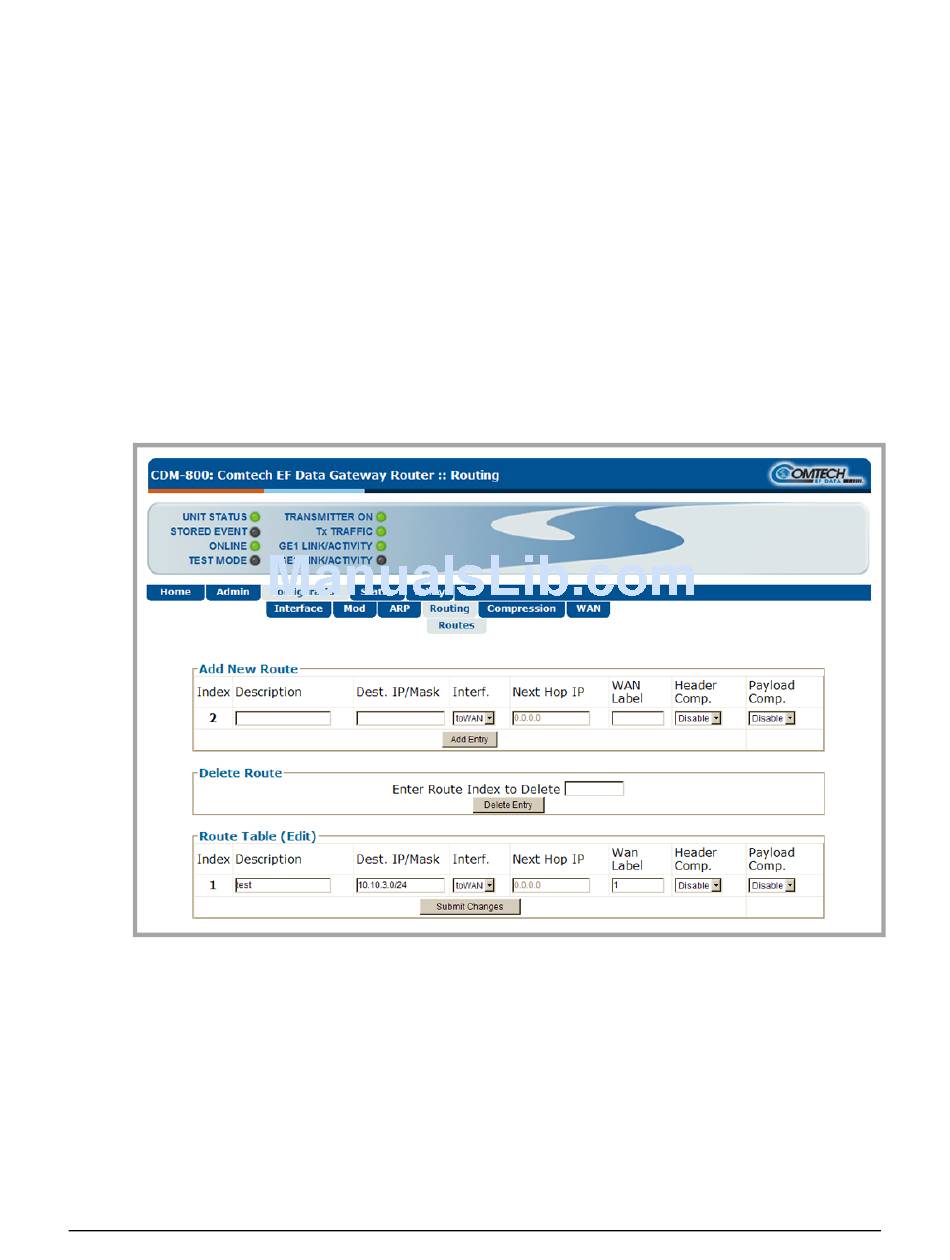

Figure 5‐13. Configuration | Routing | Routes page
5–23
Revision 1
MN-CDM800
