CDM-800 Gateway Router
Introduction
1.3.3 CDM-800 Physical Features
1.3.3.1

Front Panel

The front panel of the CDM‐800 (Figure 1‐4) features eight Light‐Emitting Diode (LED) indicators.
These LEDs convey operational states as follows:
LED
UNIT STATUS
STORED EVENT
ONLINE
TEST MODE
TRANSMITTER
ON
Tx TRAFFIC
GE1 or GE2
LINK/ACTIVITY

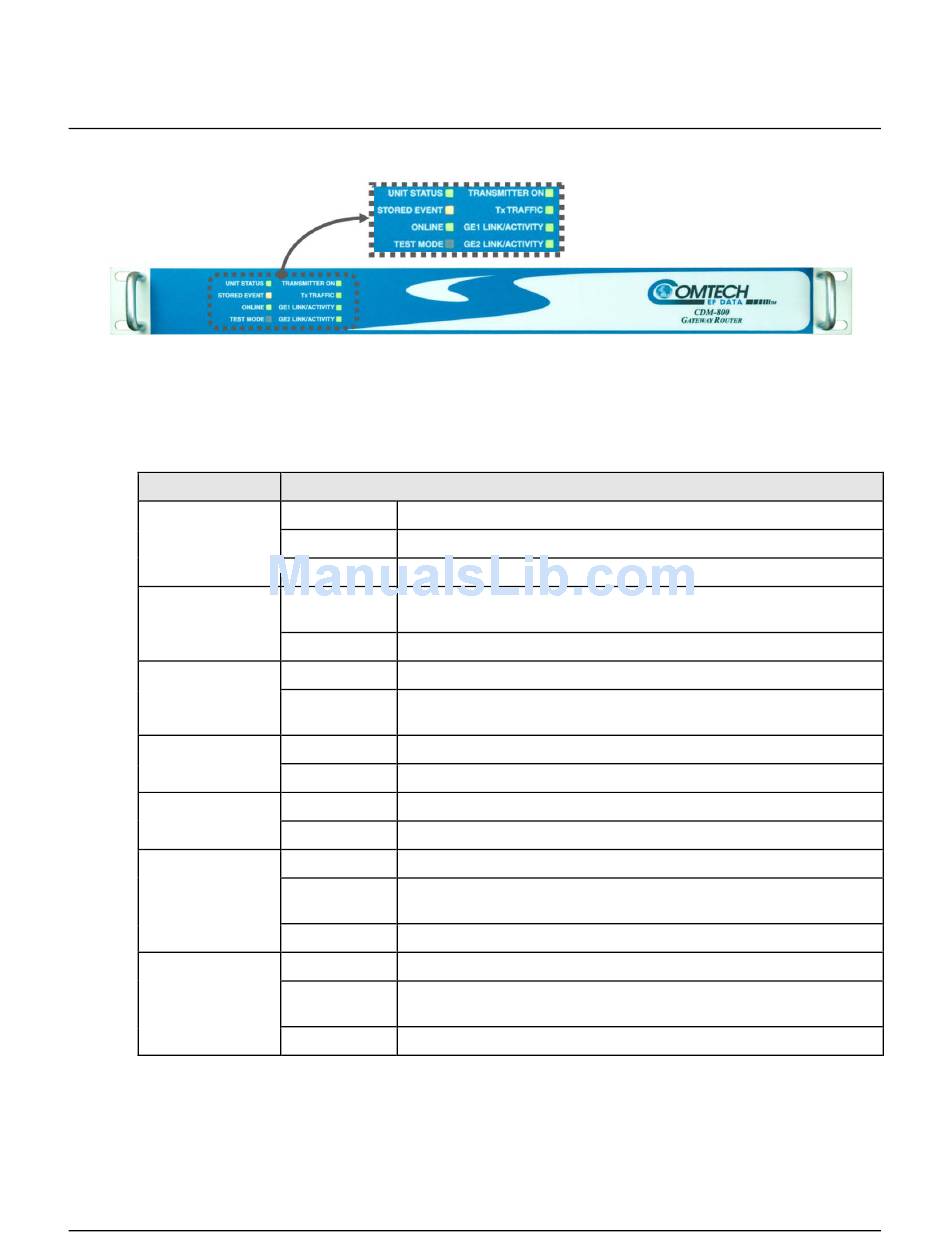

Figure 1-4. CDM-800 – Front Panel View
Condition
Green No Unit Faults or Alarms.
Amber No Unit Faults, but an Alarm exists.
Red A Unit Fault exists (Example: PSU fault).
There is a Stored Event in the log, which can be viewed from the Web
Amber
Server Interface or retrieved via the SNMP interface.
Off There are no Stored Events.
Green The Unit is On Line, and carrying traffic.
The Unit is Off Line (standby – forced by externally connected 1:1 or
Off
1:N Redundancy System).
Amber A Test Mode is selected (Example: CW).
Off There is no Test Mode currently selected.
Green The Transmitter Carrier is On.
Off The Transmitter Carrier is Off.
Green (solid) No Tx Traffic Faults, no packets.
Green No Tx Traffic Faults, blinks when a packet is being transmitted to the
(blinking) satellite link from this unit.
Off A Tx Traffic Fault exists.
Green (solid) Traffic Ethernet is connected, but no traffic exists.
Green
Ethernet activity detected.
(blinking)
Off Traffic Ethernet is not connected.
1–5
Revision 1
MN-CDM800
