CDM-800 Gateway Router
Rear Panel Connections
3.3.2 115V/230V Alternating Current (AC) Power Interface (Standard)
3.3.2.1 AC Operation – Applying Power
To apply AC power to the CDM‐800:
•
First, plug the provided AC power cord female end into the unit.
•
Then, plug the AC power cord male end into the user‐supplied power source.
•
Finally, switch the unit ON.
Feature
1
2
3
Input Power
Input Voltage
Connector Type
Fuse Protection

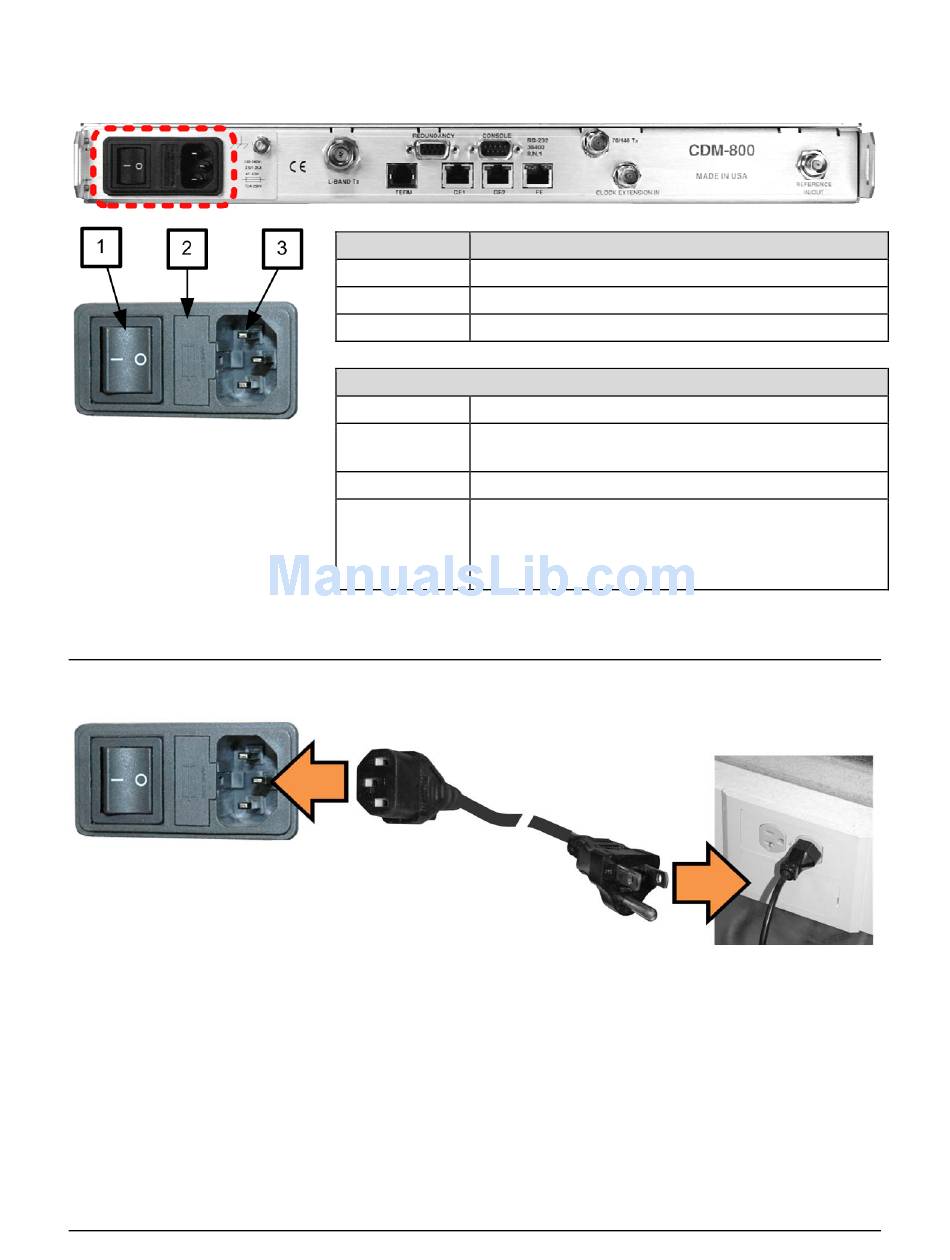

Figure 3-5. CDM-800 AC Power Interface

Figure 3-6. Applying AC Power to the CDM-800

3–11
Description
On / Off Switch
Press‐fit Fuse Holder
IEC Three‐prong Connector
AC Power Specifications
40W maximum, 20W typical
100V to 240V AC, +6%/‐10%, autosensing
(total absolute max. range is 90V to 254V AC)
IEC
Line and neutral fusing
(2X) 20mm Slow‐blow type fuses:
T2.5A (2.5A) (115V or 230V AC operation without BUC)
T4.5A (4.5A) (115V or 230V AC operation with BUC)
Revision 1
MN-CDM800
