CDM-800 Gateway Router
Ethernet-based Remote Product Management
5.4.4.3
Configuration Pages
Use the nested 'Configuration' pages to configure all unit parameters. Click the Interface, Mod,
ARP, Routing, Compression, or WAN tab to continue.
5.4.4.3.1
Configuration | Interface
Click the FE Mgt, GE‐1, or GE‐2 tab to continue.
5.4.4.3.1.1
Configuration | Interface | FE Mgt
Use this page to configure the rear panel 'FE' 10/100 BaseT Fast Ethernet M&C port.
FE – Management Interface
The acceptable/valid operating ranges for items in this section are provided in parentheses.
•
MAC Address (read‐only) – The MAC Address cannot be changed.
•
IP Address / CIDR Mask (8‐30) – Use this box to enter the IP Address and CIDR (Classless
Inter‐Domain Routing) Subnet Mask.
•
Link Configuration – Use the drop‐down menu to select the line speed and duplex setting
for the CDM‐800 FE interface. The available selections are:
o Auto*
o 100 BaseT / Half Duplex

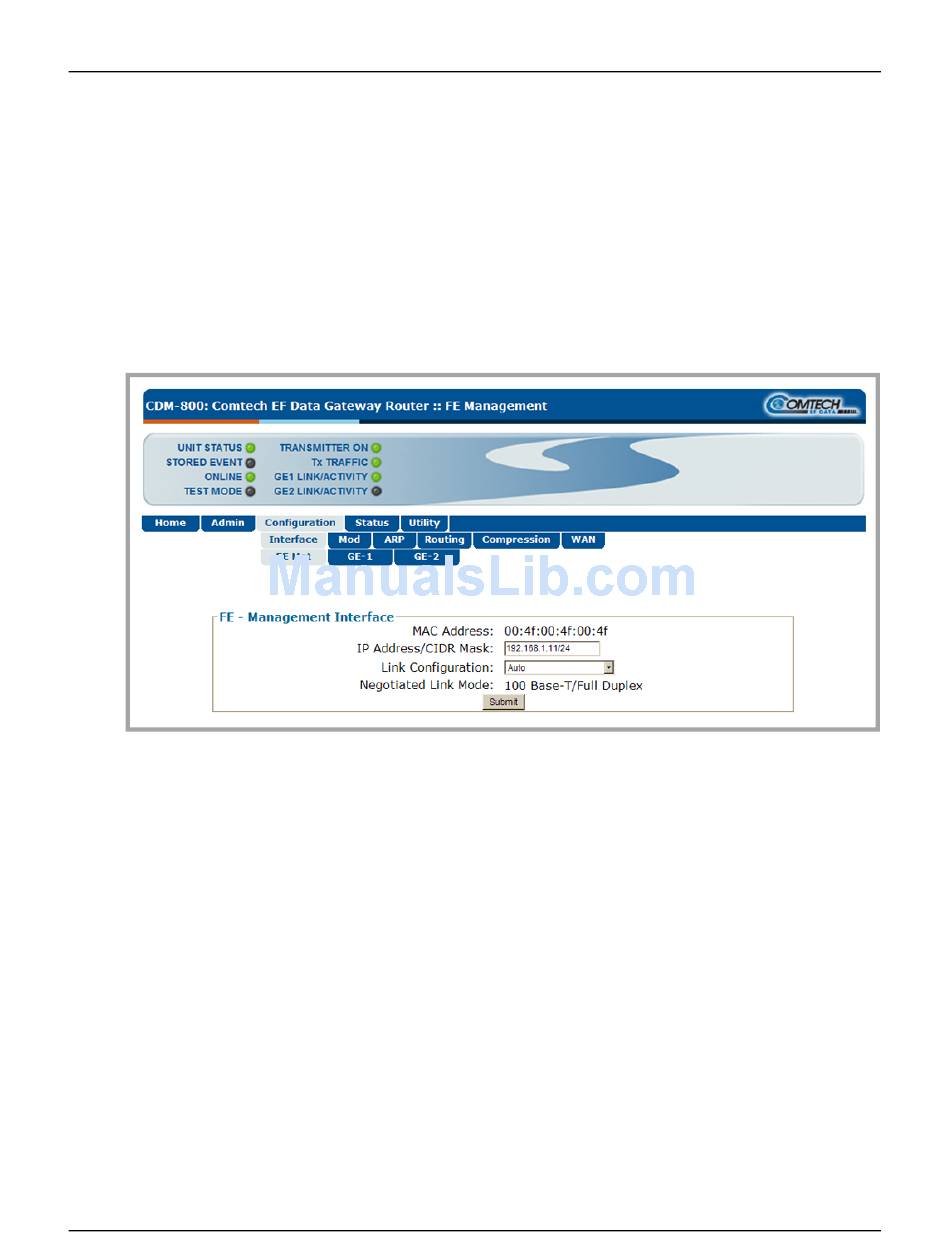

Figure 5‐9. Configuration | Interface | FE Mgt Page
o 100 BaseT / Full Duplex
o 10 BaseT / Half Duplex
5–18
Revision 1
MN-CDM800
o 10 BaseT / Full Duplex
