CDM-800 Gateway Router

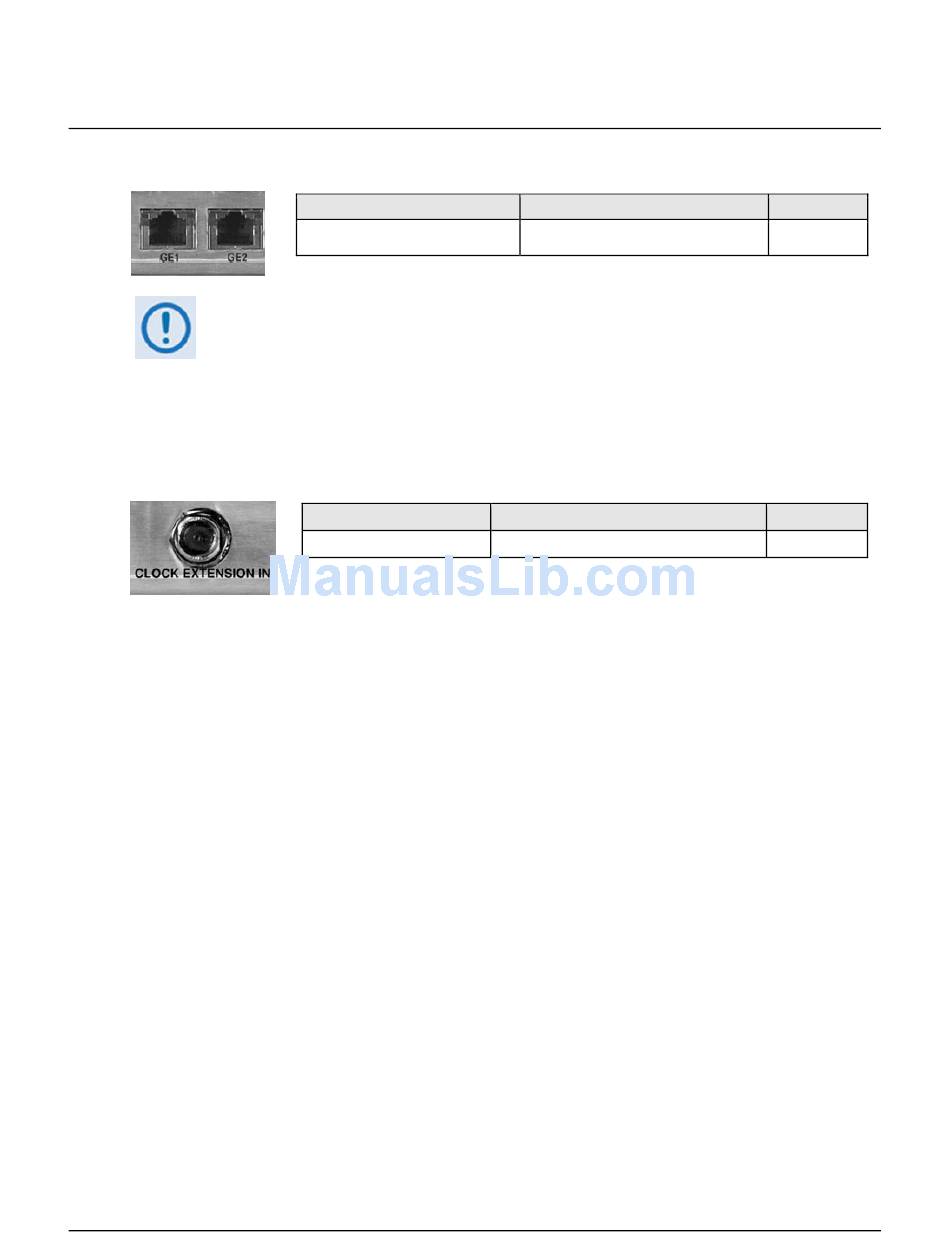

Rear Panel Connections
3.2.2
Terrestrial Data Connector Group
3.2.2.1
'GE1' 'GE2' (Gigabit Ethernet) Connectors
•
•
3.2.3
'CLOCK EXTENSION IN' Connector
Connector Type
RJ‐45 female modular jacks
These interfaces operate at 10/100/1000 Mbps @ full duplex (10/100 Mbps @
half duplex), auto‐negotiating.
The typical maximum Ethernet packet size is 1522 bytes (including Ethernet
headers and CRC).
Connector Type
BNC
Name
GE1, GE2
Name
Clock Extension In
3–7
Revision 1
MN-CDM800
Direction
In/Out
Direction
In
