CDM-800 Gateway Router
Rear Panel Connections
3.3.3.2
DC Operation – Replacing Fuses
DISCONNECT THE POWER SUPPLY BEFORE PROCEEDING!
The fuses are contained within individual screw‐in receptacles located below the terminal blocks
(Figure 3‐10).
To replace the fuses:
•
First, unscrew either fuse holder from its receptacle. Then, remove and replace the
fuse:
o Use T3A (3 Amp) fuses for standard operation
o Use T5A (5 Amp) fuses when a Block Upconverter (BUC) is installed.
•
Screw either fuse holder back into its receptacle.

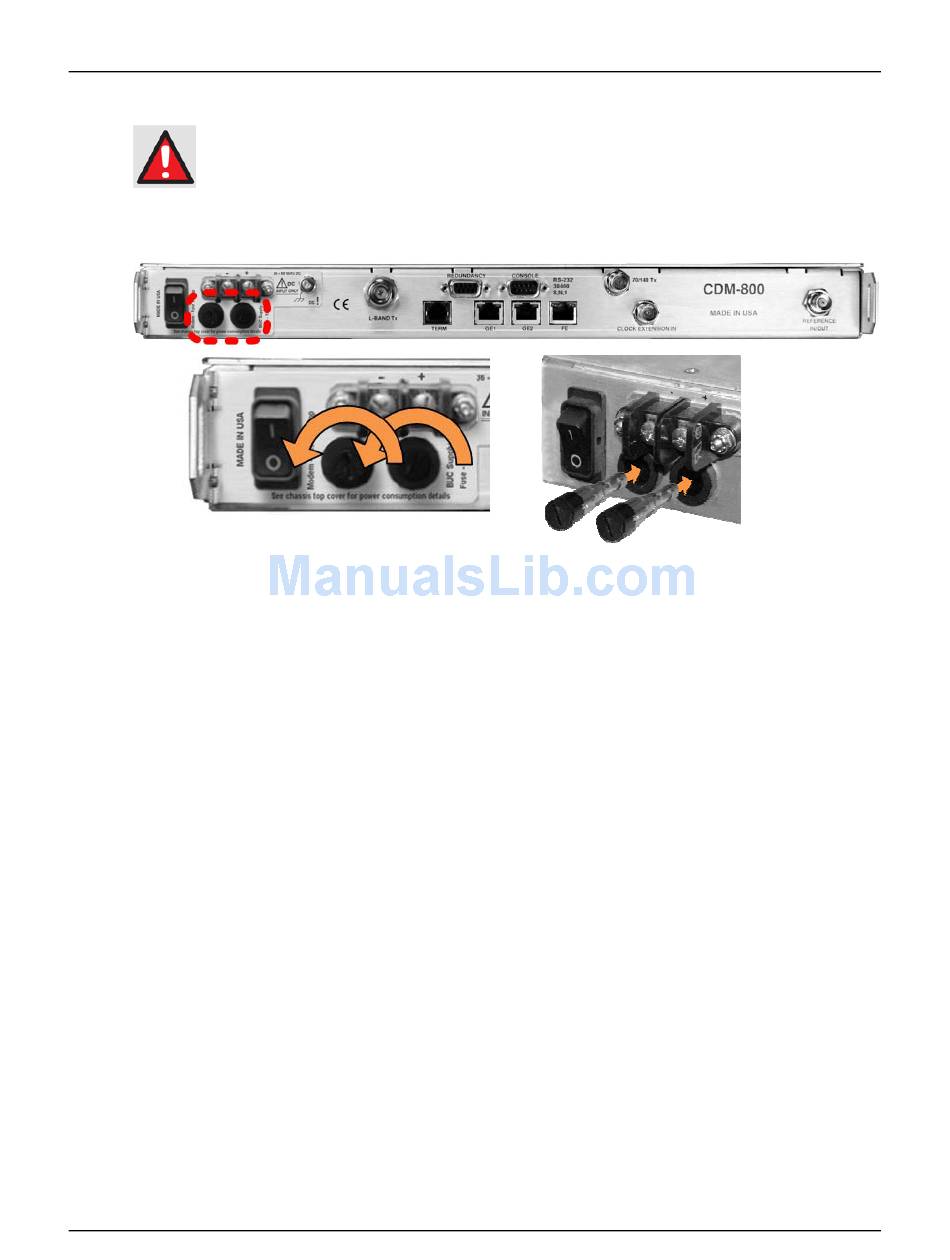

Figure 3-10. Replacing CDM-800 DC Fuses
3–14
Revision 1
MN-CDM800
