CDM-800 Gateway Router
Installation
Mount the CDM‐800 in its assigned position in the rack enclosure. Use, as required:
•
A standard rack‐mounted shelf;
•
User‐supplied screws to secure the front panel to the rack enclosure threaded front
mounting rails;
•
Comtech EF Data's optional
Support Brackets Kit

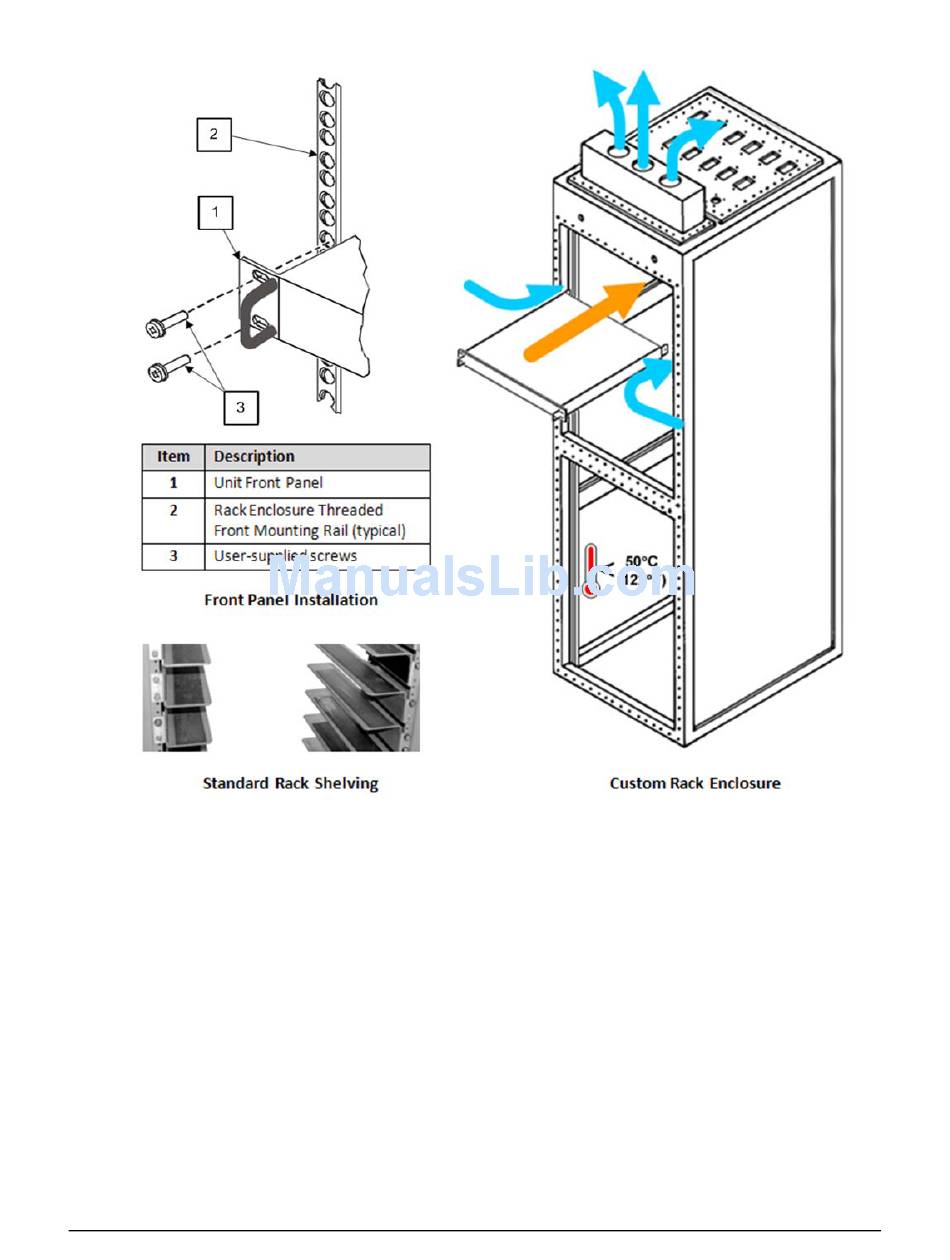

Figure 2-2. Installation into a Rack Enclosure
KT/6228‐2 (4") or KT/6228‐3 (10") Rear‐Mounting
.
2–3
Revision 1
MN-CDM800
