CDM-800 Gateway Router
Ethernet-based Remote Product Management
5.4.4.4.1.5 Status | Statistics | VCM (Variable Coding and Modulation)
VCM allows different MODCODs for different users and applications sharing a common
outbound. The MODCODs are statically assigned based on link budget. Use this page to view
read‐only cumulative VCM statistics.
Clear Counters
Click [Clear] to clear all VCM statistics from the buffer.
VCM Statistics
From left to right:
Column
Max MODCOD
Frames Sent (frames)

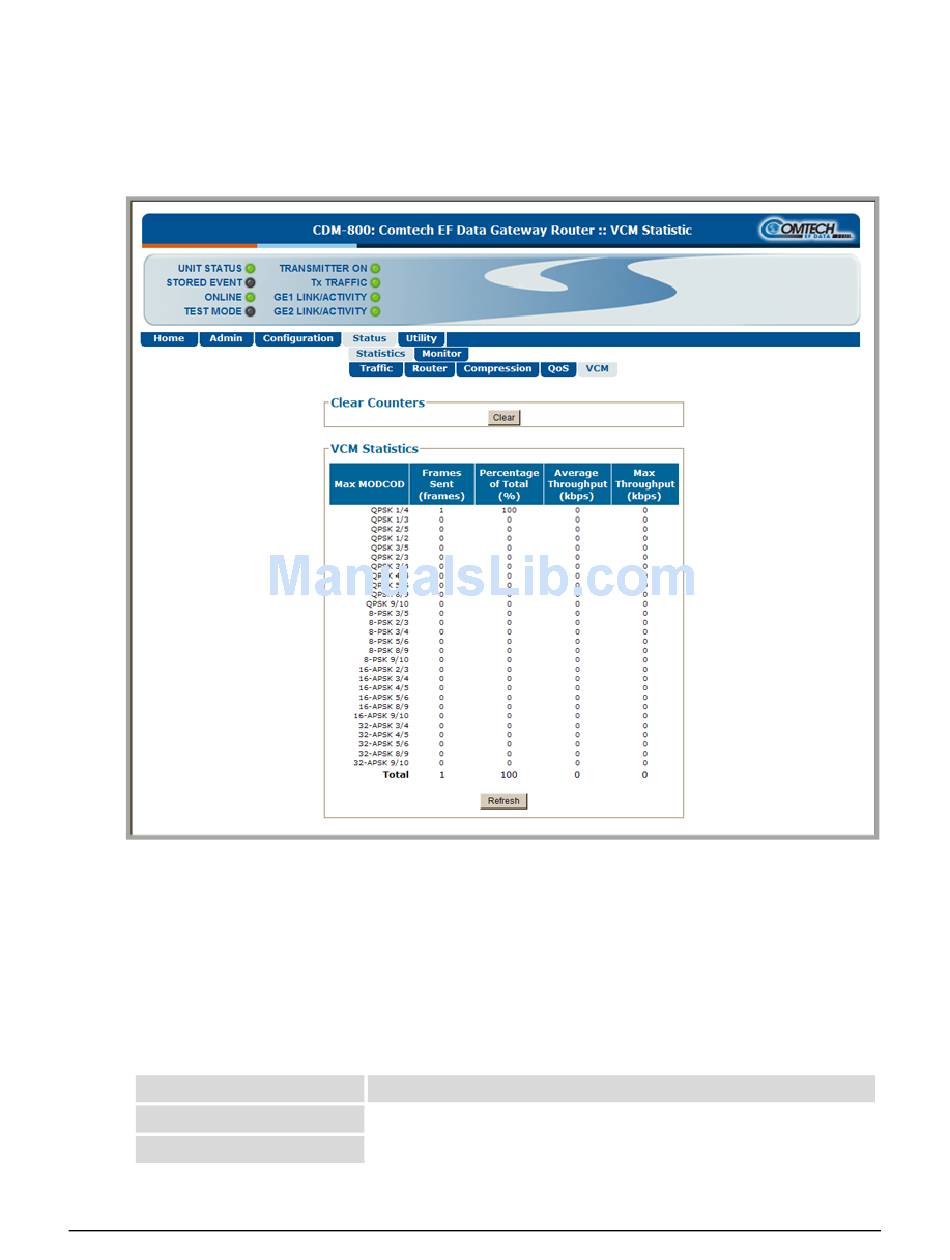

Figure 5‐21. Status | Statistics | VCM page
Description
MODCOD.
Number of DVB-S2 base band frames transmitted for this MODCOD.
5–41
Revision 1
MN-CDM800
